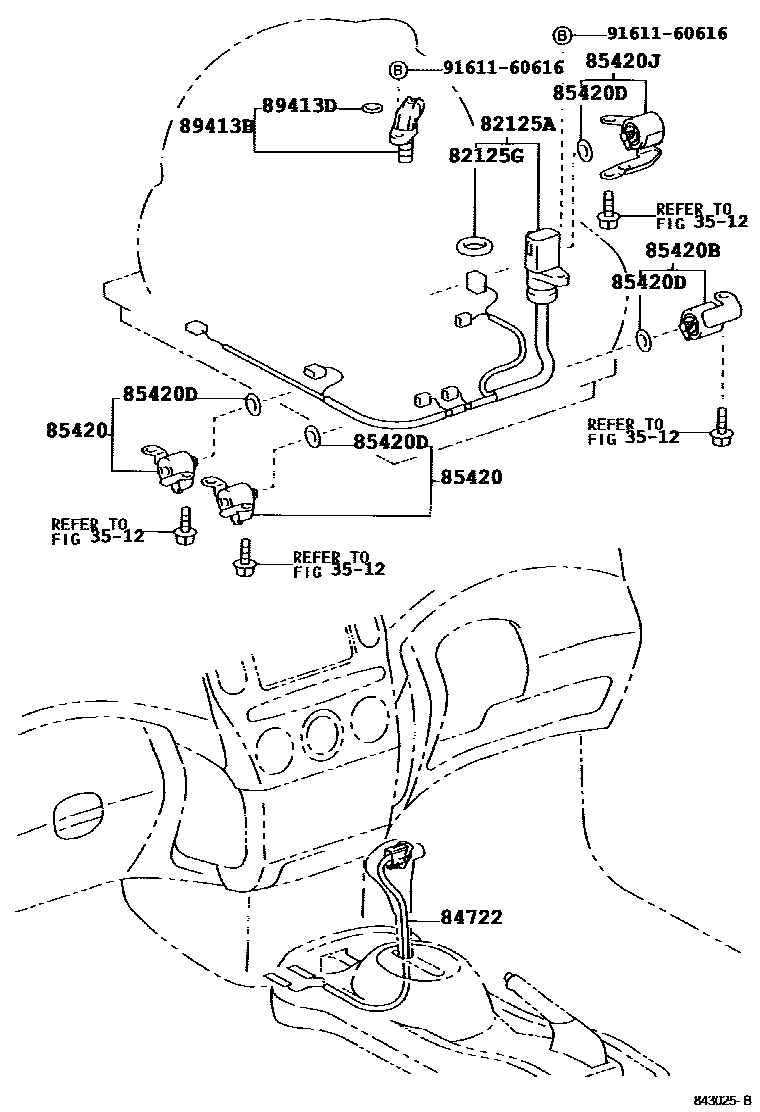

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-52020iNCP20..ATM199908-200211

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNCP20..ATM199908-200211

84722SWITCH, TRANSMISSION CONTROL

main84722-52010-B0iNCP20..RHD..4FC199908-200211

BLUE GLAY,TRIM9#

main84722-52010-G0iNCP20..RHD..4FC199908-200211

MIST GREEN,TRIM7#

main84722-52020-B0iNCP20..LHD..4FC199908-200211

BLUE GLAY,TRIM9#

main84722-52020-G0iNCP20..LHD..4FC199908-200211

MIST GREEN,TRIM7#

main84722-52040-B3iNCP20..LHD..4FC200211-200509

DK.GRAY,TRIM1#

main84722-52070-B2iNCP20..RHD..4FC200211-200509

DK.GRAY,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main35250-52020×2iNCP20..ATM200112-200211

main85420-52010×2iNCP20..ATM199908-200112

DENSO

main85420-52020×2iNCP20..ATM199908-200112

AISIN

85420BSOLENOID ASSY, TRANSMISSION

main35250-52050iNCP20..ATM200112-200211

main85420-52030iNCP20..ATM199908-200112

DENSO

main85420-52040iNCP20..ATM199908-200112

AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×4iNCP20..ATM199908-200211

85420JSOLENOID ASSY, TRANSMISSION

main35250-52060iNCP20..ATM200112-200211

DENSO

main35250-52070iNCP20..ATM200112-200211

AISIN

main85420-52050iNCP20..ATM199908-200112

DENSO

main85420-52060iNCP20..ATM199908-200112

AISIN

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iNCP20..ATM199908-200211

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNCP20..ATM199908-200211

9161160616

main91611-60616

11 parts on this diagram · 6 diagrams in section
