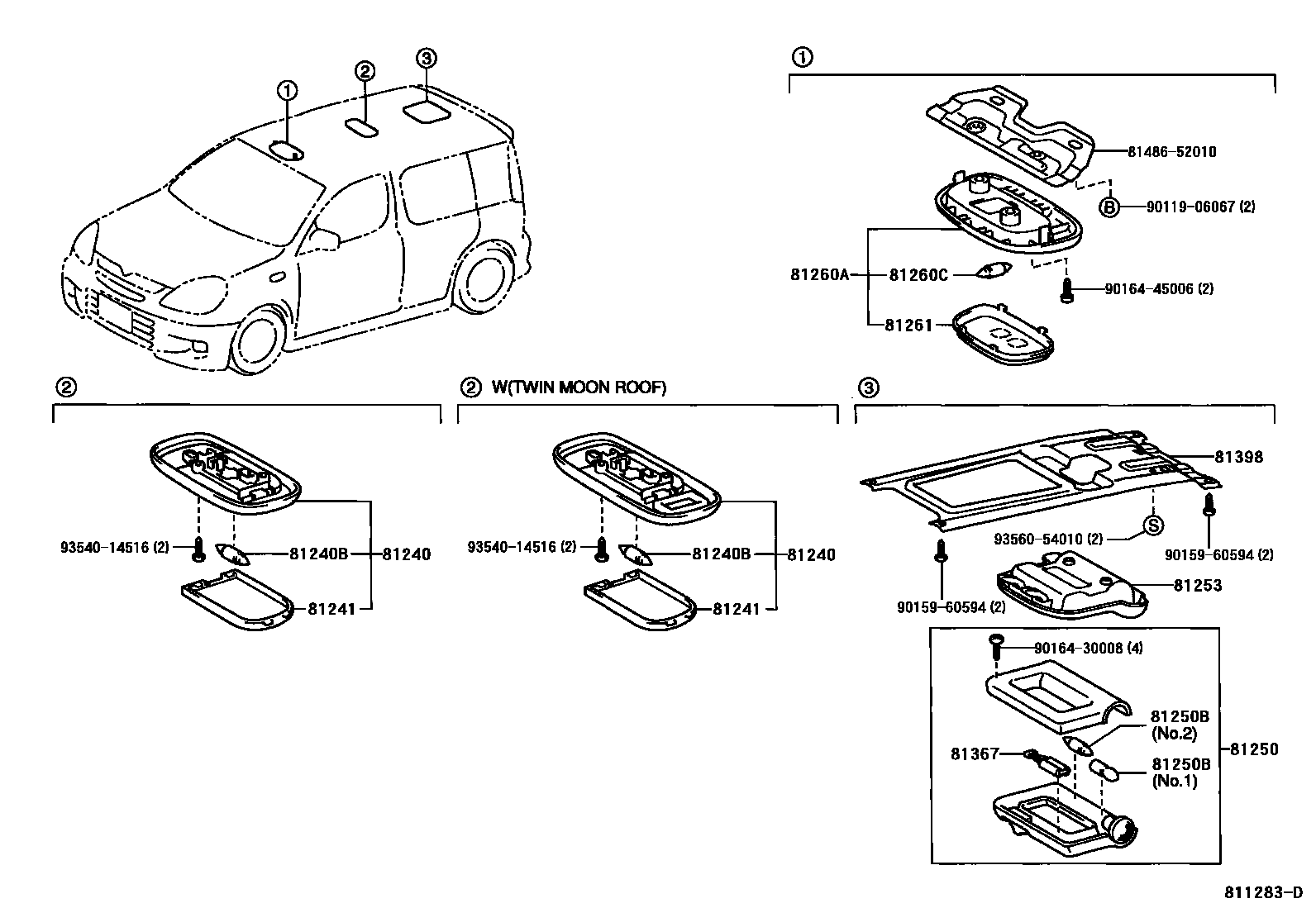

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iNCP2#,NLP2#199908-200211

LT.GRAY,TRIM7#,9#

main81240-52010-B0iNCP20,21,NLP20199908-200211

W(TWIN MOON ROOF),LT.GRAY,TRIM7#,9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP2#,NLP2#199908-200211

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP2#,NLP2#200211-200509

main81241-44010iNCP20,21,NLP20199908-200211

W(TWIN MOON ROOF)

81250LAMP ASSY, ROOM, NO.2

main81250-52020-B0iNCP2#,NLP2#..4FC,5F199908-200211

LT.GRAY,TRIM7#,9#

main81250-52021-B0iNCP2#,NLP2#200410-200509

LT.GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main90981-12029iNCP2#,NLP2#199908-200211

2.5V 0.5A,NO.1

main90981-12033iNCP2#,NLP2#200410-200509

2.5V 0.5A,NO.1

main90981-14002iNCP2#,NLP2#200211-200509

12V 5W,NO.2

81253BODY, REAR ROOM LAMP

main81253-52010-B0iNCP2#,NLP2#199908-200211

LT.GRAY,TRIM7#,9#

81260ALAMP ASSY, MAP

main81260-46010-B2iNCP2#,NLP2#199908-200211

LT.GRAY,TRIM7#,9#

81260CBULB(FOR MAP LAMP)

main90981-14004iNCP2#,NLP2#199908-200211

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-46010iNCP2#,NLP2#199908-200211

81367BATTERY, ROOM LAMP

main81367-52020iNCP2#,NLP2#199908-200211

81398BRACKET, REAR LOOM LAMP

main81398-52010iNCP2#,NLP2#199908-200203

main81398-52011iNCP2#,NLP2#200203-200206

main81398-52012iNCP2#,NLP2#200206-200211

8148652010RETAINER, MAP LAMP

main81486-52010

9011906067

main90119-06067

9015960594

main90159-60594

9016430008

main90164-30008

9016445006

main90164-45006

9354014516

main93540-14516

9356054010

main93560-54010

18 parts on this diagram · 1 diagram in section
