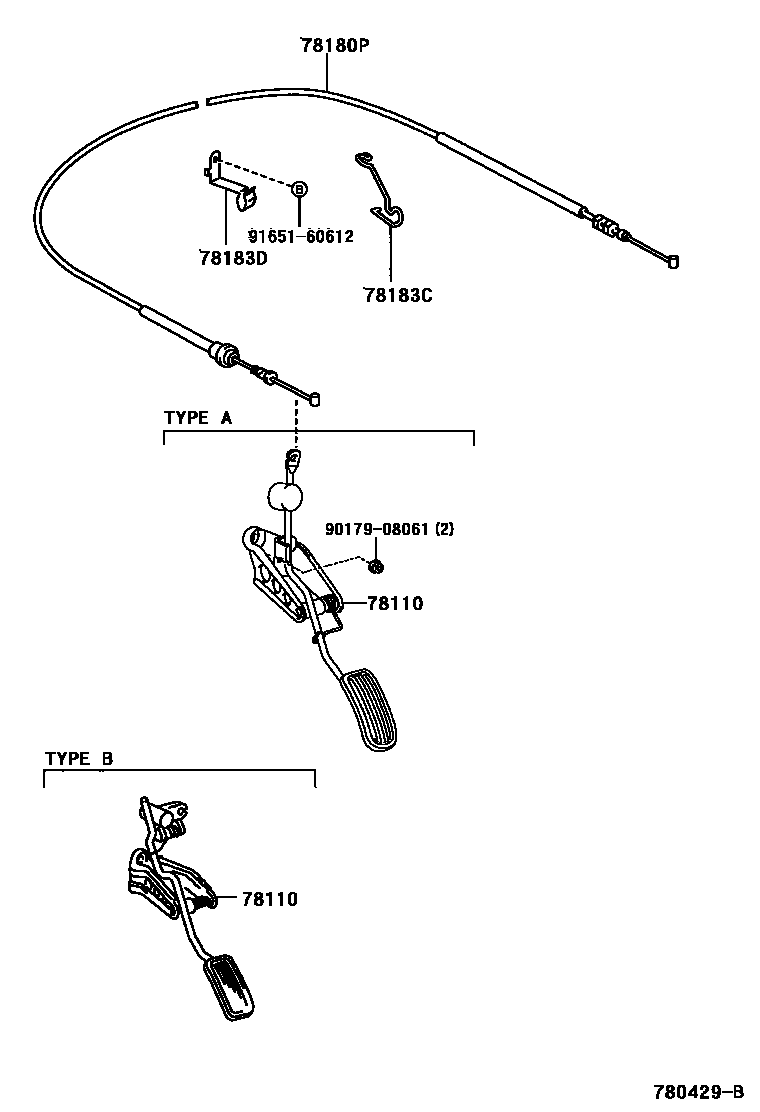

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iNCP2#..RHD199908-200211

main78120-52060iNCP2#..LHD200211-200509

TYPE A:REFER TO ILLUSTRATION

main78120-52070iNCP20..LHD..4FC199908-200211

TYPE B:REFER TO ILLUSTRATION

main78120-52110iNCP2#..RHD200403-200509

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52010iNCP2#..LHD199908-200211

main78180-52030iNCP2#..RHD200211-200509

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52060iNCP2#..LHD199908-200110

main78183-52070iNCP2#..RHD199908-200211

main78183-52140iNCP2#..LHD200110-200211

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52030iNCP2#199908-200109

main78183-52120iNCP2#200109-200211

9017908061

main90179-08061

9165160612

main91651-60612

6 parts on this diagram · 4 diagrams in section
