ARMREST & VISOR

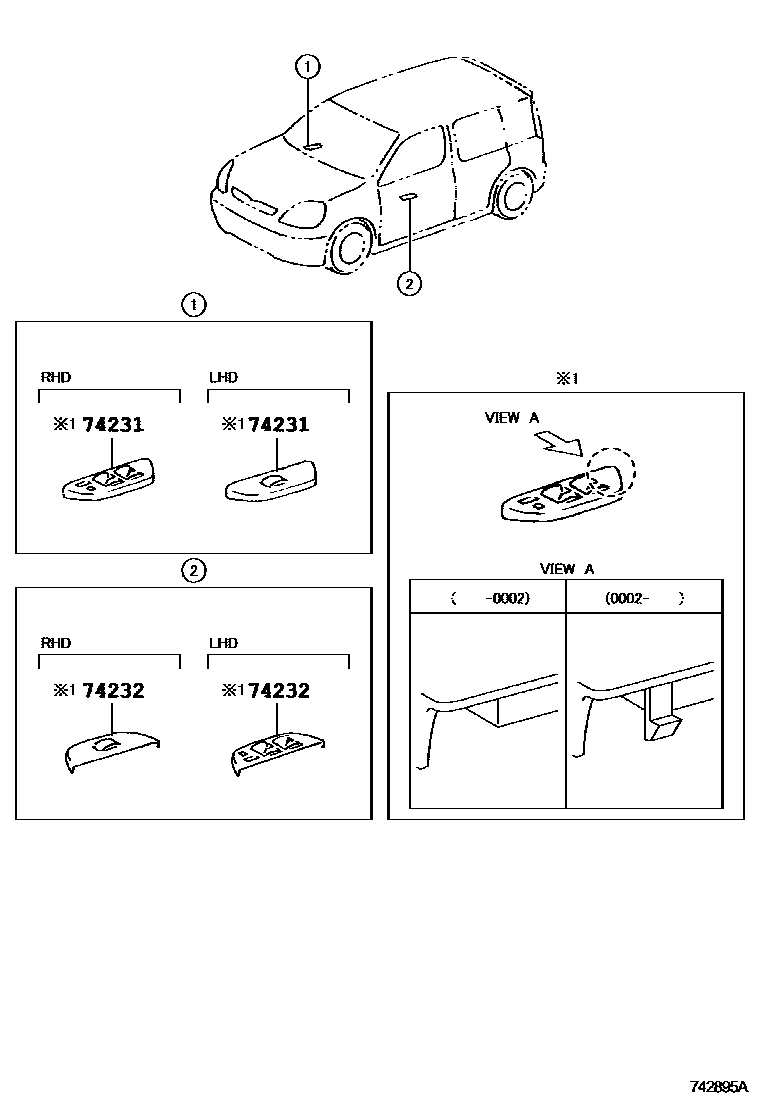

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-52040-B1i199908-200002
W(POWER WINDOW---FRONT ONLY),MD.GRAY,TRIM9#
main74231-52040-G0i199908-200002
W(POWER WINDOW---FRONT ONLY),MIST GREEN,TRIM7#
main74231-52050-B1i199908-200002
W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM9#
main74231-52050-G0i199908-200002
W(POWER WINDOW---FRONT & REAR),MIST GREEN,TRIM7#
main74231-52060-B1i199908-200002
MD.GRAY,TRIM9#
main74231-52060-G0i199908-200002
MIST GREEN,TRIM7#
main74231-52110-B0i200002-200211
W(POWER WINDOW---FRONT ONLY),MD.GRAY,TRIM9#
main74231-52110-B1i200211-200509
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74231-52110-G0i200002-200211
W(POWER WINDOW---FRONT ONLY),MIST GREEN,TRIM7#
main74231-52120-B0i200008-200211
MD.GRAY,TRIM9#
main74231-52120-B1i200211-200509
DK.GRAY,TRIM1#; W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74231-52120-G0i200008-200211
MIST GREEN,TRIM7#
main74231-52130-B0i200002-200211
MD.GRAY,TRIM9#
main74231-52130-B1i200211-200509
DK.GRAY,TRIM1#
main74231-52130-G0i200002-200211
MIST GREEN,TRIM7#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-52040-B1i199908-200002
W(POWER WINDOW---FRONT ONLY),MD.GRAY,TRIM9#
main74232-52040-G0i199908-200002
W(POWER WINDOW---FRONT ONLY),MIST GREEN,TRIM7#
main74232-52050-B1i199908-200002
W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM9#
main74232-52050-G0i199908-200002
W(POWER WINDOW---FRONT & REAR),MIST GREEN,TRIM7#
main74232-52060-B1i199908-200002
MD.GRAY,TRIM9#
main74232-52060-G0i199908-200002
MIST GREEN,TRIM7#
main74232-52070-B0i200002-200211
W(POWER WINDOW---FRONT ONLY),MD.GRAY,TRIM9#
main74232-52070-B1i200211-200509
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74232-52070-G0i200002-200211
W(POWER WINDOW---FRONT ONLY),MIST GREEN,TRIM7#
main74232-52100-B0i200002-200211
W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM9#
main74232-52100-B1i200211-200509
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74232-52100-G0i200002-200211
W(POWER WINDOW---FRONT & REAR),MIST GREEN,TRIM7#
main74232-52110-B0i200002-200211
MD.GRAY,TRIM9#
main74232-52110-B1i200211-200509
DK.GRAY,TRIM1#
main74232-52110-G0i200002-200211
MIST GREEN,TRIM7#

2 parts on this diagram · 2 diagrams in section
