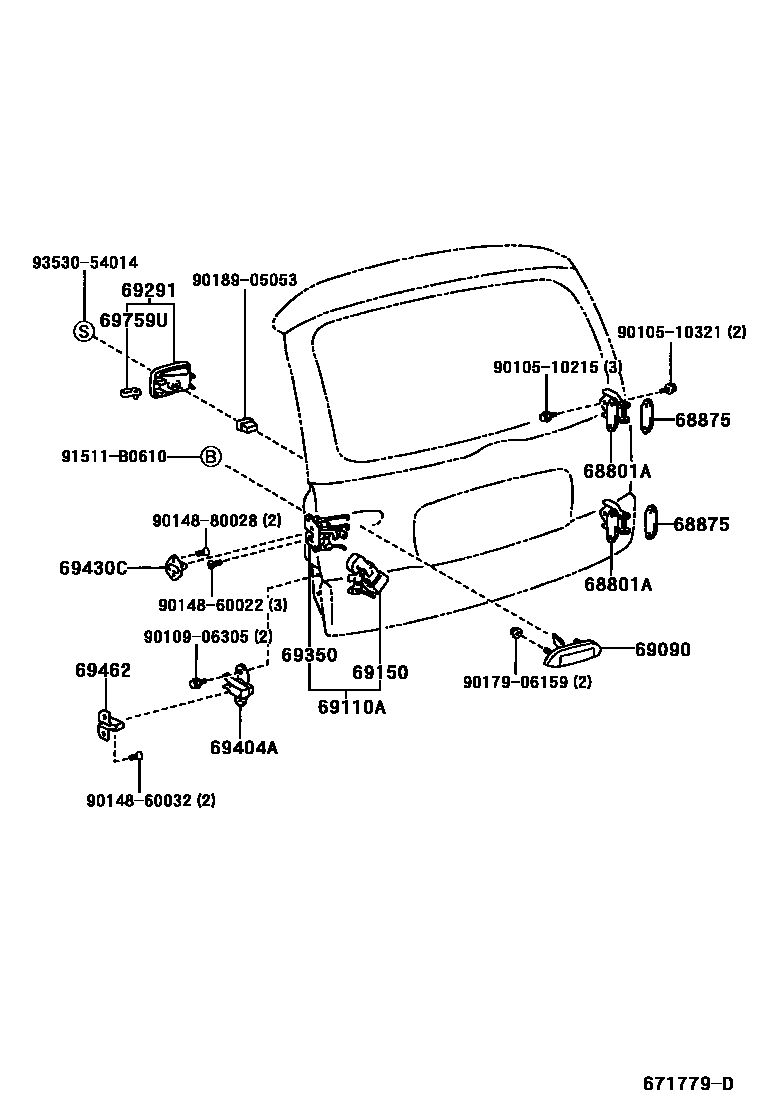

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52030×2iNCP2#,NLP2#200211-200509

68875SPACER, BACK DOOR UPPER HINGE

main68875-52010×2iNCP2#,NLP2#200211-200509

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-52020iNCP2#,NLP2#..LUNA,STD200211-200509

UNPAINTED

main69090-52030-A0iNCP2#199908-200108

SUPER WHITE 2,040

main69090-52030-A1iNCP2#,NLP2#200211-200509

WHITE,068

main69090-52030-B0iNCP2#,NLP2#199908-200211

SILVER ME,199

main69090-52030-B1iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

main69090-52030-B2iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

main69090-52030-C0iNCP2#,NLP2#200211-200509

BLACK MC.,209

main69090-52030-D0iNCP2#,NLP2#199908-200211

RED M.M.,3N8

main69090-52030-D1iNCP2#,NLP2#200211-200509

SUPER RED 5,3P0

main69090-52030-F1iNCP2#,NLP2#199908-200211

CHAMPAGNE ME.,583

main69090-52030-G0iNCP2#,NLP2#200211-200509

DK.GREEN MC.,6R4

main69090-52030-G1iNCP2#,NLP2#199908-200211

GREEN PM.,6S2

main69090-52030-H1iNCP2#,NLP2#200211-200509

AQUA M.M.,774

main69090-52030-J0iNCP2#,NLP2#199908-200211

BLUE MC.,8M6

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-52040iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

main69110-52050iNCP20..RHD199908-199910

W(POWER DOOR LOCK & DOUBLE LOCK)

main69110-52051iNCP2#,NLP2#..RHD..(4FC,5F)199910-200211

W(POWER DOOR LOCK & DOUBLE LOCK)

main69110-52110iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69110-52120iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(POWER DOOR LOCK & DOUBLE LOCK)

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-52020iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69150-52030iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(POWER DOOR LOCK & DOUBLE LOCK)

69291HANDLE ASSY, BACK DOOR INSIDE

main69209-60030-B1iNCP2#,NLP2#199908-200211

MD.GRAY,TRIM9#

main69209-60030-B2iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

main69209-60030-G0iNCP2#,NLP2#199908-200211

MIST GREEN,TRIM7#

69350LOCK ASSY, BACK DOOR

main69350-52030iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

main69350-52050iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

main69350-52060iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(POWER DOOR LOCK & DOUBLE LOCK)

main69350-52200iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200212

main69350-52210iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69350-52220iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(POWER DOOR LOCK & DOUBLE LOCK)

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-46010iNCP2#,NLP2#199908-200211

69430CSTRIKER ASSY, BACK DOOR LOCK

main69410-52010iNCP2#,NLP2#199908-200211

69462STOPPER, BACK DOOR SIDE MALE, LH

main69461-46010iNCP2#,NLP2#199908-200211

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-24070×2iNCP2#,NLP2#199908-200211

9010510215

main90105-10215

9010510321

main90105-10321

9010906305

main90109-06305

9014860022

main90148-60022

9014860032

main90148-60032

9014880028

main90148-80028

9017906159

main90179-06159

9018905053

main90189-05053

91511B0610

main91511-B0610

9353054014

main93530-54014

21 parts on this diagram · 1 diagram in section
