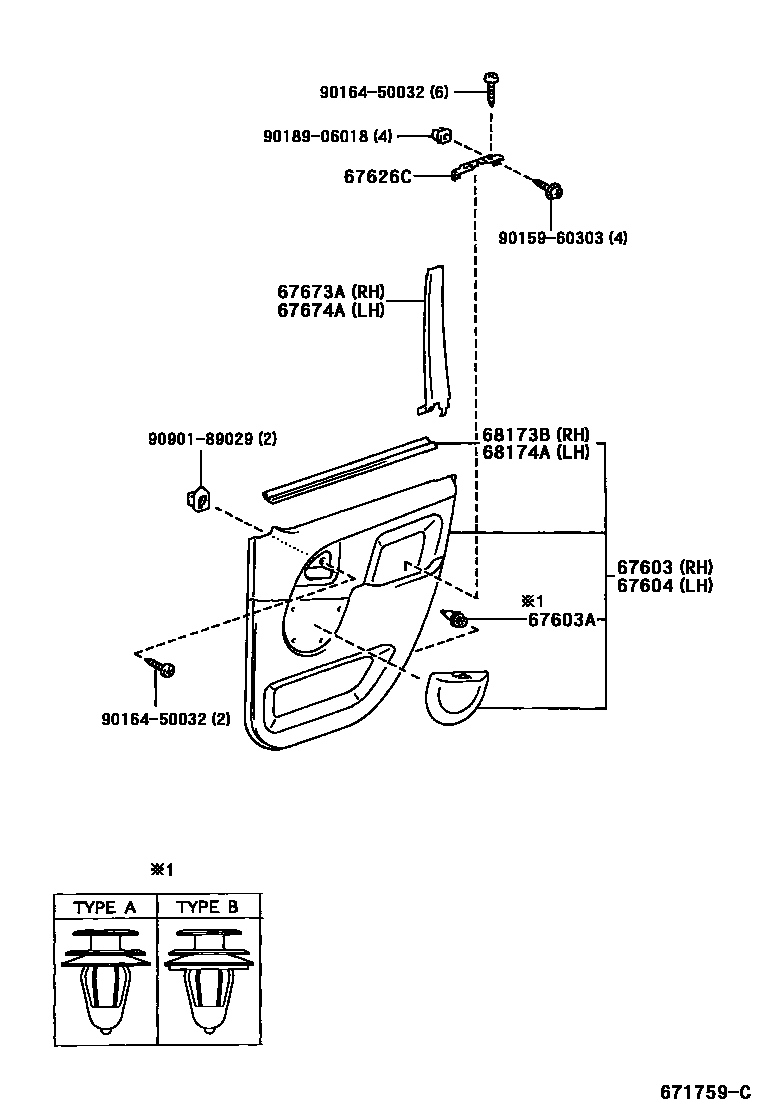

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE A OR TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A OR TYPE C-*104,SHDOW GRAY,TRIM9#
W(POWER WINDOW),DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
W(POWER WINDOW),DARK GRAY,TRIM1#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE A OR TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A OR TYPE C-*104,SHDOW GRAY,TRIM9#
W(POWER WINDOW),DK.GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
W(POWER WINDOW),DARK GRAY,TRIM1#
67626CBRACKET, REAR DOOR TRIM, NO.2
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
9015960303
main90159-60303
9016450032
main90164-50032
9018906018
main90189-06018
9090189029
main90901-89029
12 parts on this diagram · 3 diagrams in section
