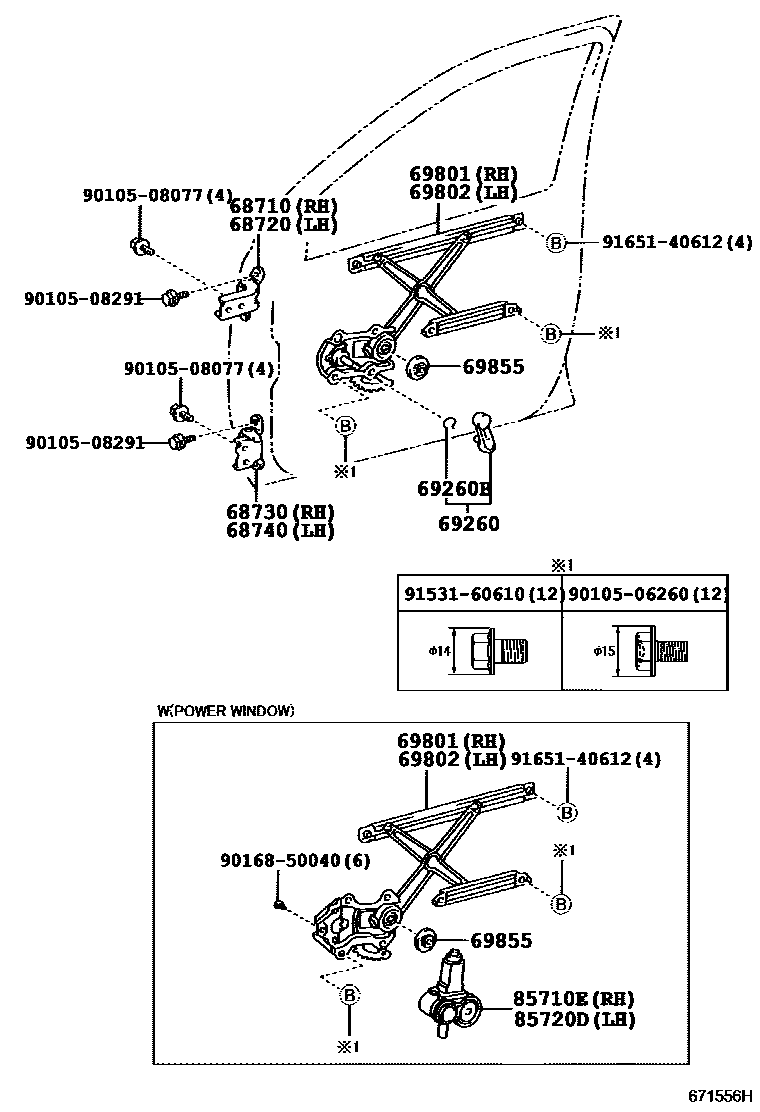

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iNCP2#,NLP2#199908-200211

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010iNCP2#,NLP2#199908-200211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iNCP2#,NLP2#199908-200211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iNCP2#,NLP2#199908-200211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52050-B0×2iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

MD.CHARCOAL,TRIM9#

main69260-52050-B2×2iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200212

DK.GRAY,TRIM1#

main69260-52050-G0×2iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

FRENCH TURQUOISE,TRIM7#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52020iNCP2#,NLP2#199908-200211

W(POWER WINDOW)

main69810-52040iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52020iNCP2#,NLP2#200211-200509

W(POWER WINDOW)

main69820-52030iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200212

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iNCP2#,NLP2#200211-200509

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52010iNCP2#,NLP2#..RHD199908-200211

main85710-52030iNCP2#,NLP2#..LHD200211-200509

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52020iNCP2#,NLP2#..RHD199908-200211

main85720-52040iNCP2#,NLP2#..LHD200211-200509

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9153160610

main91531-60610

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
