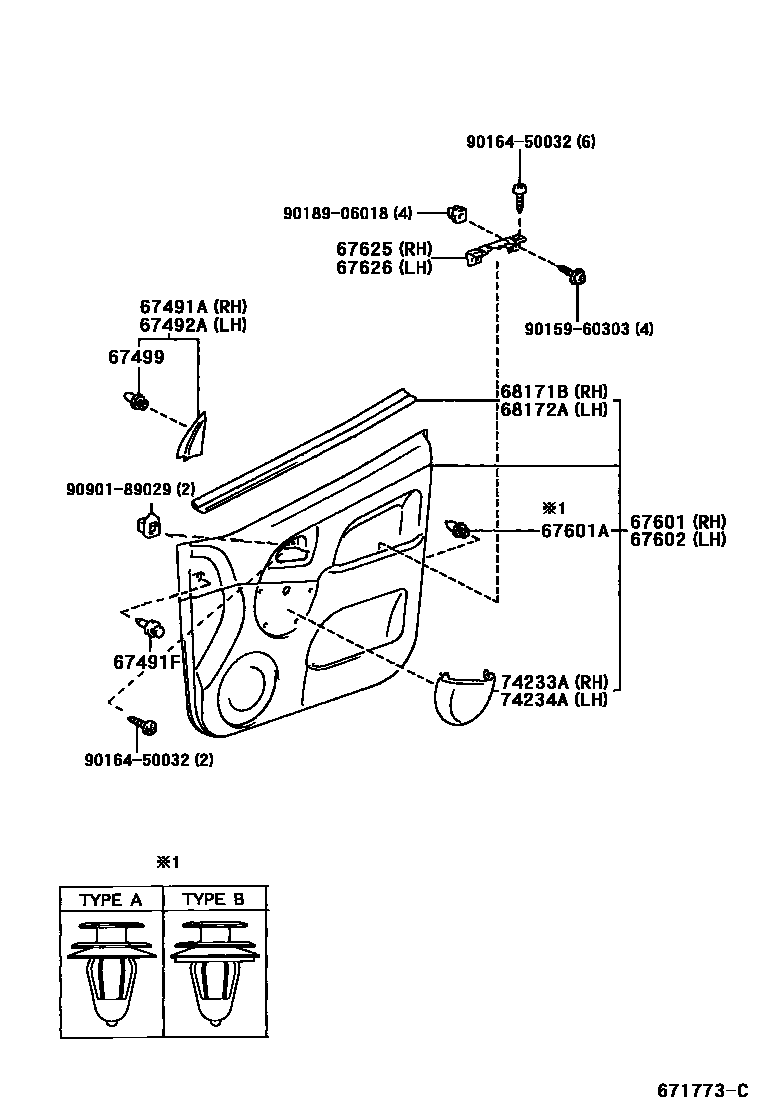

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491FCLIP(FOR DOOR TRIM)
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM9#
W(POWER WINDOW),DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC) & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
W(POWER WINDOW),DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DOOR TRIM=TYPE A OR TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A OR TYPE C-*104,SHDOW GRAY,TRIM9#
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),SHDOW GRAY,TRIM9#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM9#
W(POWER WINDOW),DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC) & W(POWER WINDOW),SHADOW GRAY,TRIM9#
DARK GRAY,TRIM1#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE A-*104 & W/O(FABRIC),SHADOW GRAY,TRIM9#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9#
W(POWER WINDOW),DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104,SHDOW GRAY,TRIM9#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7#
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),SHDOW GRAY,TRIM9#
67625BRACKET, FRONT DOOR TRIM, RH
67626BRACKET, FRONT DOOR TRIM, LH
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
MD.GRAY,TRIM9#
DK.GRAY,TRIM1#
MIST GREEN,TRIM7#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
MD.GRAY,TRIM9#
DK.GRAY,TRIM1#
MIST GREEN,TRIM7#
9015960303
main90159-60303
9016450032
main90164-50032
9018906018
main90189-06018
9090189029
main90901-89029
17 parts on this diagram · 3 diagrams in section
