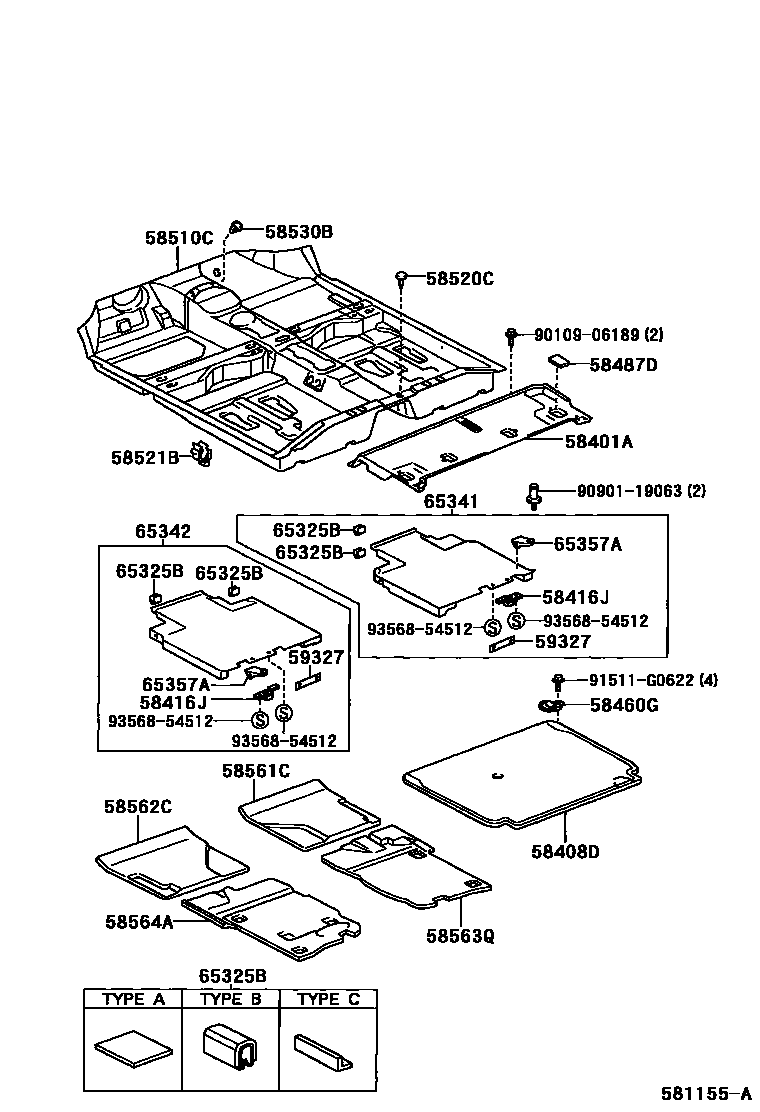

MAT & CARPET

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-52010-B1iNCP20,21,NLP20199908-200211

GRAY,TRIM9#

main58401-52010-B2iNCP20,21,NLP20200211-200509

DK.GRAY,TRIM1#

main58401-52010-H1iNCP20,21,NLP20199908-200211

TORQUOISE,TRIM7#

58408DBOARD SUB-ASSY, DECK, NO.2

main58408-52010-B1iNCP20,21,NLP20199908-200211

GRAY,TRIM9#

main58408-52010-B2iNCP20,21,NLP20200211-200509

DK.GRAY,TRIM1#

main58408-52010-H1iNCP20,21,NLP20199908-200211

TORQUOISE,TRIM7#

58416JBRACKET, DECK BOARD, NO.1

main58416-52010×2iNCP20,21,NLP20200211-200509

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-52020×4iNCP2#,NLP2#200211-200509

58487DCAP, DECK BOARD SERVICE HOLE

main58487-52010-B0×4iNCP20,21,NLP20199908-200211

SHADOW GRAY,TRIM9#

main58487-52010-B1×4iNCP20,21,NLP20200211-200509

DK.GRAY,TRIM1#

main58487-52010-H0×4iNCP20,21,NLP20199908-200211

FRENCH TURQUOISE,TRIM7#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52410-B0iNCP20,21..RHD199908-200005

GRAY,TRIM9#

main58510-52410-H0iNCP20,21..RHD199908-200005

TORQUOISE,TRIM7#

main58510-52411-B0iNCP20,21..RHD..(4FC,5F)200005-200101

GRAY,TRIM9#

main58510-52411-H0iNCP20,21..RHD..(4FC,5F)200005-200101

TORQUOISE,TRIM7#

main58510-52412-B0iNCP20,21,NLP20..RHD..(4FC,5F)200101-200211

GRAY,TRIM9#

main58510-52412-H0iNCP20,21,NLP20..RHD..(4FC,5F)200101-200211

TORQUOISE,TRIM7#

main58510-52413-B1iNCP20,21,NLP20..RHD..(4FC,5F)200211-200509

GRAY,TRIM1#

main58510-52460-B0iNCP20,21..LHD199908-200005

GRAY,TRIM9#

main58510-52460-H0iNCP20,21..LHD199908-200005

TORQUOISE,TRIM7#

main58510-52461-B0iNCP20,21..LHD200005-200101

GRAY,TRIM9#

main58510-52461-H0iNCP20,21..LHD200005-200101

TORQUOISE,TRIM7#

main58510-52462-B0iNCP20,21,NLP20..LHD200101-200211

GRAY,TRIM9#

main58510-52462-H0iNCP20,21,NLP20..LHD200101-200211

TORQUOISE,TRIM7#

main58510-52464-B1iNCP20,21,NLP20..LHD200211-200509

GRAY,TRIM1#

main58510-52470-B0iNCP20,21..LHD199910-200005

W(REAR HEATER DUCT),GRAY,TRIM9#

main58510-52470-H0iNCP20,21..LHD199910-200005

W(REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52471-B0iNCP20,21..LHD200005-200101

W(REAR HEATER DUCT),GRAY,TRIM9#

main58510-52471-H0iNCP20,21..LHD200005-200101

W(REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52472-B0iNCP20,21,NLP20..LHD200101-200211

W(REAR HEATER DUCT),GRAY,TRIM9#

main58510-52472-H0iNCP20,21,NLP20..LHD200101-200211

W(REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52474-B1iNCP20,21,NLP20..LHD200211-200509

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-52560-B0iNCP20..4HC200008-200101

GRAY,TRIM9#

main58510-52560-H0iNCP20..4HC200008-200101

TORQUOISE,TRIM7#

main58510-52561-B0iNCP20..4HC200101-200211

GRAY,TRIM9#

main58510-52561-H0iNCP20..4HC200101-200211

TORQUOISE,TRIM7#

main58510-52562-B1iNCP20..4HC200211-200509

GRAY,TRIM1#

main58510-52640-B0iNCP20..LHD..4FC199908-200005

W(KICK DOWN SWITCH),GRAY,TRIM9#

main58510-52640-H0iNCP20..LHD..4FC199908-200005

W(KICK DOWN SWITCH),TORQUOISE,TRIM7#

main58510-52641-B0iNCP20..LHD..4FC200005-200101

W(KICK DOWN SWITCH),GRAY,TRIM9#

main58510-52641-H0iNCP20..LHD..4FC200005-200101

W(KICK DOWN SWITCH),TORQUOISE,TRIM7#

main58510-52642-B0iNCP20..LHD..4FC200101-200211

W(KICK DOWN SWITCH),GRAY,TRIM9#

main58510-52642-H0iNCP20..LHD..4FC200101-200211

W(KICK DOWN SWITCH),TORQUOISE,TRIM7#

main58510-52644-B1iNCP20..LHD..4FC200211-200509

W(KICK DOWN SWITCH),GRAY,TRIM1#

main58510-52650-B0iNCP20..LHD..4FC199910-200005

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM9#

main58510-52650-H0iNCP20..LHD..4FC199910-200005

W(KICK DOWN SWITCH & REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52651-B0iNCP20..LHD..4FC200005-200101

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM9#

main58510-52651-H0iNCP20..LHD..4FC200005-200101

W(KICK DOWN SWITCH & REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52652-B0iNCP20..LHD..4FC200101-200211

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM9#

main58510-52652-H0iNCP20..LHD..4FC200101-200211

W(KICK DOWN SWITCH & REAR HEATER DUCT),TORQUOISE,TRIM7#

main58510-52654-B1iNCP20..LHD..4FC200211-200509

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM1#

main58510-52660-B0iNCP22..LHD200003-200005

GRAY,TRIM9#

main58510-52660-H0iNCP22..LHD200003-200005

TORQUOISE,TRIM7#

main58510-52661-B0iNCP22..LHD200005-200101

GRAY,TRIM9#

main58510-52661-H0iNCP22..LHD200005-200101

TORQUOISE,TRIM7#

main58510-52662-B0iNCP22,NLP22..LHD200101-200211

GRAY,TRIM9#

main58510-52662-H0iNCP22,NLP22..LHD200101-200211

TORQUOISE,TRIM7#

main58510-52664-B1iNCP22,NLP22..LHD200211-200509

GRAY,TRIM1#

main58510-52670-B0iNCP22..RHD200003-200005

GRAY,TRIM9#

main58510-52670-H0iNCP22..RHD200003-200005

TORQUOISE,TRIM7#

main58510-52671-B0iNCP22..RHD200005-200101

GRAY,TRIM9#

main58510-52671-H0iNCP22..RHD200005-200101

TORQUOISE,TRIM7#

main58510-52672-B0iNCP22,NLP22..RHD200101-200211

GRAY,TRIM9#

main58510-52672-H0iNCP22,NLP22..RHD200101-200211

TORQUOISE,TRIM7#

main58510-52673-B1iNCP22,NLP22..RHD200211-200509

GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P0iNCP20199908-199910

GRAY,TRIM7#,9#

main90467-07049-B7iNCP2#,NLP2#..4FC,5F; NCP20..4HC200211-200509

DK.GRAY,TRIM1#

main90467-07049-P0iNCP2#,NLP2#..4FC,5F199910-200211

SHADOW GRAY,TRIM7#,9#

58521BHOOK, FLOOR CARPET

main58521-52010×4iNCP2#,NLP2#199908-200211

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-10091iNCP2#,NLP2#199908-200211

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52050iNCP2#,NLP2#199908-200211

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52050iNCP2#,NLP2#199908-200211

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52030iNCP2#,NLP2#200211-200509

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52020iNCP2#,NLP2#200211-200509

59327BELT, FLOOR COVER

main59327-32010×2iNCP20,21,NLP20199908-200211

main59327-32010-A0×2iNCP20,21,NLP20200211-200509

IVORY

65325BPLATE, FLOOR BOARD, FRONT

main65325-52010×14iNCP20199908-199909

TYPE B:REFER TO ILLUSTRATION

main65325-52011×22iNCP20199909-199911

TYPE B:REFER TO ILLUSTRATION

main65325-52012×14iNCP20,21,NLP20200211-200509

TYPE B:REFER ILLUST.

main65325-52020×2iNCP20,21,NLP20200211-200509

TYPE A:REFER ILLUST.

main65325-52030×4iNCP20199908-199909

TYPE C:REFER TO ILLUSTRATION

65341BOARD, FLOOR, NO.1

main65341-52010-B1iNCP20199908-199911

GRAY,TRIM9#

main65341-52010-H1iNCP20199908-199911

TORQUOISE,TRIM7#

main65341-52011-B1iNCP20199911-200001

GRAY,TRIM9#

main65341-52011-H1iNCP20199911-200001

TORQUOISE,TRIM7#

main65341-52012-B1iNCP20,21,NLP20200001-200211

GRAY,TRIM9#

main65341-52012-B2iNCP20,21,NLP20200211-200509

DK.GRAY,TRIM1#

main65341-52012-H1iNCP20,21,NLP20200001-200211

TORQUOISE,TRIM7#

65342BOARD, FLOOR, NO.2

main65342-52010-B1iNCP20199908-199911

GRAY,TRIM9#

main65342-52010-H1iNCP20199908-199911

TORQUOISE,TRIM7#

main65342-52011-B1iNCP20199911-200001

GRAY,TRIM9#

main65342-52011-H1iNCP20199911-200001

TORQUOISE,TRIM7#

main65342-52012-B1iNCP20,21,NLP20200001-200211

GRAY,TRIM9#

main65342-52012-B2iNCP20,21,NLP20200211-200509

DK.GRAY,TRIM1#

main65342-52012-H1iNCP20,21,NLP20200001-200211

TORQUOISE,TRIM7#

65357ACOVER, FLOOR BOARD

main65357-52010×4iNCP20199908-199911

main65357-52011×4iNCP20199911-200001

main65357-52012×4iNCP20,21,NLP20200001-200211

9010906189

main90109-06189

9090119063

main90901-19063

91511G0622

main91511-G0622

9356854512

main93568-54512

22 parts on this diagram · 1 diagram in section
