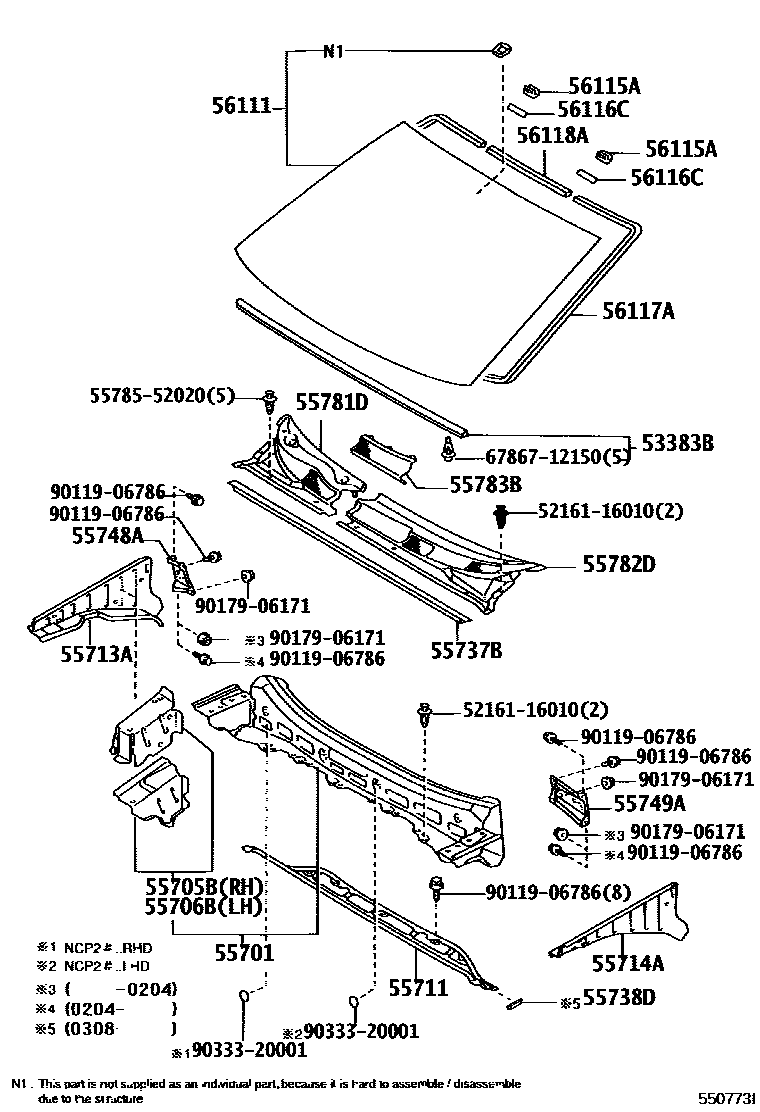

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52010iNCP2#,NLP2#199908-200211

55701PANEL SUB-ASSY, COWL

main55700-52030iNCP2#,NLP2#..RHD200211-200509

main55700-52040iNCP2#,NLP2#..LHD200211-200509

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52020iNCP2#,NLP2#199908-200211

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52020iNCP2#,NLP2#199908-200211

55711PANEL, COWL TOP, OUTER

main55701-52040iNCP2#..RHD199908-200005

main55701-52041iNCP2#,NLP2#..RHD200211-200509

main55701-52060iNCP2#..LHD199908-200005

main55701-52061iNCP2#,NLP2#..LHD200005-200211

55713APANEL, COWL TOP SIDE, RH

main55713-52010iNCP2#199908-200006

main55713-52011iNCP2#,NLP2#200006-200211

55714APANEL, COWL TOP SIDE, LH

main55714-52010iNCP2#199908-200006

main55714-52011iNCP2#,NLP2#200006-200211

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP2#,NLP2#199908-200211

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-52030×2iNCP2#,NLP2#200308-200509

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-52010iNCP2#,NLP2#199908-200204

main55748-52060iNCP2#,NLP2#200204-200211

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-52010iNCP2#,NLP2#199908-200204

main55749-52050iNCP2#,NLP2#200204-200211

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52050iNCP2#,NLP2#..RHD199908-200211

main55781-52060iNCP2#,NLP2#..LHD200211-200509

main55781-52070iNCP2#,NLP2#..LHD200211-200509

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52050iNCP2#,NLP2#..RHD199908-200211

main55782-52070iNCP2#,NLP2#..LHD199908-200211

main55782-52080iNCP2#,NLP2#..LHD199908-200211

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52050iNCP2#,NLP2#199908-200211

56111GLASS, WINDSHIELD

main56101-52040iNCP2#..RHD199908-200108

*LAM,T=4.56,GREEN

main56101-52041iNCP2#,NLP2#200108-200211

*LAM,T=4.56,GREEN

main56101-52060iNCP2#..LHD199908-200108

*LAM,T=4.56,GREEN

main56101-52200iNCP2#,NLP2#200211-200509

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNCP2#,NLP2#199908-200211

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNCP2#,NLP2#199908-200211

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP2#,NLP2#199908-200211

*D,L=3190

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP2#,NLP2#199908-200211

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

5578552020PAD, COWL OUTER PANEL, NO.2

main55785-52020

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906786

main90119-06786

9017906171

main90179-06171

9033320001

main90333-20001

25 parts on this diagram · 1 diagram in section
