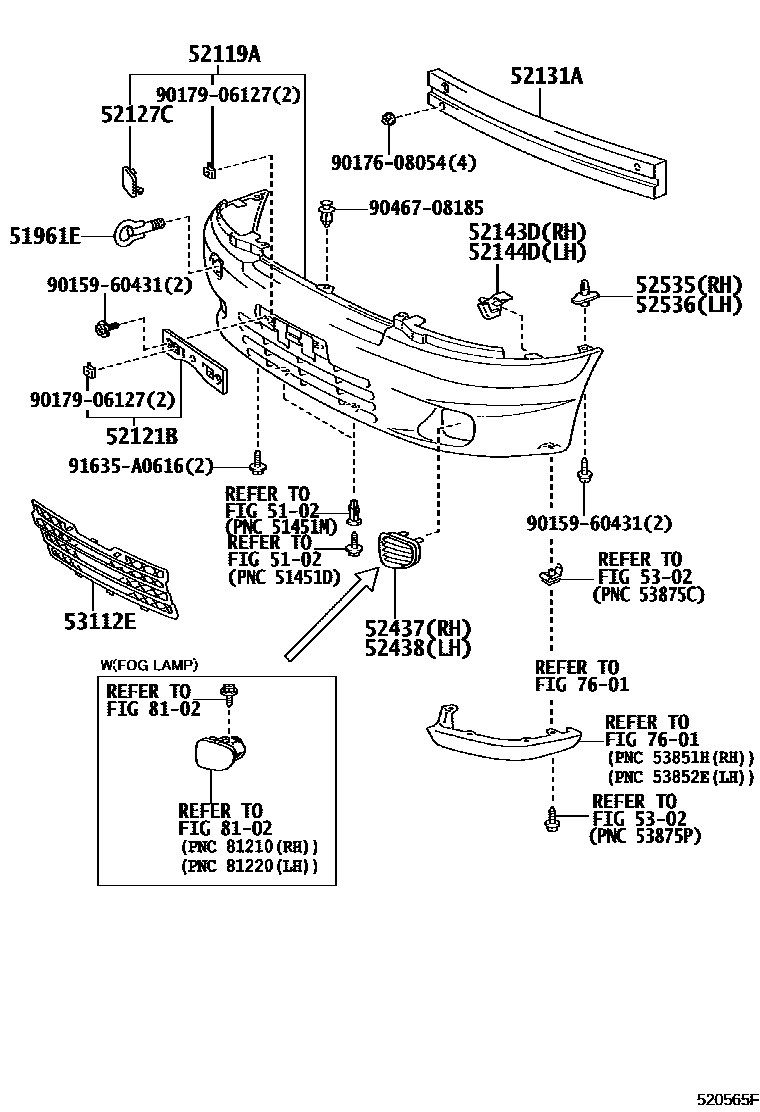

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52119ACOVER, FRONT BUMPER
WHITE,068
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52127CCOVER, FRONT BUMPER HOLE
SUPER WHITE 2,040
WHITE,068
SILVER ME,199
BLACK MC.,209
RED M.M.,3N8
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
GREEN PM.,6S2
BLUE MC.,8M6
52131AREINFORCEMENT, FRONT BUMPER
52143DBRACKET, FRONT BUMPER SIDE, RH
52144DBRACKET, FRONT BUMPER SIDE, LH
52437COVER, FRONT BUMPER GUARD, RH
W(FOG LAMP)
52438COVER, FRONT BUMPER GUARD, LH
W(FOG LAMP)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
7601MUDGUARD & SPOILER
8102FOG LAMP
9015960431
main90159-60431
9017608054
main90176-08054
9017906127
main90179-06127
9046708185
main90467-08185
91635A0616
main91635-A0616
21 parts on this diagram · 2 diagrams in section
