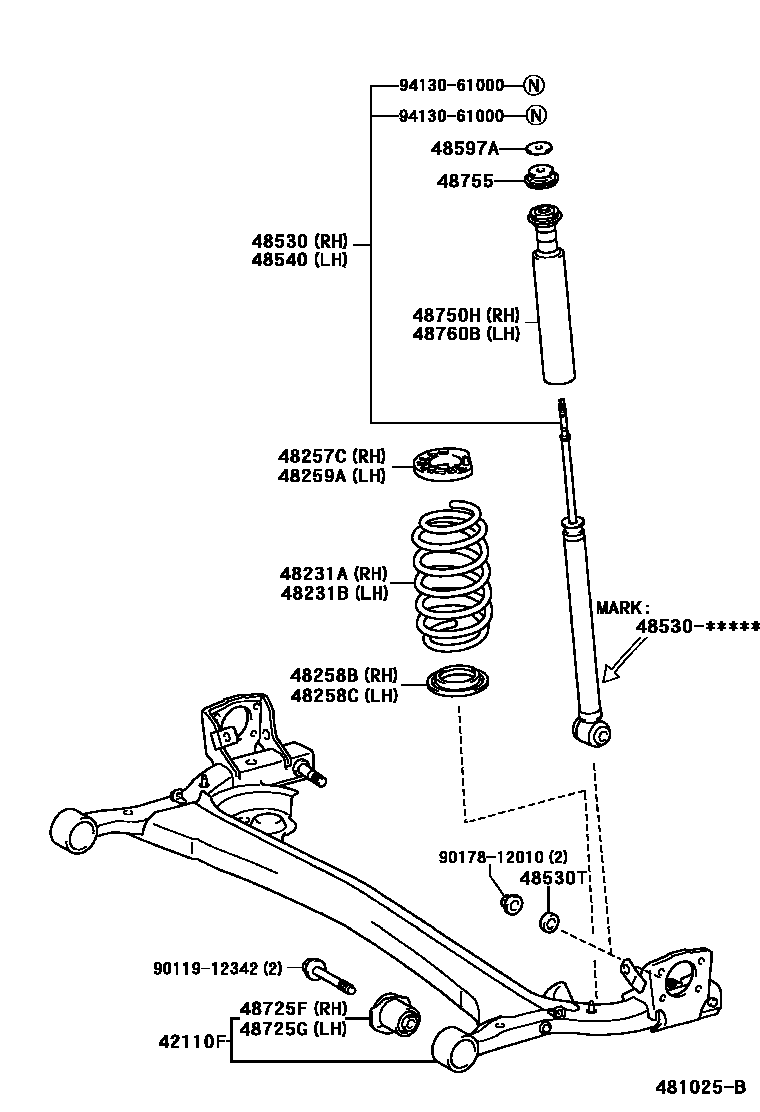

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52090iNCP2#..4FC,5F199908-200010

W(REAR DISC BRAKE)

main42110-52100iNCP2#199908-200010

main42110-52160iNCP2#,NLP2#200010-200211

main42110-52170iNLP2#..LHD;NCP2#..4FC,5F200010-200211

W(REAR DISC BRAKE)

48231ASPRING, COIL, REAR RH

main48231-52170iNCP2#,NLP2#199908-200211

main48231-52200iNLP20..LHD;NCP20,21..4FC,5F200211-200509

W(REAR DISC BRAKE)

main48231-52230iNCP2#..4FC,5F200003-200211

ROUGH ROAD PACKAGE

48231BSPRING, COIL, REAR LH

main48231-52170iNCP2#,NLP2#200211-200509

main48231-52200iNLP2#..LHD;NCP2#..4FC,5F199908-200211

W(REAR DISC BRAKE)

main48231-52230iNCP2#..4FC,5F200211-200212

ROUGH ROAD PACKAGE

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNCP2#,NLP2#199908-200211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52010iNCP2#,NLP2#199908-200211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52010iNCP2#,NLP2#200211-200509

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNCP2#,NLP2#199908-200211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59245iNCP20199908-200001

MARK 48530-52100

main48530-59246iNCP2#200001-200010

MARK 48530-52101

main48530-59247iNCP2#,NLP2#200211-200308

MARK 48530-52102

main48530-59255iNCP20199908-200001

MARK 48530-52140,W(REAR DISC BRAKE)

main48530-59256iNCP2#..4FC,5F200001-200010

MARK 48530-52141,W(REAR DISC BRAKE)

main48530-59257iNLP2#..LHD;NCP2#..4FC,5F200010-200211

MARK 48530-52142,W(REAR DISC BRAKE)

main48530-59365iNCP2#..4FC,5F200003-200211

MARK 48530-52330,ROUGH ROAD PACKAGE

main48530-80135iNCP2#,NLP2#200308-200509

MARK 48530-52102

main48530-80136iNLP20..LHD;NCP20,21..4FC,5F200308-200509

MARK 48530-52142,W(REAR DISC BRAKE)

48530TSPACER(FOR REAR SHOCK ABSORBER)

main90560-12065×2iNCP2#,NLP2#199908-200211

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59245iNCP20199908-200001

MARK 48530-52100

main48530-59246iNCP2#200001-200010

MARK 48530-52101

main48530-59247iNCP2#,NLP2#200211-200308

MARK 48530-52102

main48530-59255iNCP20199908-200001

MARK 48530-52140,W(REAR DISC BRAKE)

main48530-59256iNCP2#..4FC,5F200001-200010

MARK 48530-52141,W(REAR DISC BRAKE)

main48530-59257iNLP2#..LHD;NCP2#..4FC,5F200010-200211

MARK 48530-52142,W(REAR DISC BRAKE)

main48530-59365iNCP2#..4FC,5F200211-200212

MARK 48530-52330,ROUGH ROAD PACKAGE

main48530-80135iNCP2#,NLP2#200308-200509

MARK 48530-52102

main48530-80136iNLP20..LHD;NCP20,21..4FC,5F200308-200509

MARK 48530-52142,W(REAR DISC BRAKE)

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iNCP2#,NLP2#199908-200211

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52040iNCP2#,NLP2#199908-200211

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52040iNCP2#,NLP2#199908-200211

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52010iNCP2#,NLP2#199908-200211

48755SUPPORT, REAR SUSPENSION

main48755-52010×2iNCP2#,NLP2#199908-200211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52010iNCP2#,NLP2#199908-200211

9011912342

main90119-12342

9017812010

main90178-12010

9413061000

main94130-61000

19 parts on this diagram · 1 diagram in section
