FRONT AXLE HUB

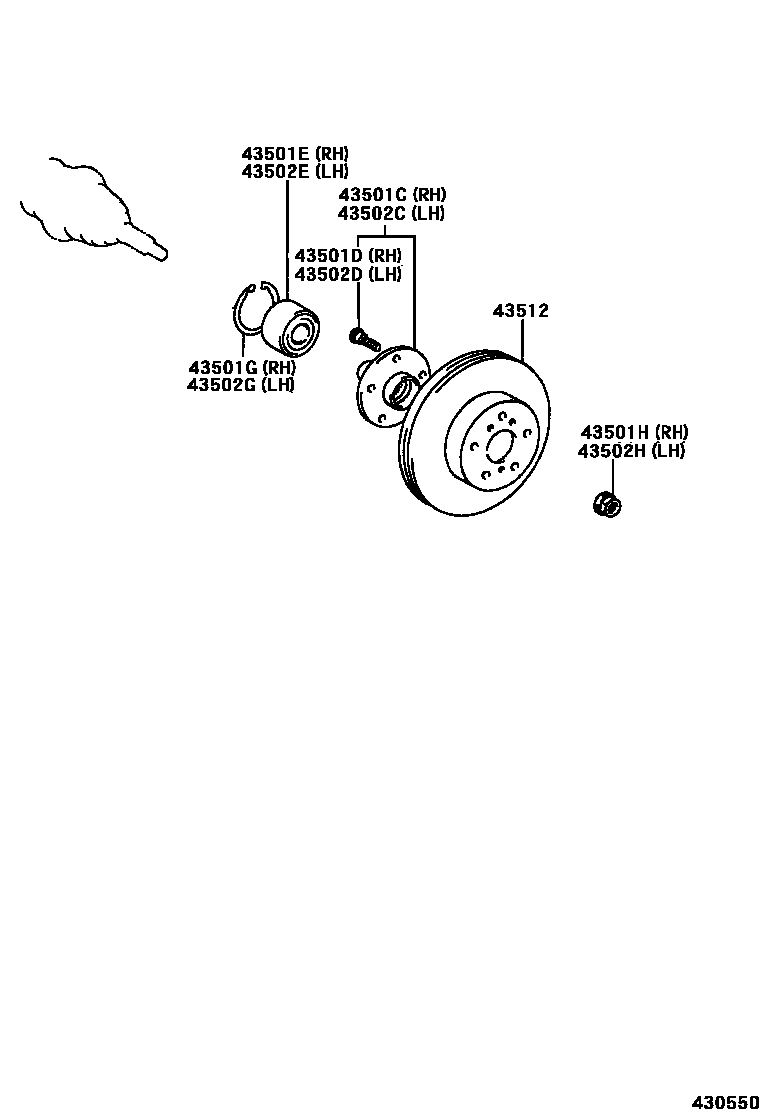

Parts diagram

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010i199908-200211

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i199908-200211

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021i199908-200211

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i199908-200211

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i199908-200211

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010i199908-200211

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i199908-200211

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021i199908-200211

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i199908-200211

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i199908-200211

43512DISC, FRONT

main43512-52040×2i199908-200211

11 parts on this diagram · 1 diagram in section
