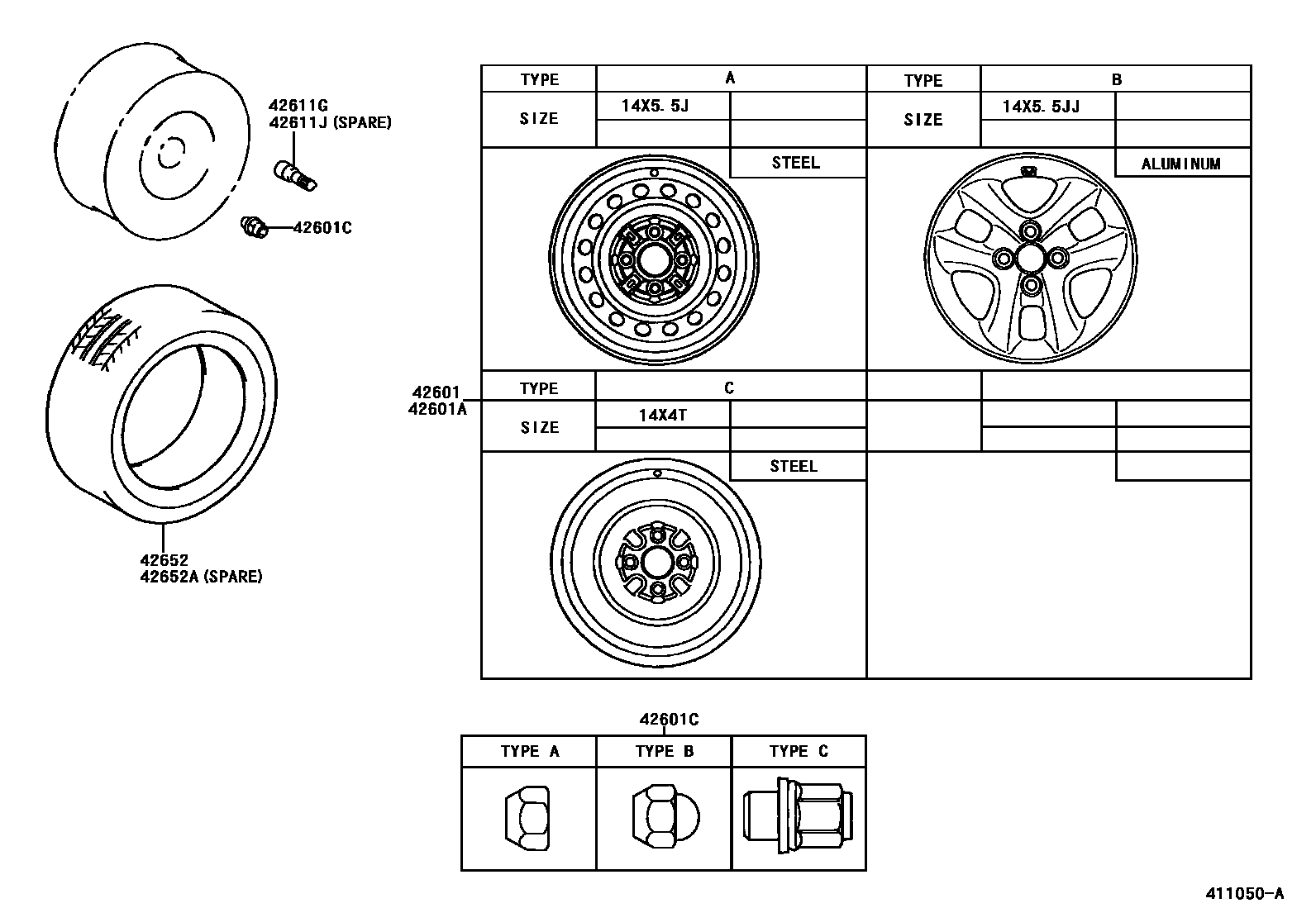

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52030iNCP2#,NLP2#..RHD200211-200509

14X5.5J, #,TYPE A:REFER ILLUST.

main42611-52030iNCP2#,NLP2#..RHD199908-200405

14X5.5J, #,TYPE A:REFER TO ILLUSTRATION,BLACK

main42611-52090iNCP2#,NLP2#..LUNA,STD199908-200509

14X5.5J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-52100iNCP2#199908-200211

14X5.5JJ, #,TYPE B:REFER TO ILLUSTRATION

main42611-52100iNCP2#,NLP2#200211-200509

14X5.5JJ, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-1A330iNCP2#,NLP2#199908-200509

14X4T,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007iNCP2#,NLP2#199908-200509

TYPE A:REFER TO ILLUSTRATION

main90942-01021iNCP2#,NLP2#..LUNA,STD199908-200308

TYPE B:REFER TO ILLUSTRATION

main90942-01033iNCP2#,NLP2#199908-200509

TYPE C:REFER TO ILLUSTRATION

main90942-01082iNCP2#,NLP2#..LUNA,STD200308-200509

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNCP2#,NLP2#..4FC,5F199908-200509

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP2#,NLP2#199908-200509

42652TIRE

main42652-52040iNCP2#,NLP2#..LHD199908-200401

155/80R13 82T

main42652-52041iNCP2#,NLP2#..LHD200402-200509

175/65R14 82T

main42652-52060iNCP2#,NLP2#..RHD..(4FC,5F)199908-200401

175/65R14

main42652-52061iNCP2#,NLP2#..RHD200402-200509

175/65R14

42652ATIRE (FOR SPARE)

main42652-16220iNCP2#,NLP2#199908-200509

T115/70D14

7 parts on this diagram · 3 diagrams in section
