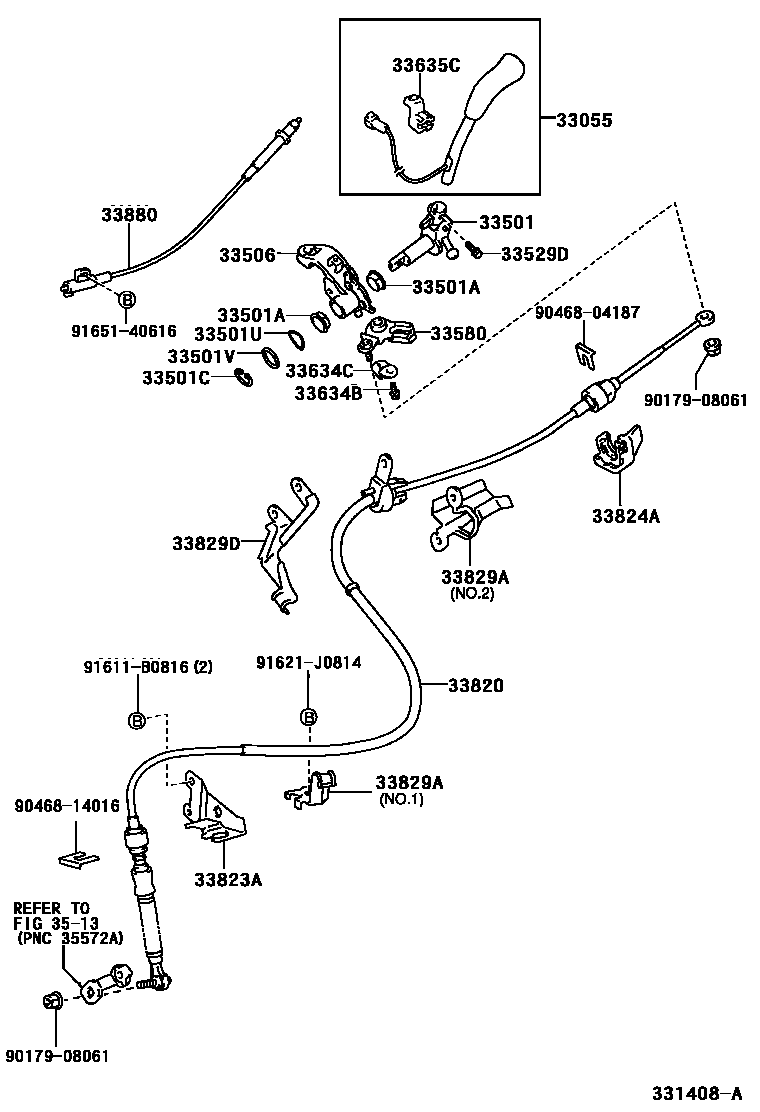

CONTROL SHAFT & CROSSSHAFT
33055LEVER SUB-ASSY, COLUMN SHIFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33501CRING (FOR CONTROL SHAFT)
33501UWASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)
33501VSPACER(FOR COLUMN SHIFT CONTROL SHIFT)
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33529DBOLT, SHIFT LEVER
33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33634BBOLT(FOR WIRE PROTECTOR)
33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR
33635CGUIDE, WIRE
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33823ABRACKET, TRANSMISSION CONTROL CABLE
33824ACOVER, TRANSMISSION CONTROL CABLE
33829ASUPPORT, TRANSMISSION CONTROL CABLE
NO.1
NO.2
33829DBRACKET, TRANSMISSION CONTROL CABLE
33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
3513THROTTLE LINK & VALVE LEVER (ATM)
9017908061
main90179-08061
9046804187
main90468-04187
9046814016
main90468-14016
91611B0816
main91611-B0816
91621J0814
main91621-J0814
9165140616
main91651-40616
25 parts on this diagram · 2 diagrams in section
