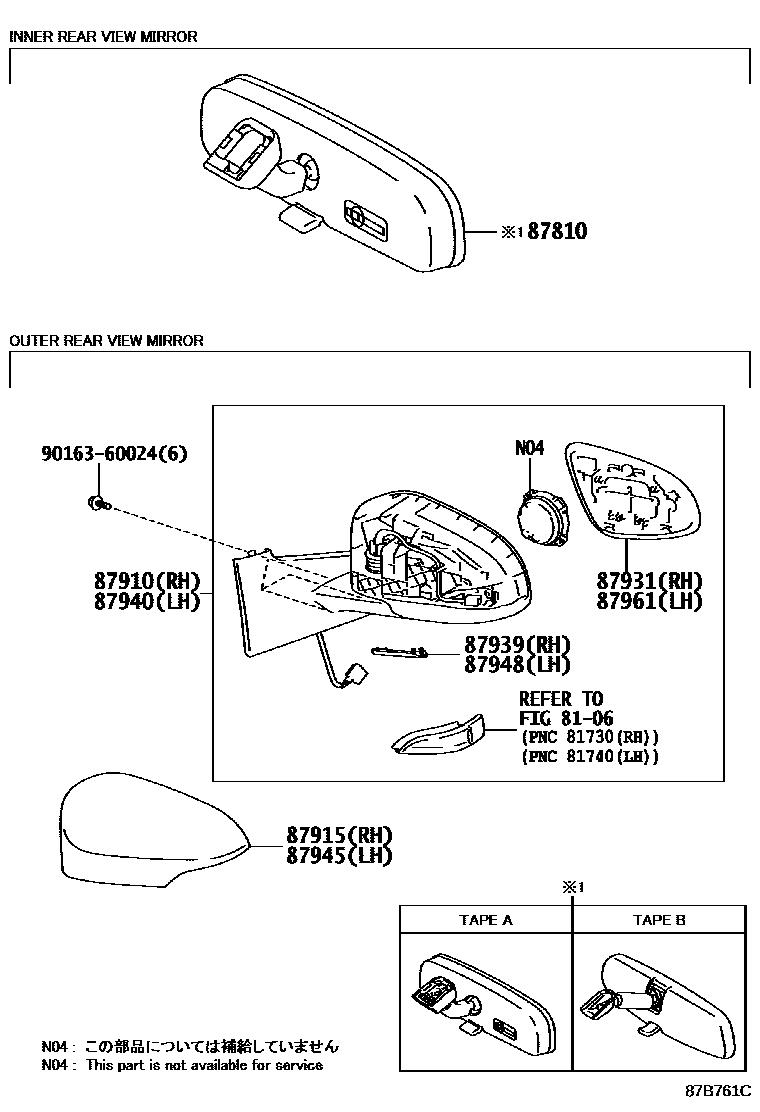

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
TYPE A
TYPE B
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&MATERIAL COLOR(BLACK)
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
87939COVER, OUTER MIRROR HOLE, RH
OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR&MATERIAL COLOR(BLACK)
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
GIN BUCK ME.,1J1
BLACK MC.,209
SUPER RED 5,3P0
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&MATERIAL COLOR(BLACK)
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&COLORED; OUTSIDE REAR VIEW MIRROR-*162&HEATER MIRROR&MATERIAL COLOR(BLACK)
9016360024
main90163-60024
10 parts on this diagram · 1 diagram in section
