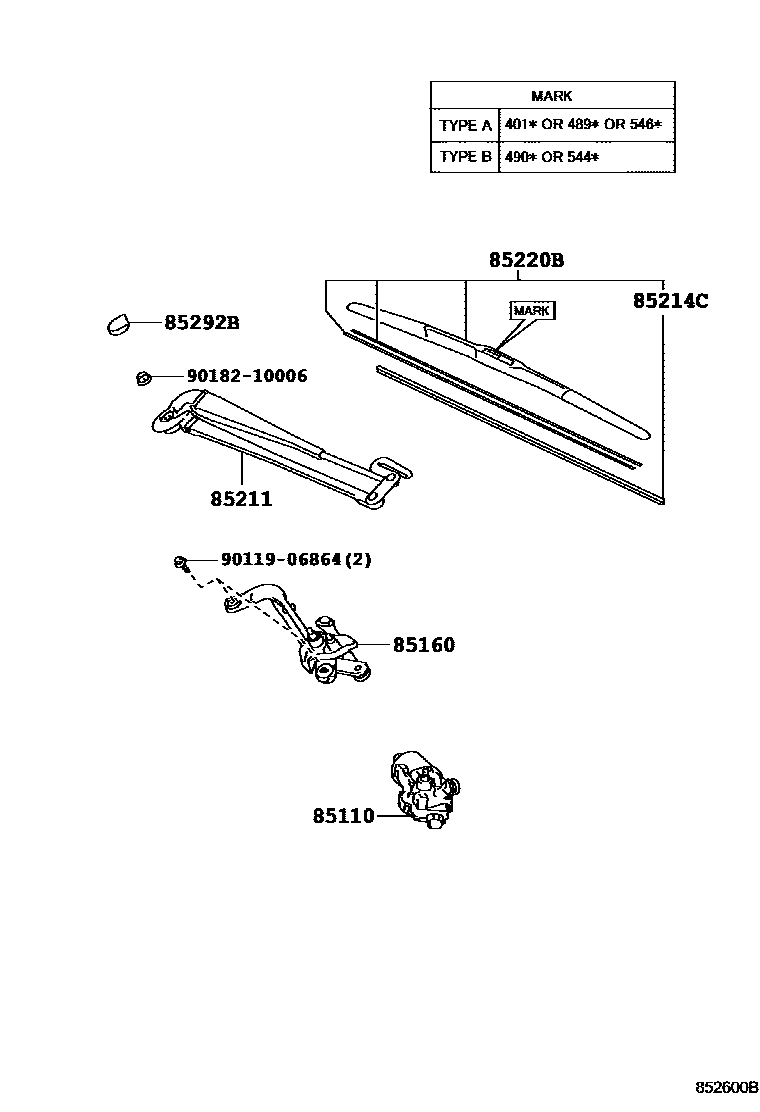

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52610iKSP130,NSP130..RHD201108

main85110-52620iKSP130,NSP130..LHD201108-201208

85160LINK ASSY, WINDSHIELD WIPER

main85150-52530iKSP130,NSP130..LHD201108-201208

main85150-52550iKSP130,NSP130..RHD201108

85211ARM, FRONT WIPER

main85211-52400iKSP130,NSP130..RHD201108-201111

main85211-52401iKSP130,NSP130..RHD201112-201212

main85211-52530iNSP130201212-201407

main85221-52360iKSP130,NSP130..LHD201108-201109

main85221-52361iKSP130,NSP130..LHD201110-201208

85214CRUBBER, WIPER BLADE, CENTER

main85214-28080iKSP130,NSP130..LHD201108-201110

main85214-52070iKSP130,NSP130..RHD201112-201203

TYPE B

main85214-52080iKSP130,NSP130..RHD201108-201112

TYPE A

85220BBLADE, FRONT WIPER

main85212-52260iKSP130,NSP130..RHD201108-201112

TYPE A

main85212-52270iKSP130,NSP130..RHD201112-201202

TYPE B

main85212-52271iKSP130,NSP130..RHD201203-201407

main85222-52270iKSP130,NSP130..LHD201108-201109

main85222-52280iKSP130,NSP130..LHD201110-201202

main85222-52281iKSP130,NSP130..LHD201203-201208

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iKSP130,NSP130201108-201212

main85292-52060iNSP130201212

9011906864

main90119-06864

9018210006

main90182-10006

8 parts on this diagram · 1 diagram in section
