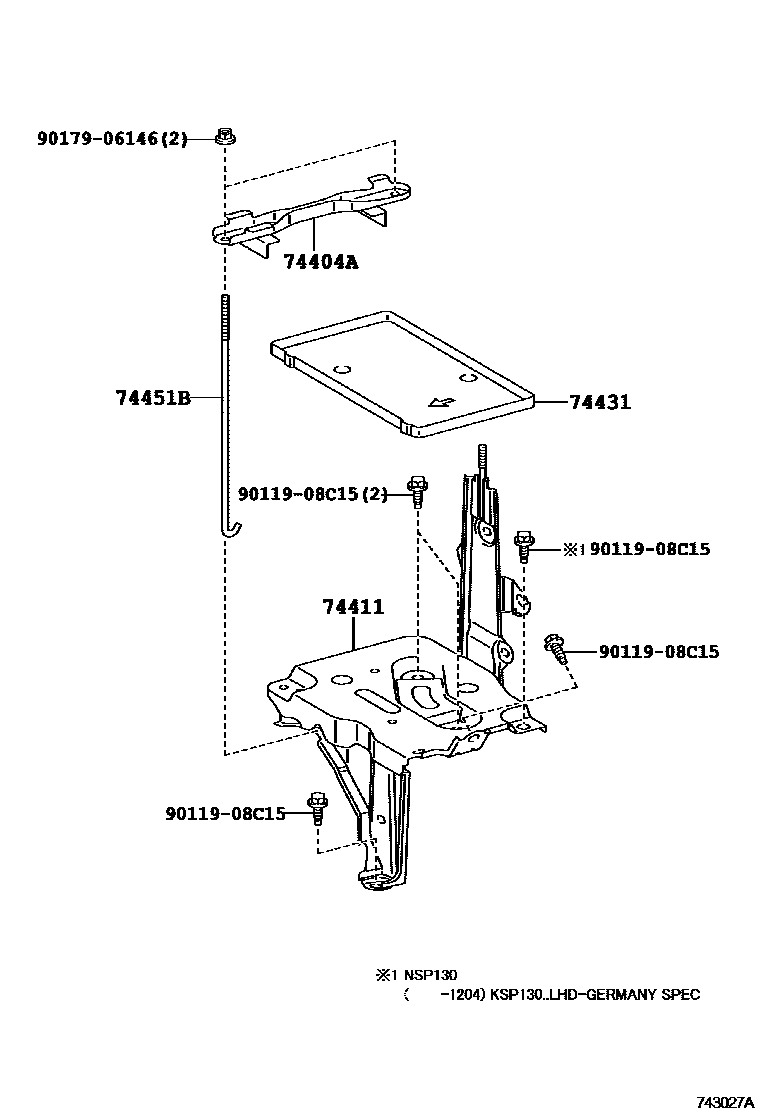

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-52110supersedes 74404-52130iNSP130201208

main74404-52130iKSP130..LHD; NSP130; NSP130..LHD..CVFC201108-201208

GERMANY SPEC; GERMANY SPEC&WITHOUT(STOP & START SYSTEM)

74411CARRIER, BATTERY

main74410-52051iKSP130,NSP130..RHD201108

main74410-52060iKSP130,NSP130..LHD201108-201208

74431TRAY, BATTERY

main74431-52101iNSP130201208

main74431-52111iKSP130..LHD; NSP130..6F201108-201208

GERMANY SPEC

main74431-52121iNSP130..CVFC; NSP130..LHD; NSP130..LHD..6F201108-201208

GERMANY SPEC; GERMANY SPEC&WITHOUT(STOP & START SYSTEM)

74451BBOLT, BATTERY CLAMP

main74451-52070iKSP130,NSP130201108-201203

main74451-52071iKSP130,NSP130201204

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
