FRONT BUMPER & BUMPER STAY

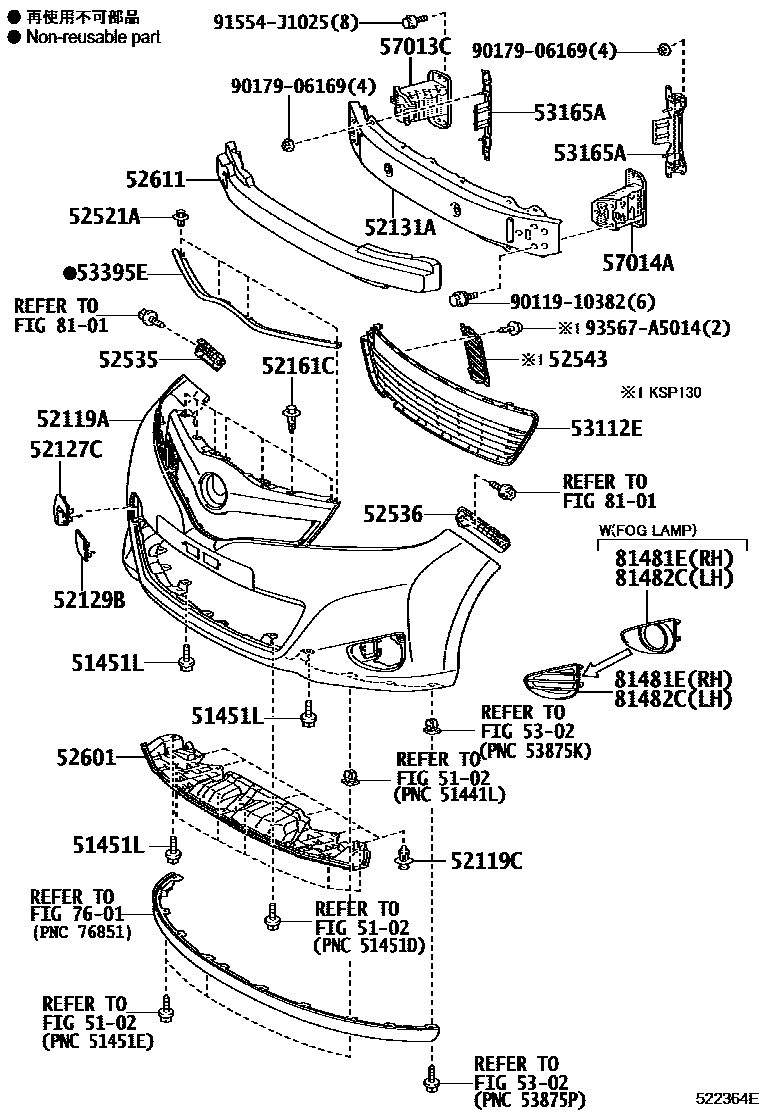

Parts diagram

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451LBOLT, NO.1

main90119-06767i201108-201407

52119ACOVER, FRONT BUMPER

main52119-52965i201108-201407

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-10216i201108-201407

52127CCOVER, FRONT BUMPER HOLE

main52127-52931i201108-201407

52129BCOVER, FRONT BUMPER, LOWER

main52129-52090i201108

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250i201108-201407

52161CPIECE, FRONT BUMPER

main52161-16010i201108-201407

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05063-C0i201108-201407

BLACK

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52110i201108-201201

main52535-52111i201202-201407

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52080i201108-201201

main52536-52081i201202

52543SEAL, FRONT BUMPER SIDE, RH

main52543-52030i201108-201208

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-52010i201108-201404

main52601-52020i201404-201407

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52090i201108

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52260i201108

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52060i201108

53395ESEAL, HOOD TO FRONT END PANEL

main53395-52040i201108

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010i201108-201207

main57013-52011i201208

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010i201108

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

81481ECOVER, FOG LAMP, RH

main81481-52360i201108

81482CCOVER, FOG LAMP, LH

main81482-52300i201108

9011910382

main90119-10382

9017906169

main90179-06169

91554J1025

main91554-J1025

93567A5014

main93567-A5014

28 parts on this diagram · 1 diagram in section
