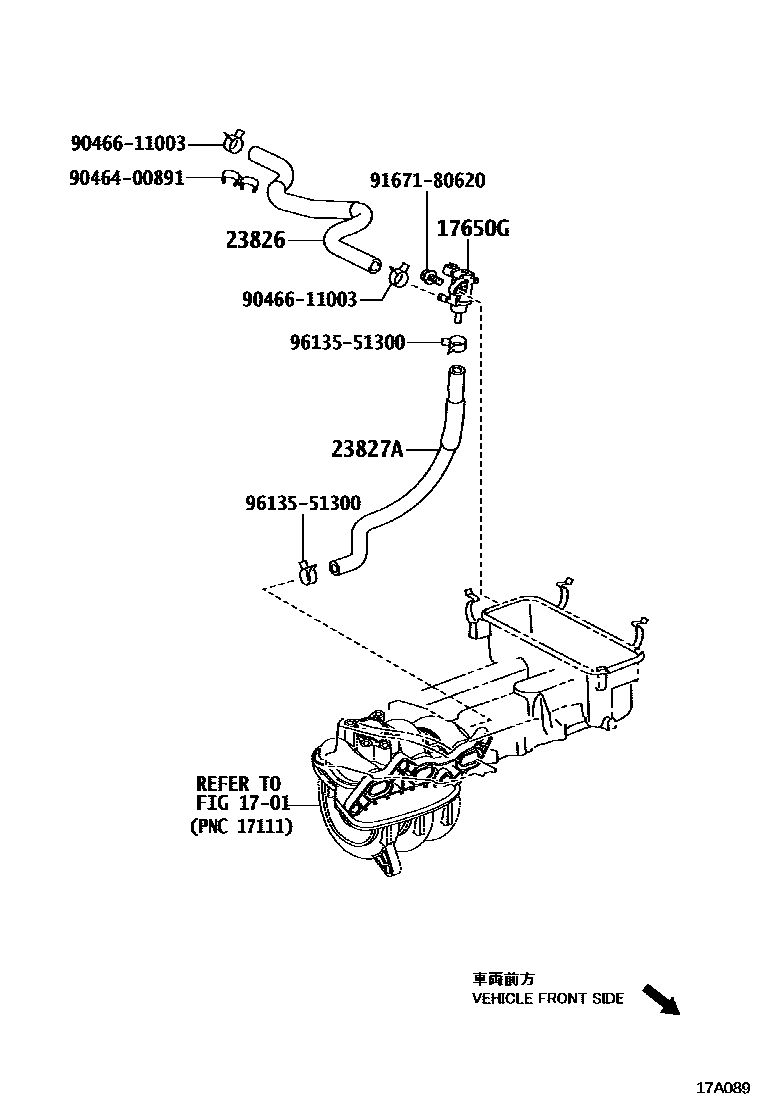

VACUUM PIPING

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KSP130201108-201208

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-40010i1KRFE..KSP130201108-201208

main23826-47030i1NRFE..NSP130201108

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-40011i1KRFE..KSP130201108-201208

main23827-47030i1NRFE..NSP130201108

9046400891

main90464-00891

9046611003

main90466-11003

9167180620

main91671-80620

9613551300

main96135-51300

8 parts on this diagram · 2 diagrams in section
