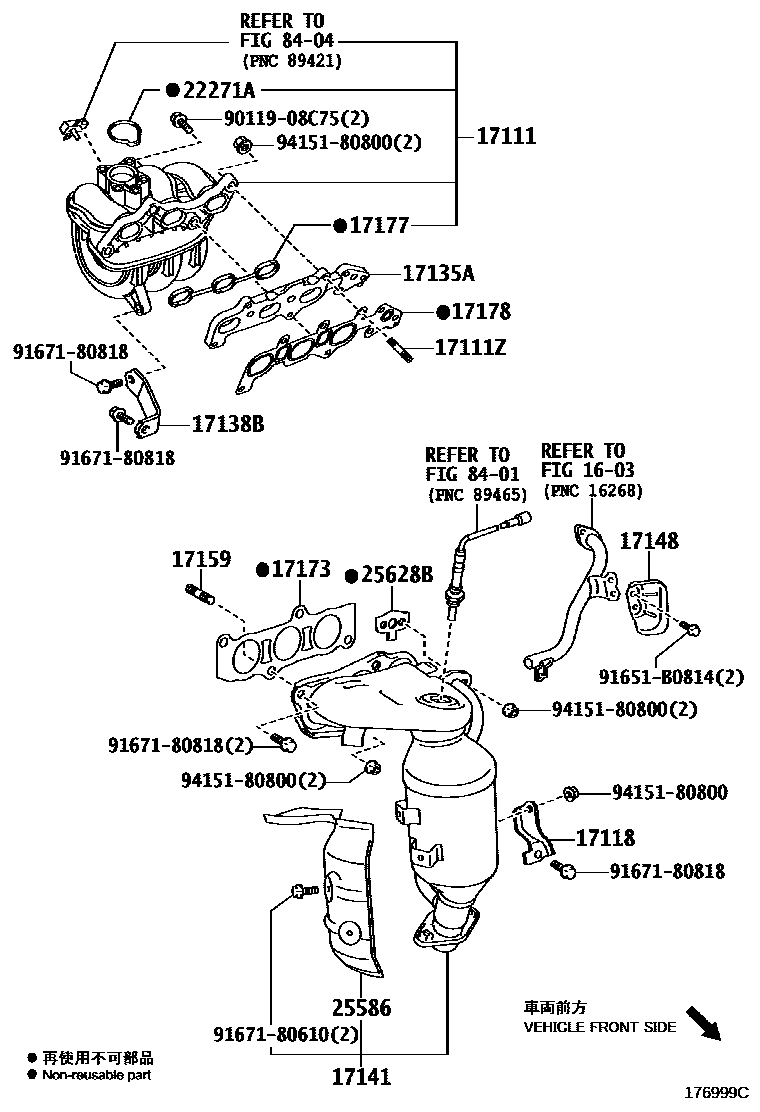

MANIFOLD
1603RADIATOR & WATER OUTLET
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
(L)
(J)
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
(L)
(J)
17141MANIFOLD, EXHAUST
*114=TOYOTA/40070/Y
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25628BGASKET, EGR INLET
(L)
(J)
8401SWITCH & RELAY & COMPUTER
8404ELECTRONIC FUEL INJECTION SYSTEM
9011908C75
main90119-08C75
91651B0814
main91651-B0814
9167180610
main91671-80610
9167180818
main91671-80818
9415180800
main94151-80800
22 parts on this diagram · 2 diagrams in section
