8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-52100i200809-201006

AIR CONDITIONER-WITHOUT

main88460-52110supersedes 88460-52130i200508-200708

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-WITHOUT; COLD SPEC=W(REAR HEATER DUCT)&AIR CONDITIONER-DEALER KIT

main88460-52130i200708-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-WITHOUT; COLD SPEC=W(REAR HEATER DUCT)&AIR CONDITIONER-DEALER KIT

88474DRYER, COOLER

main88474-12030i200611-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88474-17010i200508-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-WITHOUT

88566NDUCT, COOLER AIR, NO.1

main88566-52100i200807

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52390i200611

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88706-52440i200808-201108

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

main88706-52450i200508

AIR CONDITIONER-DEALER KIT; COLD SPEC=W(REAR HEATER DUCT)&AIR CONDITIONER-DEALER KIT

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52100i200508

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT; COLD SPEC=W(REAR HEATER DUCT)&AIR CONDITIONER-DEALER KIT

main88707-52130i200611

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52290i200508-200806

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-WITHOUT

main88711-52300supersedes 88711-52302i200611-200702

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88711-52301supersedes 88711-52302i200702-200801

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88711-52302i200802-200809

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88711-52350i200807-200808

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-MANUAL(B/RESI COMP/VARI); AIR CONDITIONER-WITHOUT

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-52260i200508

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT; COLD SPEC=W(REAR HEATER DUCT)&AIR CONDITIONER-DEALER KIT

main88712-52330supersedes 88712-52331i200611-200801

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

main88712-52331i200802

AIR CONDITIONER-DEALER KIT; AIR CONDITIONER-L/ UNIT (W/H ONLY); AIR CONDITIONER-WITHOUT

88891HCOVER, COOLER, NO.1

main88891-52030i200508-200701

main88891-52031i200702-200806

main88891-52032i200808-201106

8871813060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13060

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

8889952061COVER, EVAPORATOR

main88899-52061

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9046707164

main90467-07164

9155180625

main91551-80625

9155180635

main91551-80635

91551A0618

main91551-A0618

9415180641

main94151-80641

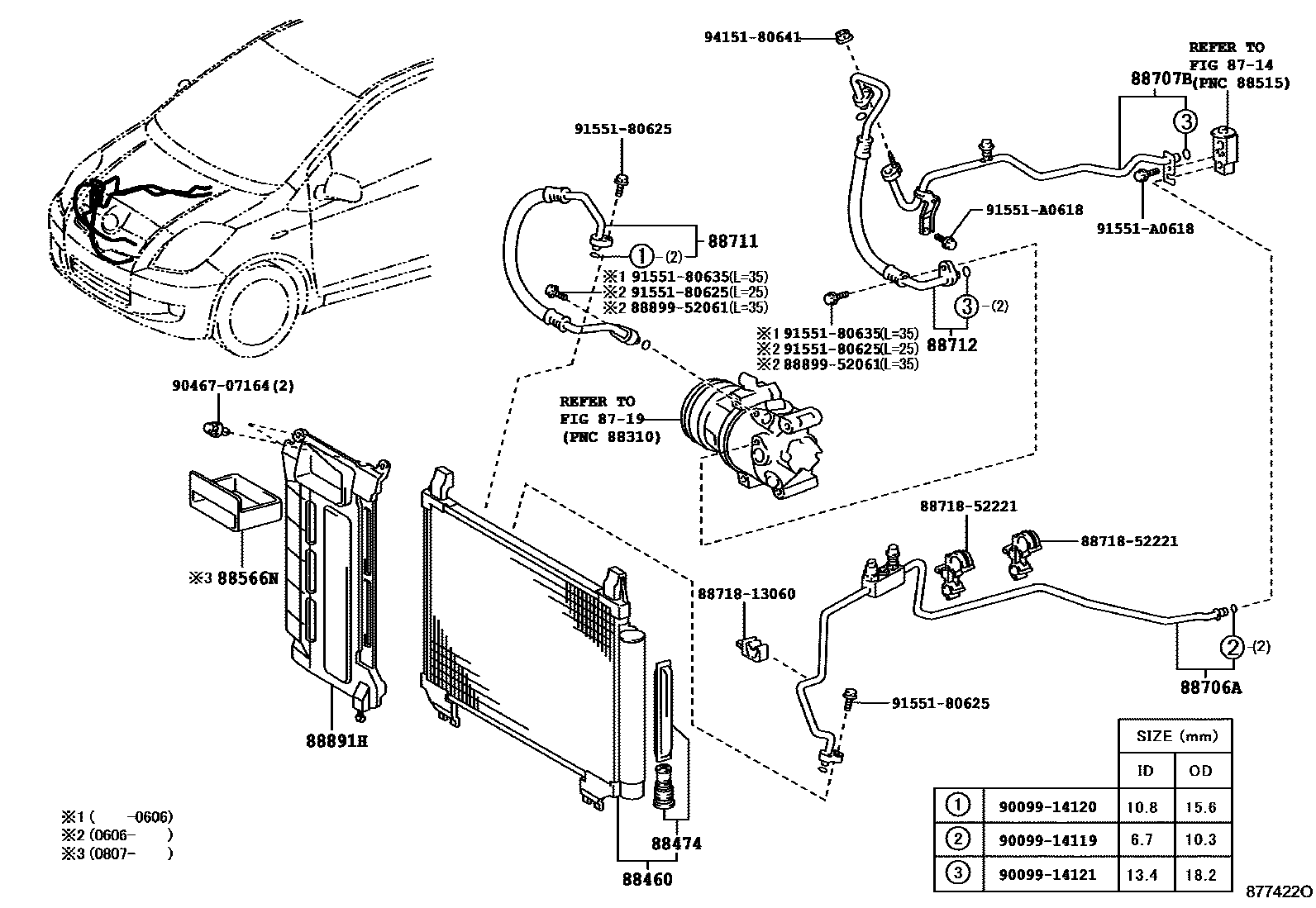

HEATING & AIR CONDITIONING - COOLER PIPING
