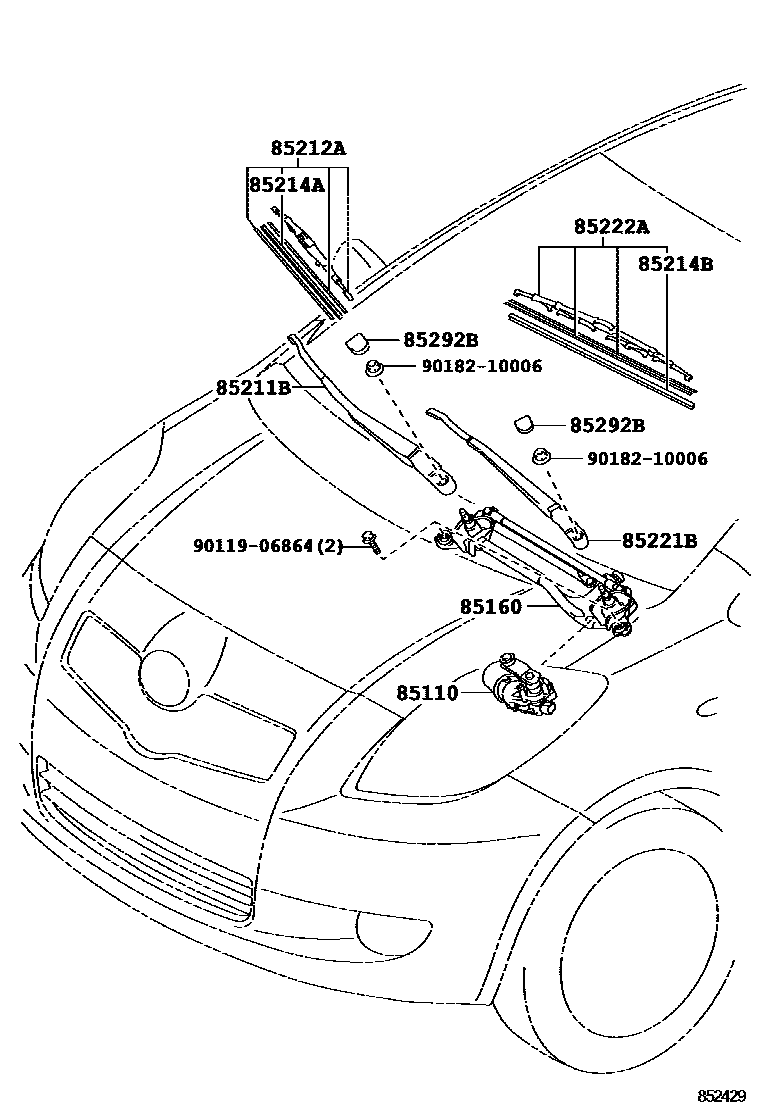

Toyota YARIS (JPP) — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
9011906864
main90119-06864
9018210006
main90182-10006
11 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota YARIS (JPP)
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota YARIS (JPP). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
