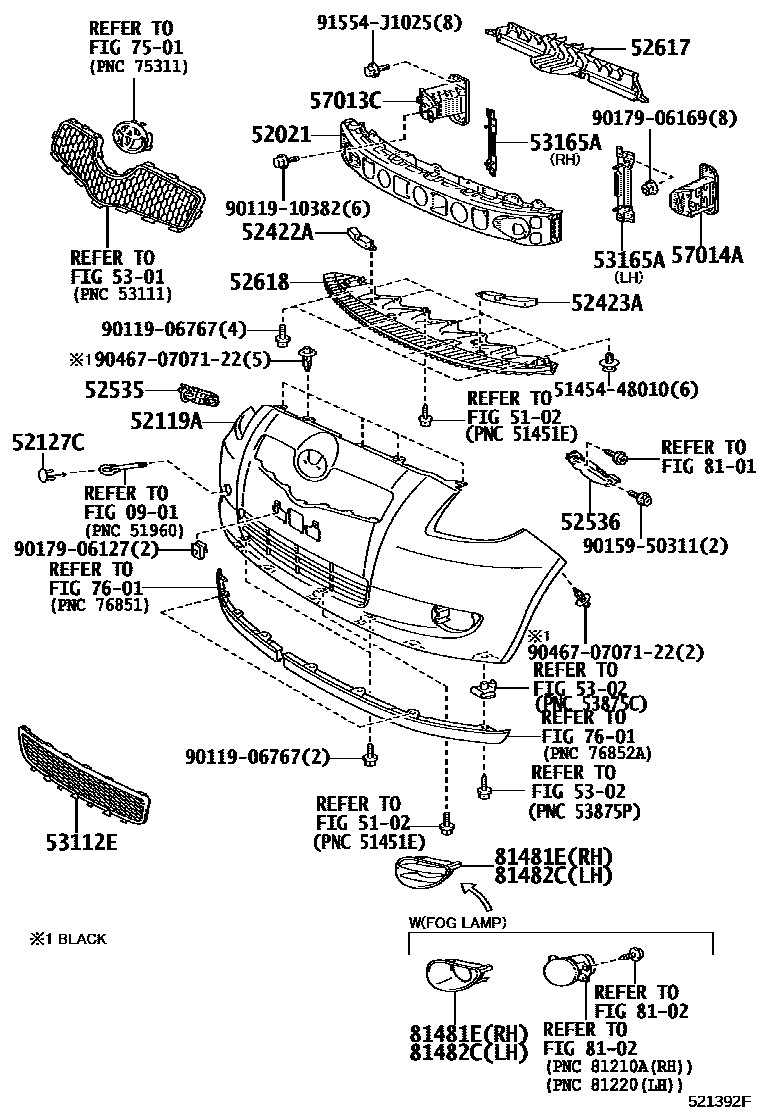

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

0901STANDARD TOOL

→ Go to FIG 09-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-52050iKSP90,ZSP90..JPP200508-200809

52119ACOVER, FRONT BUMPER

main52119-52922iKSP90..JPP200508-200808

PAINT REQ.

main52119-52938iZSP90..JPP200611-200809

PAINT REQ.

main52119-52946iKSP90..JPP200808-201106

PAINT REQ.

main52119-52960iZSP90..JPP200809-201006

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-52907iKSP90..JPP200508

main52127-52908iZSP90..JPP..5F200611

main52127-52925iKSP90..JPP200808-201106

main52127-52928iZSP90..JPP200809-201006

52422APAD, FRONT BUMPER, RH

main52422-52010iKSP90,ZSP90..JPP..5F200508

52423APAD, FRONT BUMPER, LH

main52423-52010iKSP90,ZSP90..JPP..5F200508

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52060iKSP90,ZSP90..JPP..5F200508

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52050iKSP90,ZSP90..JPP..5F200508

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52020iKSP90..JPP;ZSP90..JPP..6F200808-201106

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52010iKSP90,ZSP90..JPP..5F200508

main52618-52030iKSP90..JPP;ZSP90..JPP..6F200808

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D160iKSP90..JPP200808-201108

main53112-52160iKSP90..JPP200508

NO PAINT REQ.

main53112-52170iZSP90..JPP..5F200611

NO PAINT REQ.

main53112-52350iZSP90..JPP200809-201006

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52010iKSP90..JPP;ZSP90..JPP..6F200808-201011

RH

main53164-52060×2iKSP90..JPP201011-201106

main53165-52020iKSP90..JPP;ZSP90..JPP..6F200808-201011

LH

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iKSP90,ZSP90..JPP..5F200508

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iKSP90,ZSP90..JPP..5F200508

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main81481-52150supersedes 81481-52110iKSP90..JPP200508

FRONT FOG LAMP-WITH

main81481-52330supersedes 81481-52320iKSP90..JPP200808-201106

FRONT FOG & DRIVING LAMP-WITH

81482CCOVER, FOG LAMP, LH

main81482-52110supersedes 81482-52100iKSP90..JPP200508

FRONT FOG LAMP-WITH

main81482-52260supersedes 81482-52250iKSP90..JPP200808-201106

FRONT FOG & DRIVING LAMP-WITH

5145448010CLIP

main51454-48010

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906127

main90179-06127

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

31 parts on this diagram · 5 diagrams in section
