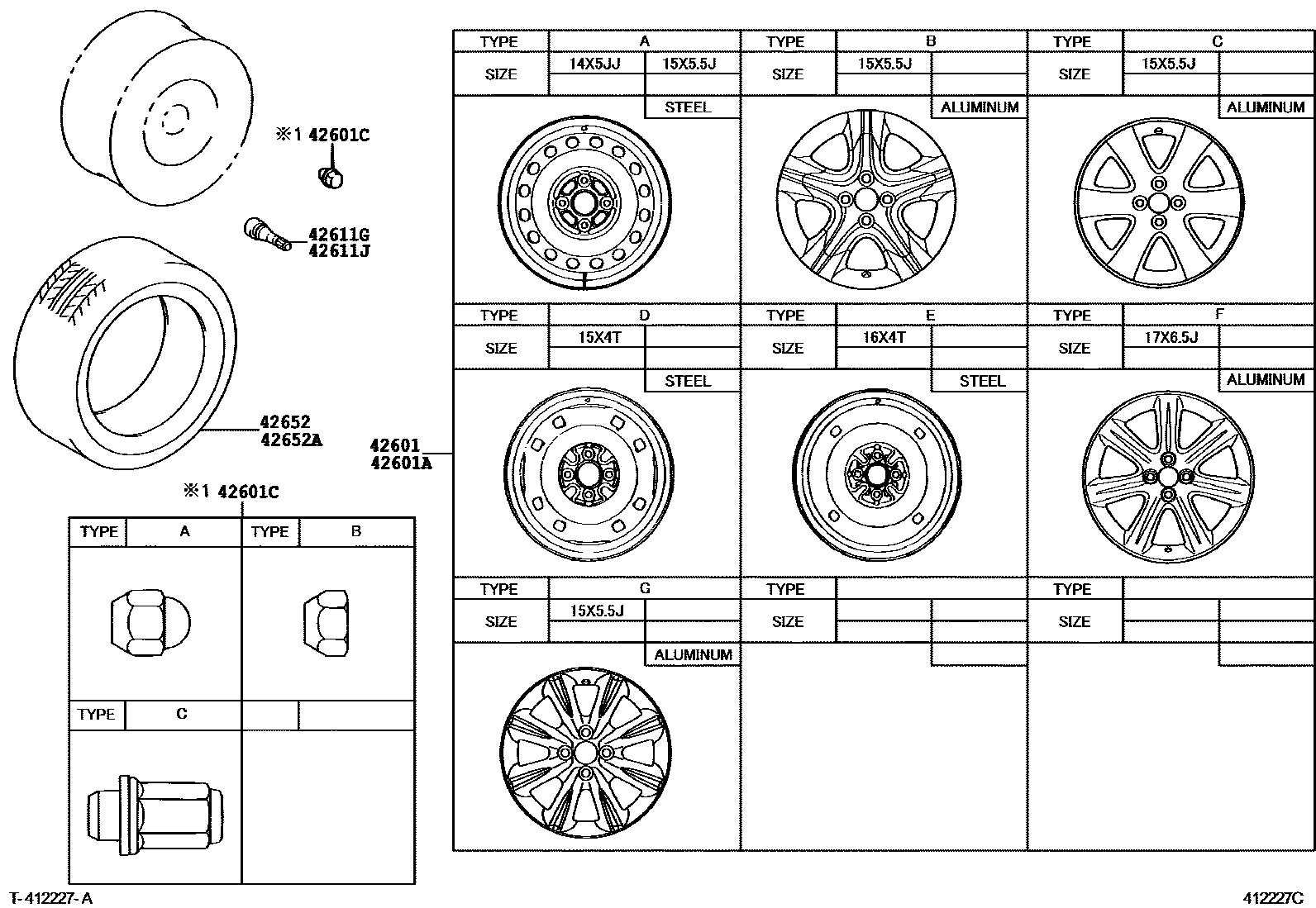

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-52580×4i200611

17X6.5J, #,TYPE F:REFER ILLUST.

main42611-52490×4supersedes 42611-52502i200508-200706

14X5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISKWHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TIRE & DISK WHEEL-165/70R14 5J BLACK,TYPE A:REFER ILLUST.

main42611-52491×4i200707-200808

14X5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISKWHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TIRE & DISK WHEEL-165/70R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.

main42611-52492×4i200908-200910

14X5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISKWHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 14X5J, #,TIRE & DISK WHEEL-165/70R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.

main42611-52493×4i201009-201106

14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.

main42611-52510×4supersedes 42611-52501i200508-200604

15X5.5J, #,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.; 15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-52511×4i200707-200808

15X5.5J, #,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.; 15X5.5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-52530×4i200808-201002

15X5.5, #,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE G:REFER ILLUST.; 15X5.5, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE G:REFERILLUST.

main42611-52610×4i200607-200706

15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEELBRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R155.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGHROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.

main42611-52611×4i200707

15X5.5J, #,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEELBRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R155.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGHROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-1A240supersedes 42611-1A010i200809-201001

16X4T,TYPE E:REFER ILLUST.

main42611-52400i201001-201006

16X4T,TYPE E:REFER ILLUST.

main42611-1A010i200508

15X4T,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGHROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.&SPARE TIRE-GROUNDTIRE(ALMINIUM WHEEL),TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.&SPARE TIRE-GROUNDTIRE(STEEL WHEEL),TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5JBLACK&SPARE TIRE-GROUND TIRE(ALMINIUM WHEEL),TYPE D:REFER ILLUST.; 15X4T,TIRE & DISK WHEEL-185/60R15 5.5JBLACK&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE D:REFER ILLUST.; 15X4T,TYPE D:REFER ILLUST.

main42611-1A020i201001-201106

15X4T,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN),TYPE D:REFER ILLUST.; 15X4T,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPED:REFER ILLUST.; 15X4T,SOUTH AFRICA SPEC,TYPE D:REFER ILLUST.; 15X4T,TYPE D:REFER ILLUST.

main42611-52490i200607-200706

14X5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISKWHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.

main42611-52491supersedes 42611-1A020i200707-200808

14X5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISKWHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.; 14X5J, #,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK,TYPE A:REFER ILLUST.

main42611-52492supersedes 42611-1A020i201008-201009

14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.

main42611-52493supersedes 42611-1A020i201009-201106

14X5J, #,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.

main42611-52500i200607-200706

15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEELBRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPEA:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEELBRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN),TYPE A:REFER ILLUST.; 15X5.5J, #,SOUTH AFRICA SPEC,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R155.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R155.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.

main42611-52501i200707-200808

15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEELBRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN),TYPE A:REFER ILLUST.; 15X5.5J, #,SOUTH AFRICA SPEC,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R155.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.; 15X5.5J, #,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5JBLACK,TYPE A:REFER ILLUST.

main42611-52502i200908-200910

main42611-52510supersedes 42611-1A020i200607-200706

main42611-52511supersedes 42611-1A020i200707-200808

main42611-52530supersedes 42611-1A020i200808-201002

main42611-52610i200607-200706

main42611-52611i200707

42601CNUT, HUB (FOR AXLE)

main90942-01021×16i200508-200808

TYPE A:REFER ILLUST.

main90942-01033×16i200809-201006

TYPE C:REFER ILLUST.

main90942-01007×16supersedes 90942-01021i200808-201108

TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200808-201106

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200808-201106

SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN); SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

42652TIRE

main42652-52A70×4i200611-200809

205/45R17 84W

main42652-52A80×4i200611-200809

205/45R17 84W

main42652-52290×4supersedes 42652-52B90i200510-200808

165/70R14 *B/S,TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52510×4supersedes 42652-52C30i200601-200803

185/60R15 *Y/H; 185/60R15 *Y/H,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *Y/H,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52520×4supersedes 42652-52B90i200607-200808

185/60R15 *D/L,SOUTH AFRICA SPEC; 185/60R15 *D/L,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *D/L,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM; 185/60R15 *D/L,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52530×4supersedes 42652-52C30i200508-200802

185/60R15 *B/S; 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52531×4supersedes 42652-52C30i200803-200808

185/60R15 *B/S; 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52560×4supersedes 42652-52C00i200508-200510

165/70R14 *B/S,TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52580×4supersedes 42652-52C40i200601-200803

185/60R15 *Y/H; 185/60R15 *Y/H,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *Y/H,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52590×4supersedes 42652-52C40i200508-200802

185/60R15 *D/L; 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52600×4supersedes 42652-52C40i200508-200802

185/60R15 *B/S; 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52601×4supersedes 42652-52C40i200803-200808

185/60R15 *B/S; 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *B/S,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52670×4supersedes 42652-52B90i200607-200808

175/65R14 *D/L,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK

main42652-52671×4supersedes 42652-52B90i201008-201108

175/65R14 *D/L,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

main42652-52680×4supersedes 42652-52710i200607-200808

175/65R14 *D/L,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE &DISK WHEEL-175/65R14 5J BLACK; 175/65R14 *D/L,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK; 175/65R14 *D/L,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK

main42652-52710×4i200607-200808

185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.; 185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK; 185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE &DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE &DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.; 185/60R15 *B/S,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE &DISK WHEEL-185/60R15 5.5JBLACK; 185/60R15 *B/S,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGHROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-185/60R15 5.5JBLACK; 185/60R15 *B/S,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.; 185/60R15 *B/S,TURKEY SPEC&TIRE & DISK WHEEL-185/60R15 5.5JBLACK

main42652-52A30×4supersedes 42652-52B90i200510-200808

165/70R14,*Y/H,TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52B70×4supersedes 42652-52B90i200808-201002

165/70R14 *B/S,ECO MODEL PACKAGE&TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52B80×4supersedes 42652-52C00i200808-200910

165/70R14 *B/S,TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52B90×4i200808-201002

165/70R14 *Y/H,ECO MODEL PACKAGE&TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52C00×4i200808-200910

165/70R14 *Y/H,TIRE & DISK WHEEL-165/70R14 5J BLACK

main42652-52C30×4i200803-200808

185/60R15 *D/L; 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main42652-52C40×4i200803-200808

185/60R15 *D/L; 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN); 185/60R15 *D/L,REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

42652ATIRE (FOR SPARE)

main42652-12E50i200808-201108

T125/70D15,*T/Y; T125/70D15,*T/Y,SOUTH AFRICA SPEC; T125/70D15,*T/Y,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISK(BUILT-IN); T125/70D15,*T/Y,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROADSPEC.

main42652-13120supersedes 42652-32520i201001-201006

T125/70D16,*D/L

main42652-32520i200808-201108

T125/70D15,*B/S

main42652-52520i200808-201002

main42652-52670i200808-201008

175/65R14 *D/L,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

main42652-52671i201008-201108

175/65R14 *D/L,SOUTH AFRICA SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

main42652-52680i200808-200910

175/65R14 *D/L,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE &DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.; 175/65R14 *D/L,TURKEY SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER =PLASTIC,W(HIGHT UP)&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.; 175/65R14 *D/L,TURKEY SPEC&TIRE & DISK WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

main42652-52710i200607-200808

7 parts on this diagram · 3 diagrams in section
