DISC WHEEL & WHEEL CAP

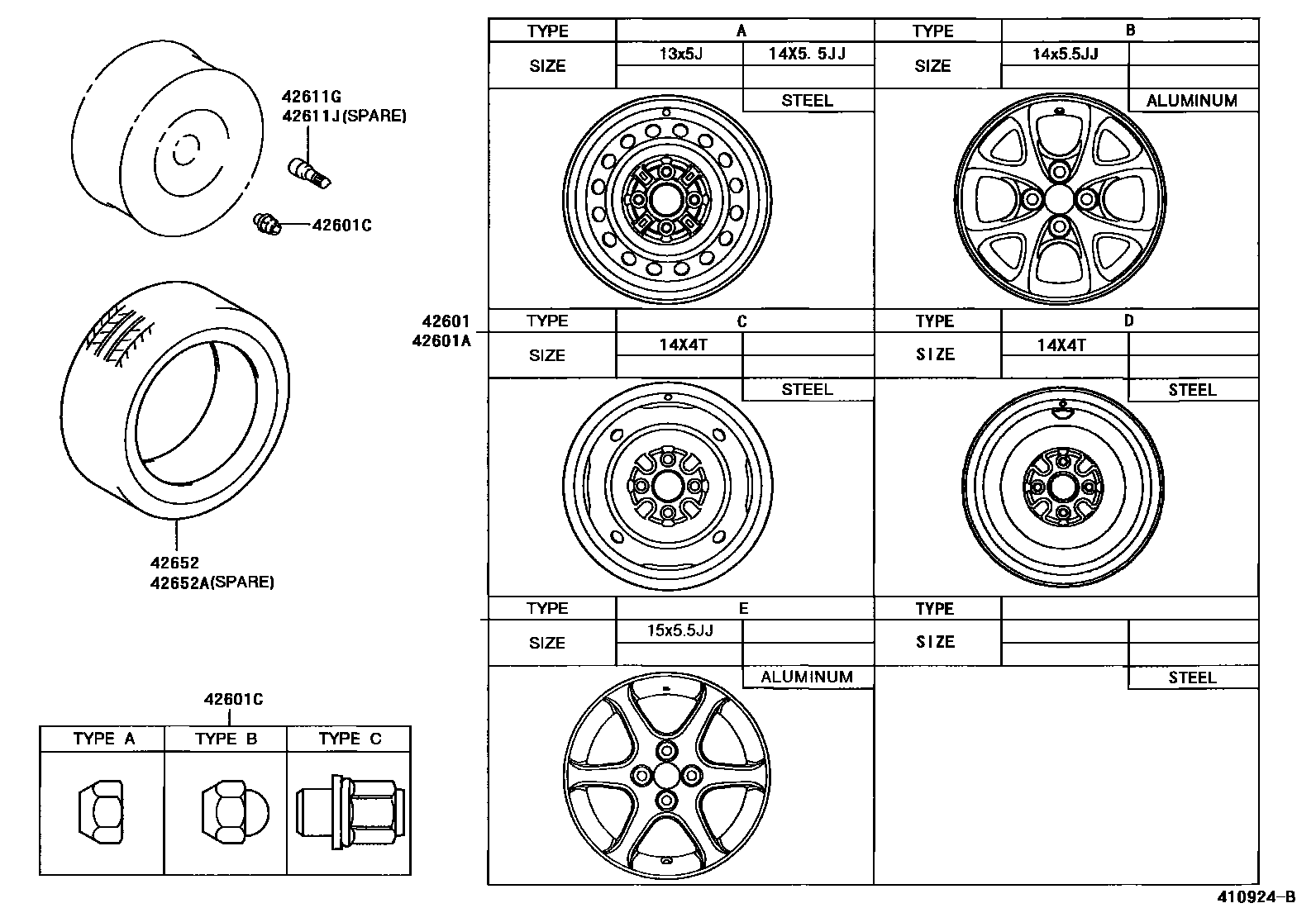

Parts diagram
42601WHEEL, DISC
main42611-52010×4i200212-200405
13X5J,SILVER,TYPE A:REFER ILLUST.
main42611-52020×4i200306-200405
13X5JJ,BLACK, #,TYPE A:REFER ILLUST.
main42611-52030×4i199901-200212
14X5.5J, #,TYPE A:REFER ILLUST.
main42611-52040×4i200406
14X5.5JJ,OFFSET 45,#,TYPE B:REFER ILLUST.
main42611-52200×4i200212-200405
15X5.5JJ,OFFSET 45,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-16310i200212
14X4T,OFFSET 45,TYPE C:REFER ILLUST.
main42611-1A330i200212
14X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01007×16i199901-200212
TYPE A:REFER ILLUST.
main90942-01021×16i199901-200212
TYPE B:REFER ILLUST.
main90942-01033×16i199901-200212
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4i199901-200212
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i199901-200212
42652TIRE
main42652-1R310×2i200212-200401
185/55R15 81V,*Y/H,RH
main42652-1R311×2i200402-200405
185/55R15 81V,*Y/H,RH
main42652-1R510×2i200212-200401
185/55R15 81V,*Y/H,LH
main42652-1R511×2i200402-200405
185/55R15 81V,*Y/H,LH
main42652-1R570×2i200206-200212
185/55R15 81V,*Y/H,RH
main42652-1R571×2i200402-200405
185/55R15 81V,*Y/H,RH
main42652-1R590×2i200212-200401
185/55R15 81V,*Y/H,LH
main42652-1R591×2i200406-200508
185/55R15 81V,*Y/H,LH
main42652-52030×4i199901-200212
155/80R13 79T
main42652-52031×4i200402-200405
155/80R13 79T
main42652-52040×4i199901-200212
155/80R13 82T
main42652-52041×4i200402-200405
175/65R14 82T
main42652-52050×4i200212-200401
155/80R13
main42652-52051×4i200402-200405
155/80R13
main42652-52060×4i199901-200212
175/65R14
main42652-52061×4i200406-200508
175/65R14
main42652-52150×4i199911-200212
155/80R13 79T
main42652-52250×2i200212-200401
185/55R15,RH
main42652-52251×2i200406-200508
185/55R15,RH
main42652-52260×2i200212-200401
185/55R15,LH
main42652-52261×2i200406-200508
185/55R15,LH
main42652-52270×2i200212-200401
185/55R15,RH
main42652-52271×2i200402-200405
185/55R15,RH
main42652-52280×2i200101-200212
185/55R15,LH
main42652-52281×2i200402-200405
185/55R15,LH
42652ATIRE (FOR SPARE)
main42652-16220i199901-200212
T115/70D14

7 parts on this diagram · 3 diagrams in section
