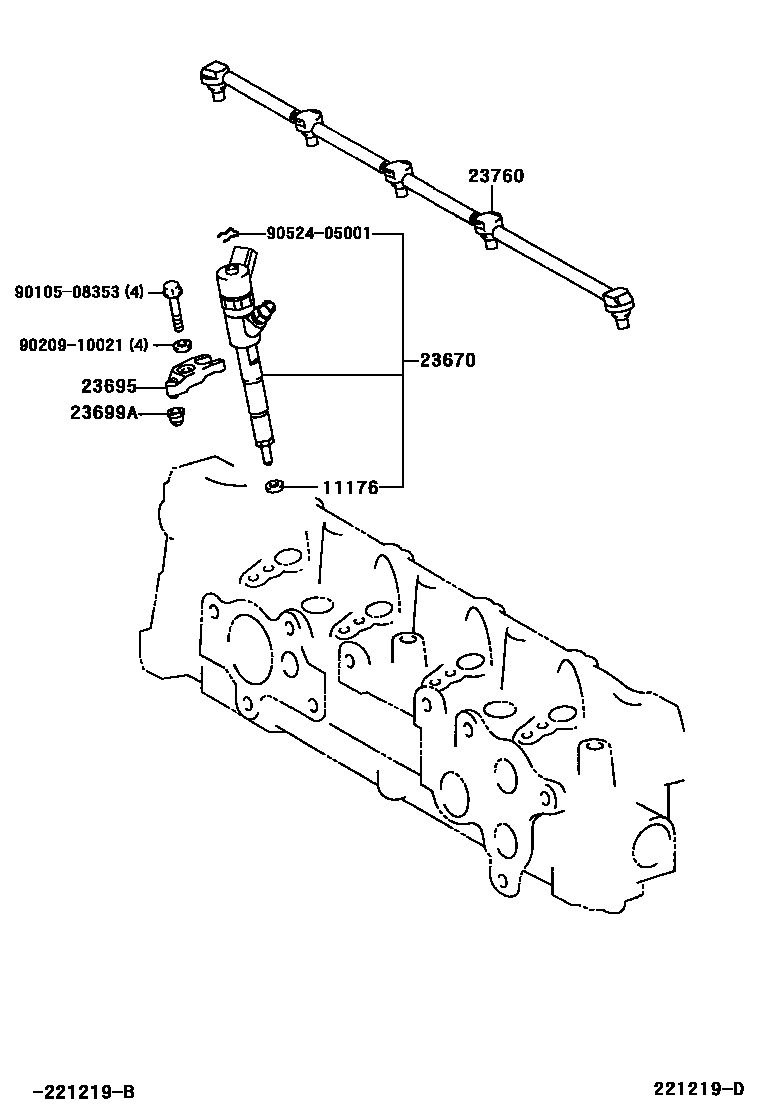

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010×4i1NDTV..NLP10..JPP200110-200212

23670INJECTOR ASSY

main23670-39055-A0×4i1NDTV..NLP10..JPP200110-200212

MARK A,MARK A

main23670-39055-B0×4i1NDTV..NLP10..JPP200212

MARK B,MARK B

main23670-39055-C0×4i1NDTV..NLP10..JPP200212

MARK C,MARK C

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-33010×4i1NDTV..NLP10..JPP200110-200212

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33010×4i1NDTV..NLP10..JPP200411

main23699-74010×4i1NDTV..NLP10..JPP200212-200411

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-33010i1NDTV..NLP10..JPP200110-200212

9010508353

main90105-08353

9020910021

main90209-10021

9052405001

main90524-05001

8 parts on this diagram · 1 diagram in section
