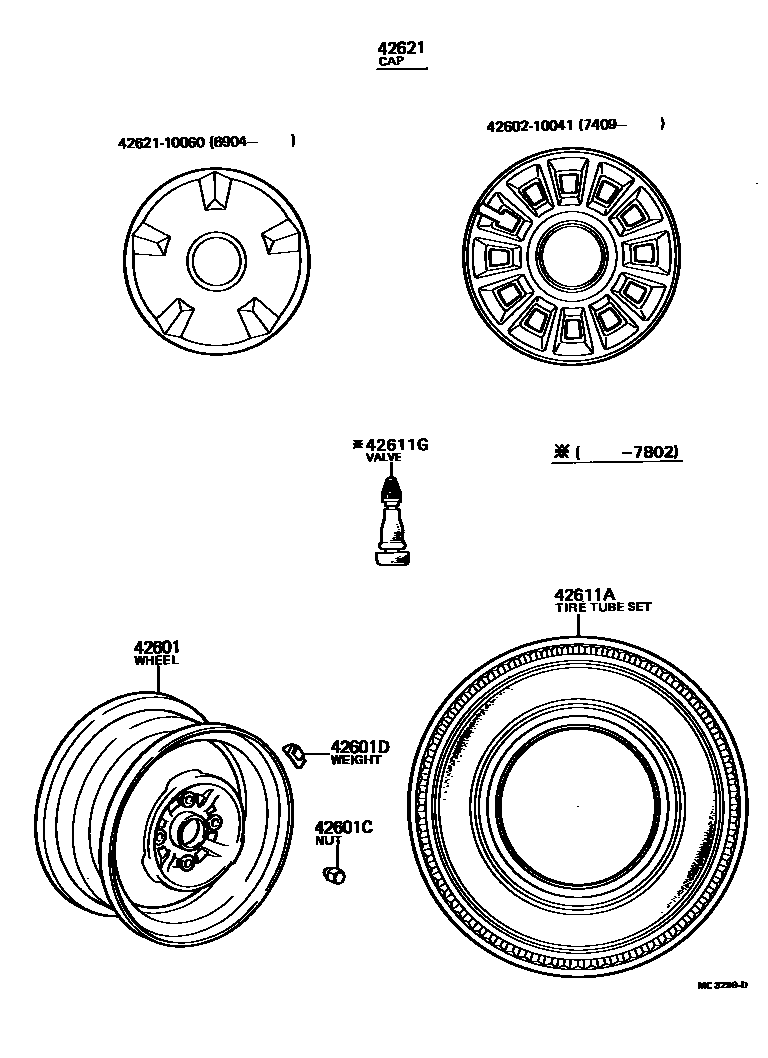

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-10110×4iKP30..LHD197409-197512

4.5J-12

main42611-10111×4iKP30,36..(SED,V)..LHD197610-197809

4.5J-12

main42611-12011×4iKP36197201-197404

main42611-12080×4iKP3#..SED,V197201-197404

13X4J,"0"MARK

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iKP3#196904-198808

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iKP3#196904-198808

20G,T=8,20G

main90942-03020iKP3#196904-198808

30G,T=10,30G

main90942-03022iKP3#196904-198808

40G,T=9.5,40G

main90942-03025iKP3#196904-198808

50G,T=9.5,50G

main90942-03027iKP3#196904-198808

60G,T=9.5,60G

main90942-03029iKP3#196904-198808

70G,T=9.5,70G

main90942-03031iKP3#196904-198808

80G,T=9.5,80G

main90942-03041iKP3#196904-198808

10G,T=7.5,10G

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-10020×4iKP30,36..(SED,V)..RHD197512-197809

155SR,ENGRAND SPEC

main42652-10010×4iKP30197201-197802

6.00-12-4,BLACK,T/L

main42652-10020×4iKP30197201-197511

6.00-12-4,T/L,WSW

main42652-10030×4iKP30197207-197802

6.00S12-4,T/L

main42652-10040×4iKP30..LHD197404-197802

6.00-12-4,BLACK,T/L

main42652-10050×4iKP30197404-197511

6.00-12-4,T/L,WSW

main98010-60122×4iKP30196904-197112

6.00-12-4,WSW

main98010-60123×4iKP36..V196904-197511

6.00-12-6,WSW

main98011-60122×4iKP30196904-197802

6.00-12-4,BLACK

main98011-60123×4iKP36..V196904-197112

6.00-12-6,BLACK

main98013-60122×4iKP30196904-197511

6.00-12-4,WSW

main98013-60123×4iKP36..V196904-197112

6.00-12-6,WSW

main98014-60122×4iKP30196904-197112

6.00-12-4,SNOW

main98019-60122×4iKP30196904-197112

6.00-12-4,BLACK

main98019-60123×4iKP36..V196904-197809

6.00-12-6,BLACK,W/T

main98038-61120×4iKP30..LHD197409-197512

155SR-12

main98039-61120×4iKP30197104-197410

155SR-12

main98051-50122×4iKP36..V196904-197809

5.00-12-4,BLACK,W/T

main98051-50123×4iKP37197707-198108

5.00-12-6,BLACK,W/T

main98053-50122×4iKP36..V196904-197511

5.00-12-4,WSW

main98053-50123×3iKP36..PIC196911-197511

5.00-12-6,RR,WSW

main98054-50122×2iKP36..PIC196911-197112

5.00-12-4,FR,SNOW

main98054-50123×2iKP36..PIC196911-197112

5.00-12-6,RR,SNOW

main98510-60122×4iKP30196904-197112

6.00-12-4,T/L,WSW

main98510-60123×4iKP36..V196904-197112

6.00-12-6,WSW,T/L

main98511-60122×4iKP30196904-197112

6.00S12,BLACK,T/L

main98511-60123×4iKP36..V196904-197112

6.00-12-6,BLACK,T/L

main98513-60122×4iKP30196904-197112

6.00-12-4,T/L,WSW

main98513-60123×4iKP36..V196904-197112

6.00-12-6,WSW,T/L

main98518-60122×4iKP30196904-197112

6.00S12,T/L,WSW

main98518-60123×4iKP36..V196904-197112

6.00-12-6,BLACK,T/L

main98519-60122×4iKP30196904-197802

6.00-12-4,BLACK,T/L

main98519-60123×4iKP36..V196904-197809

6.00-12-6,BLACK,T/L

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iKP30,36196904-197802

42621CAP, WHEEL

main42602-10041×4iKP30..LHD197409-197512

main42621-10060×4iKP3#196904-198808

OD=228

4260210041CAP SUB-ASSY, WHEEL

main42602-10041

4262110060CAP, WHEEL

main42621-10060

8 parts on this diagram · 1 diagram in section
