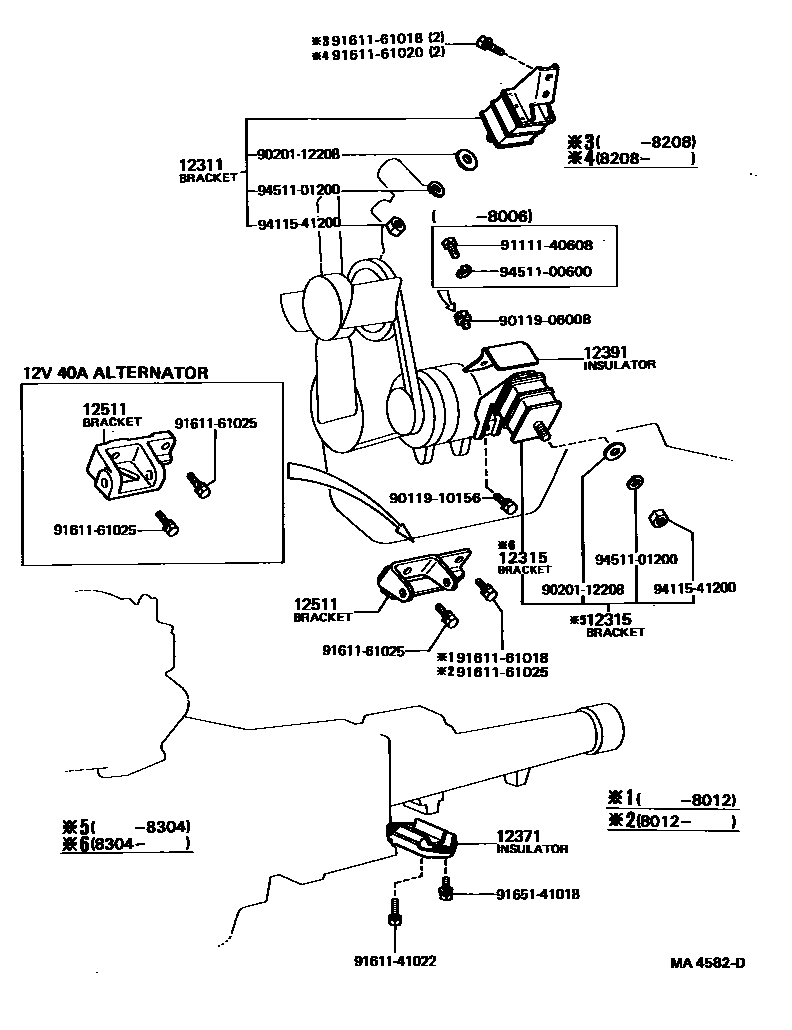

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-29016i2K..KP3#196904-197405

main12301-29018i2K,3KH..KP3#197405-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-22023i2K..KP36198304-198808

main12302-29016i2K..KP3#196904-197405

main12302-29017i2K..KP3#197405-197705

main12302-29018i2K,3KH..KP3#197705-198304

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-22010i2K..KP30,36196904-198808

main12371-24010i3KH..KP37197707-197906

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-22010i2K,3KH..KP3#196904-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-22012i2K..KP3#196904-197209

main12511-22013i2K..KP3#197209-197302

main12511-22014i2K..KP3#197302-197610

12V 30A ALTERNATOR

main12511-22015i2K,3KH..KP3#197610-198012

12V 30A ALTERNATOR

main12511-22016i2K,3KH..KP3#198012-198101

12V 30A ALTERNATOR

main12511-24011i2K..KP30197405-197802

12V 40A ALTERNATOR

9011906008

main90119-06008

9011910156

main90119-10156

9020112208

main90201-12208

9111140608

main91111-40608

9161141022

main91611-41022

9161161018

main91611-61018

9161161020

main91611-61020

9161161025

main91611-61025

9165141018

main91651-41018

9411541200

main94115-41200

9451100600

main94511-00600

9451101200

main94511-01200

17 parts on this diagram · 1 diagram in section
