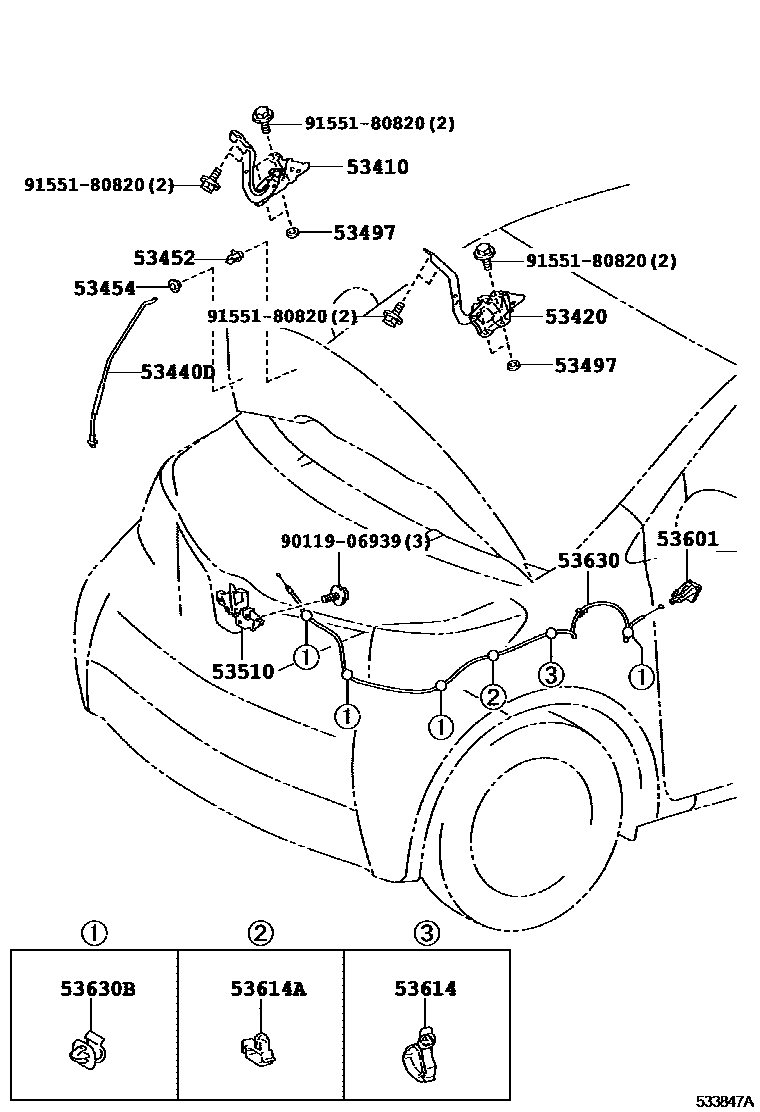

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-74020iKPJ10201209-201212

53420HINGE ASSY, HOOD, LH

main53420-74020iKPJ10201209

53440DSUPPORT ASSY, HOOD

main53440-74010iKPJ10201209

53452HOLDER, HOOD STAY

main53452-74010iKPJ10201209

53454CLIP, HOOD SUPPORT ROD

main53454-74010iKPJ10201209

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iKPJ10201209

T=2.0

main53497-42010×4iKPJ10201209

T=0.5

53510LOCK ASSY, HOOD

main53510-74021iKPJ10201209

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iKPJ10201209-201212

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-12040iKPJ10201209

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-74010iKPJ10201209

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-74010iKPJ10201209

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×4iKPJ10201209

9011906939

main90119-06939

9155180820

main91551-80820

14 parts on this diagram · 1 diagram in section
