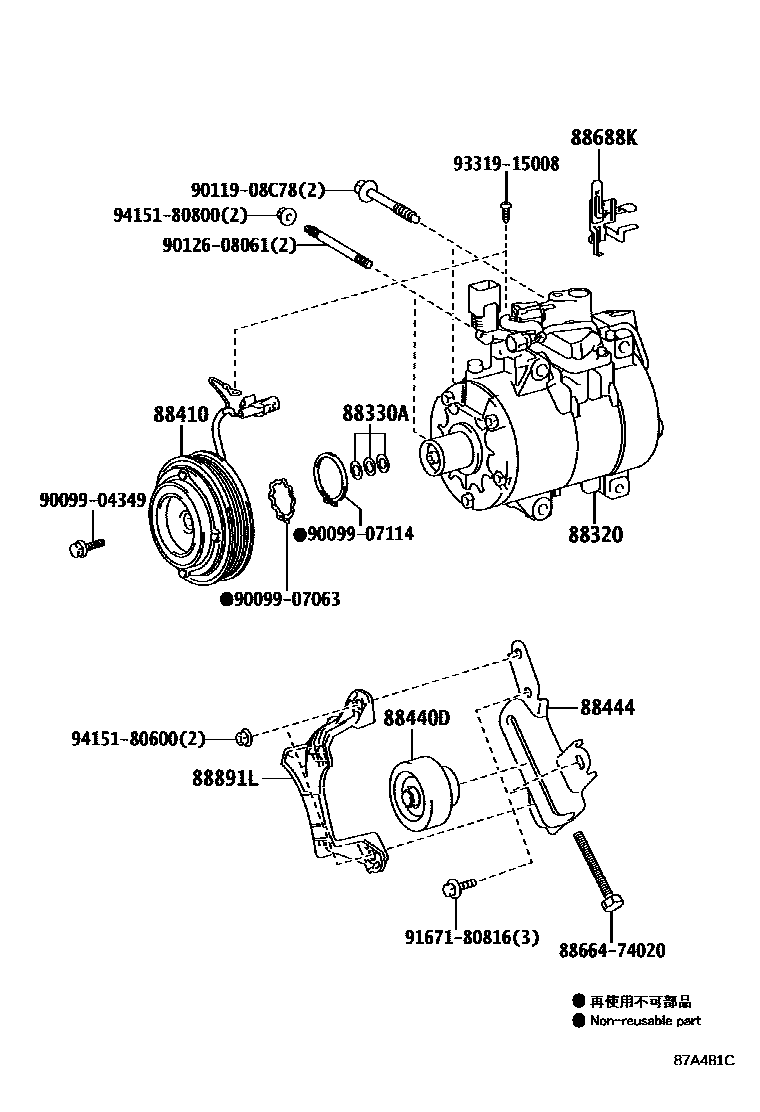

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-74030iNGJ10,NUJ10; NGJ10,NUJ10..N200811-201210

FRONT AIR CONDITIONER-WITHOUT

main88320-74060iNGJ10; NGJ10..N201210-201405

FRONT AIR CONDITIONER-WITHOUT

main88320-74010iKGJ10200811-201210

FRONT AIR CONDITIONER-WITHOUT

main88320-74050iKGJ10201210-201405

FRONT AIR CONDITIONER-WITHOUT

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKGJ10,NGJ10,NUJ10; NGJ10..N;KGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88410CLUTCH ASSY, MAGNET

main88410-74020iNUJ10200811-201205

FRONT AIR CONDITIONER-WITHOUT

main88410-74030iNGJ10; NGJ10..N200905-201405

FRONT AIR CONDITIONER-WITHOUT

main88410-74010supersedes 88410-74040iKGJ10200811-200903

FRONT AIR CONDITIONER-WITHOUT

main88410-74040iKGJ10200903-201405

FRONT AIR CONDITIONER-WITHOUT

88440DPULLEY ASSY, IDLE NO.2

main88440-74010iKGJ10,NGJ10,NUJ10; NGJ10..N;KGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88444BRACKET, IDLE PULLEY

main88444-74030iNGJ10200905-201107

FRONT AIR CONDITIONER-WITHOUT

main88444-74050iNUJ10201109-201205

FRONT AIR CONDITIONER-WITHOUT

main88444-74060iNGJ10; NGJ10..N201107-201405

FRONT AIR CONDITIONER-WITHOUT

main88444-74010supersedes 88444-74040iKGJ10200811-201006

FRONT AIR CONDITIONER-WITHOUT

main88444-74020supersedes 88444-74050iNUJ10..LHD200811-201102

FRONT AIR CONDITIONER-WITHOUT

main88444-74040iKGJ10201006-201405

FRONT AIR CONDITIONER-WITHOUT

88688KBRACKET, COOLER COMPRESSOR

main88688-74050iKGJ10,NGJ10,NUJ10; NGJ10..N;KGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88891LCOVER, COOLER, NO.1

main88891-74020iNUJ10201109-201205

FRONT AIR CONDITIONER-WITHOUT

main88891-74030iNGJ10; NGJ10..N201107-201405

FRONT AIR CONDITIONER-WITHOUT

main88891-74010iKGJ10201006-201405

FRONT AIR CONDITIONER-WITHOUT

8866474020BOLT, IDLER ADJUSTING (FOR COOLER IDLER PULLEY AND BELT)

main88664-74020

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9012608061

main90126-08061

9167180816

main91671-80816

9331915008

main93319-15008

9415180600

main94151-80600

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
