HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1W(STOVE HEATER) 0005 1 0006 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

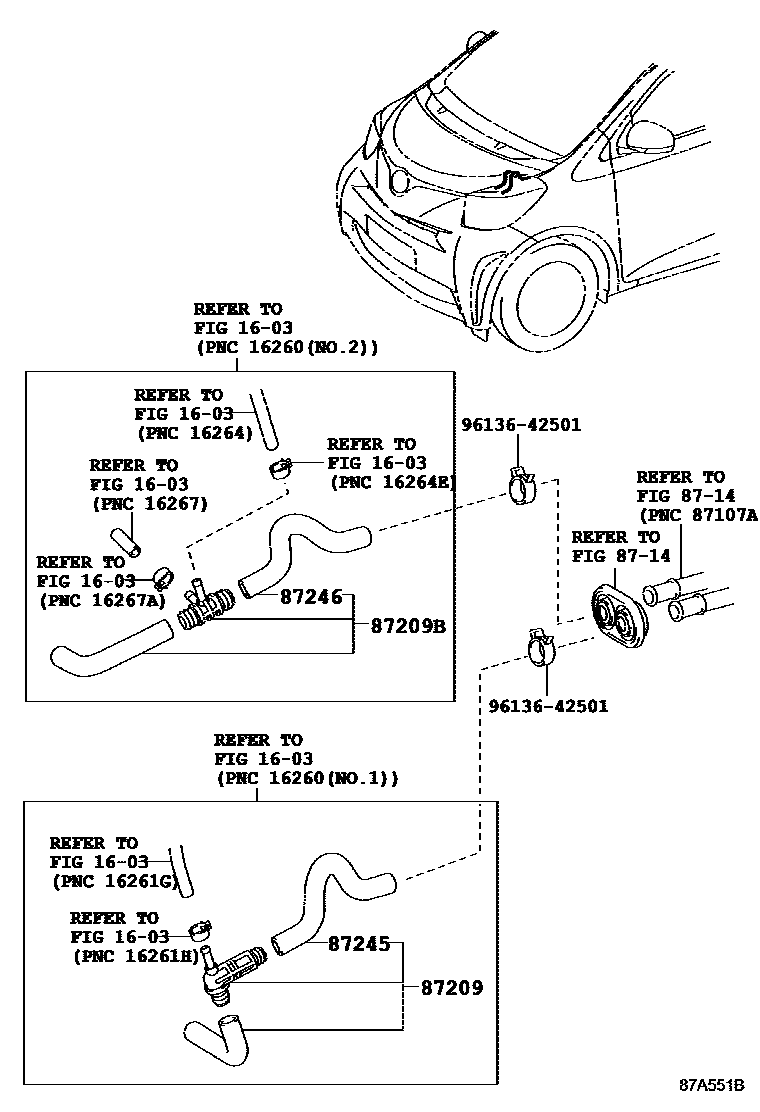

87209HOSE SUB-ASSY, WATER

main87209-74010iKGJ10..5F200811-201405

main87209-74030iKGJ10..CVFC200811-201405

87209BHOSE SUB-ASSY, WATER, B

main87209-74020iKGJ10..5F200811-201405

main87209-74040iKGJ10..CVFC200811-201405

87245HOSE, HEATER WATER, INLET

main87245-74051iNUJ10200811-201205

main87245-74091iNGJ10..CVFC200905-201405

main87245-74110iNGJ10..6F200905-201405

main87245-74120iKGJ10200811-201405

87246HOSE, HEATER WATER, OUTLET

main87245-74061iNUJ10200811-201205

main87245-74101iNGJ10..6F200905-201102

main87245-74130iKGJ10200811-201405

main87245-74150iNGJ10..6F201103-201405

9613642501

main96136-42501

7 parts on this diagram · 6 diagrams in section
