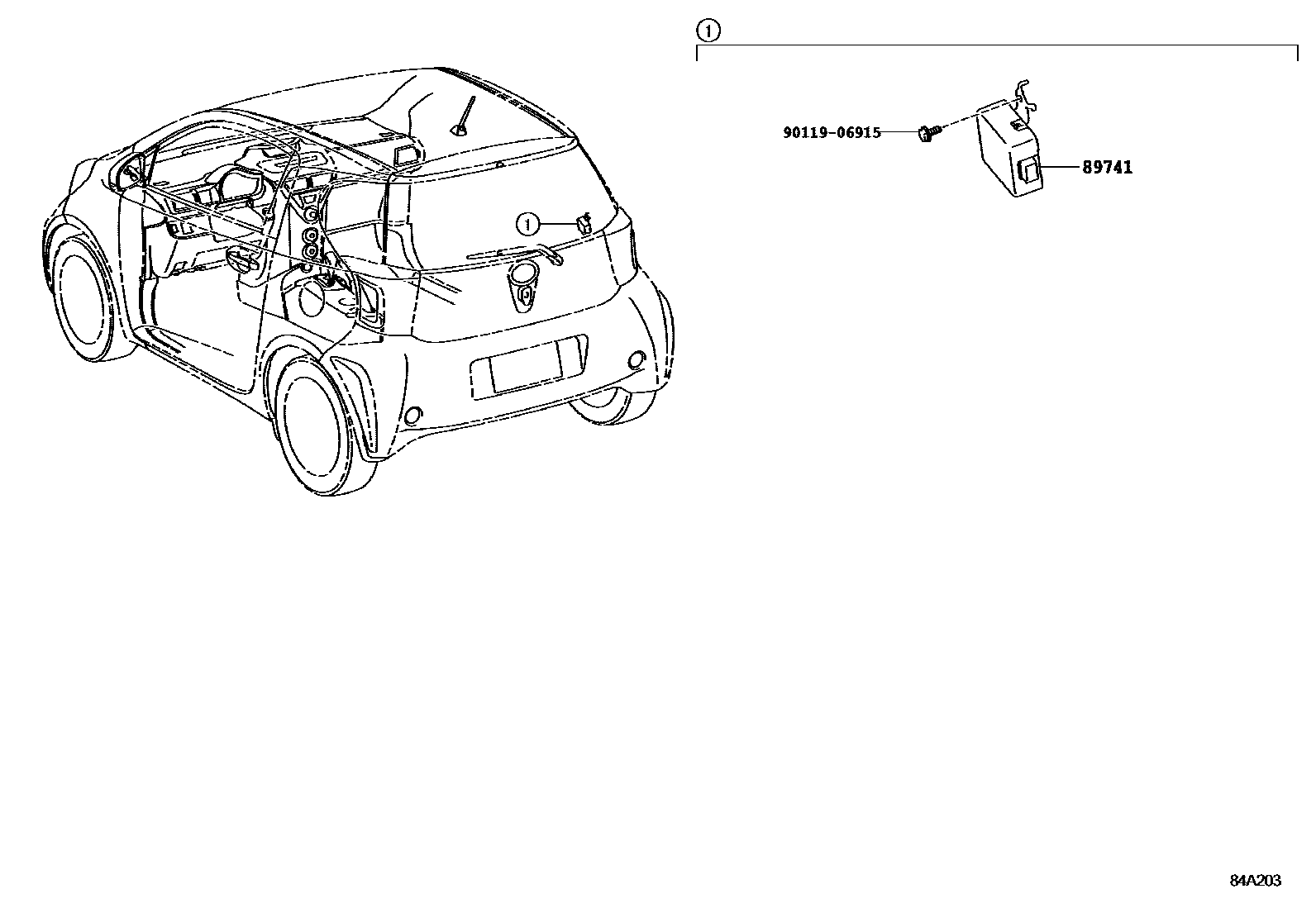

WIRELESS DOOR LOCK

0001 1W/O(SMART KEY) 0002 1W(SMART KEY) 0003 1W/O(SMART KEY) 0004 1W(SMART KEY)

89741RECEIVER, DOOR CONTROL

main89740-74020supersedes 89741-52262iNGJ10..RHD..R;NGJ10..RHD..CVFC201204-201405

main89741-74090iKGJ10;NGJ10..LHD201305-201405

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

main89741-52262iNGJ10..RHD..CVFC200811-201204

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

9011906915

main90119-06915

2 parts on this diagram · 4 diagrams in section
