BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-74010iNGJ10..R;KGJ10,NGJ10..5F,CVFC200811-201405

main74404-74020iNGJ10,NUJ10..6F200811-201205

74411BBRACKET, BATTERY, FRONT

main74401-74010iKGJ10,NGJ10,NUJ10200811-201405

74412ACARRIER, BATTERY, NO.2

main74410-74010iKGJ10..R;KGJ10,NGJ10..CVFC200811-201205

main74410-74011iKGJ10,NGJ10201206-201405

74413BOLT, BATTERY CLAMP

main74451-58011iKGJ10,NGJ10,NUJ10200811-201206

main74451-74030iKGJ10,NGJ10201206-201405

74415BREINFORCEMENT, BATTERY BRACKET, REAR

main74415-74510iKGJ10,NGJ10,NUJ10200811-201405

74431TRAY, BATTERY

main74431-52010iNGJ10,NUJ10..6F200811-201205

main74431-52020iNGJ10..R;KGJ10,NGJ10..5F,CVFC200811-201405

main74431-14030iNUJ10..LHD200811-200907

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

main74431-52040iNUJ10..LHD200908-201205

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

9017906146

main90179-06146

91671J0820

main91671-J0820

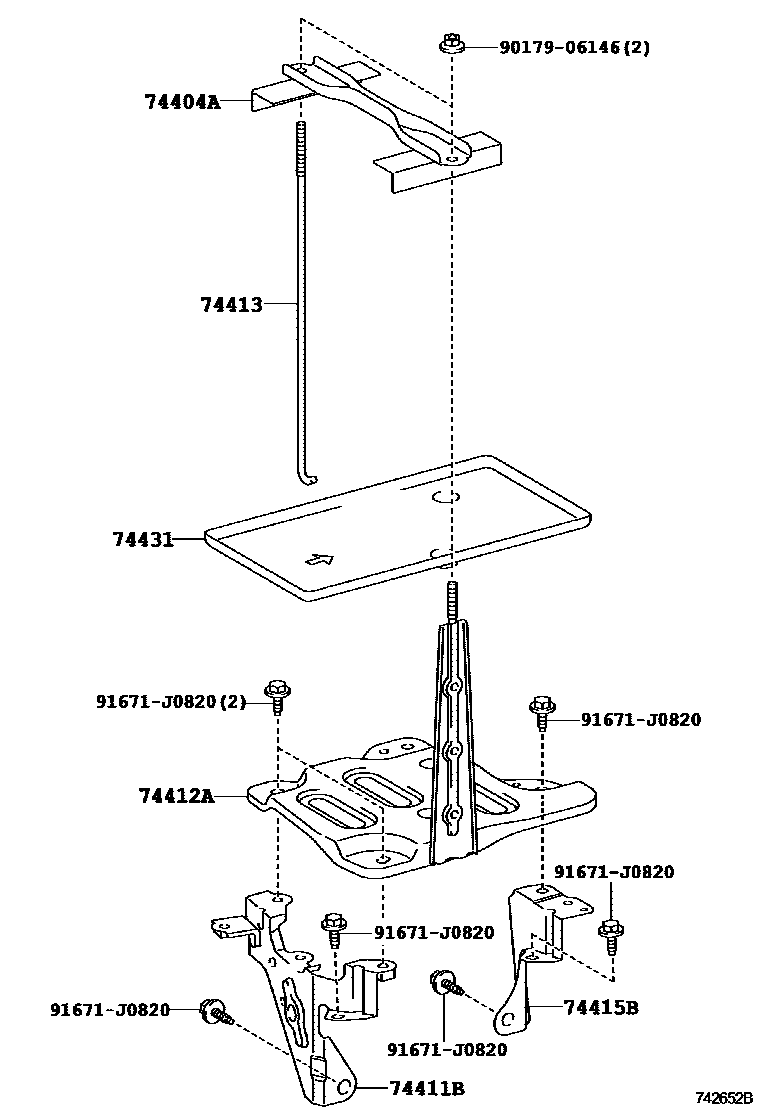

8 parts on this diagram · 1 diagram in section
