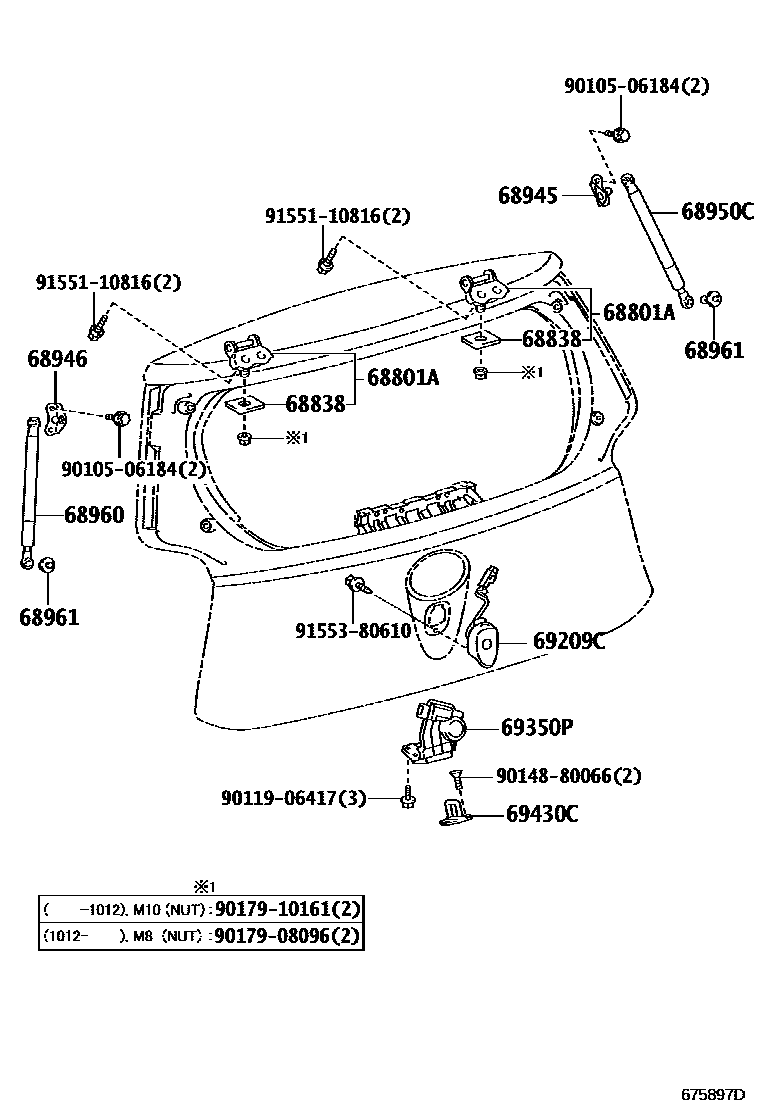

BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
T=1.1
T=0.5
T=1.0
T=1.5
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69209CHANDLE SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
ORANGE ME.,4R8
GRAYISH BLUE ME.,8R3
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070; WIRELESS DOOR LOCK-SMART KEY,WHITE PEARL CS.,070
SILVER ME.,1F7; WIRELESS DOOR LOCK-SMART KEY,SILVER ME.,1F7
GRAY ME.,1G3; WIRELESS DOOR LOCK-SMART KEY,GRAY ME.,1G3
BLACK MC.,209; WIRELESS DOOR LOCK-SMART KEY,BLACK MC.,209
SUPER RED 5,3P0 ,3S9
BRONZE M.M.,4T3
ORANGE ME.,4R8; WIRELESS DOOR LOCK-SMART KEY,ORANGE ME.,4R8
GRAYISH BLUE ME.,8R3; WIRELESS DOOR LOCK-SMART KEY,GRAYISH BLUE ME.,8R3
DEEP AMETHYST M.M.,2LT ,9AH; WIRELESS DOOR LOCK-SMART KEY,DEEP AMETHYST M.M.,2LT ,9AH
WHITE PEARL CS.,070; WIRELESS DOOR LOCK-SMART KEY,WHITE PEARL CS.,070
SILVER ME.,1F7; WIRELESS DOOR LOCK-SMART KEY,SILVER ME.,1F7
GRAY ME.,1G3; WIRELESS DOOR LOCK-SMART KEY,GRAY ME.,1G3
BLACK MC.,209 ,2LR; WIRELESS DOOR LOCK-SMART KEY,BLACK MC.,209 ,2LR
SUPER RED 5,3P0; WIRELESS DOOR LOCK-SMART KEY,SUPER RED 5,3P0
ORANGE ME.,4R8; WIRELESS DOOR LOCK-SMART KEY,ORANGE ME.,4R8
BRONZE M.M.,4T3; WIRELESS DOOR LOCK-SMART KEY,BRONZE M.M.,4T3
GRAYISH BLUE ME.,8R3; WIRELESS DOOR LOCK-SMART KEY,GRAYISH BLUE ME.,8R3
DEEP AMETHYST M.M.,2LT ,9AH; WIRELESS DOOR LOCK-SMART KEY,DEEP AMETHYST M.M.,2LT ,9AH
WIRELESS DOOR LOCK-SMART KEY,SILKY GOLD M.M.,5A7
WIRELESS DOOR LOCK-SMART KEY,JADE GREEN METALLIC,6V5
WIRELESS DOOR LOCK-SMART KEY,BLUE ME.,8T7
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9011906417
main90119-06417
9014880066
main90148-80066
9017908096
main90179-08096
9017910161
main90179-10161
9155110816
main91551-10816
9155380610
main91553-80610
17 parts on this diagram · 1 diagram in section
