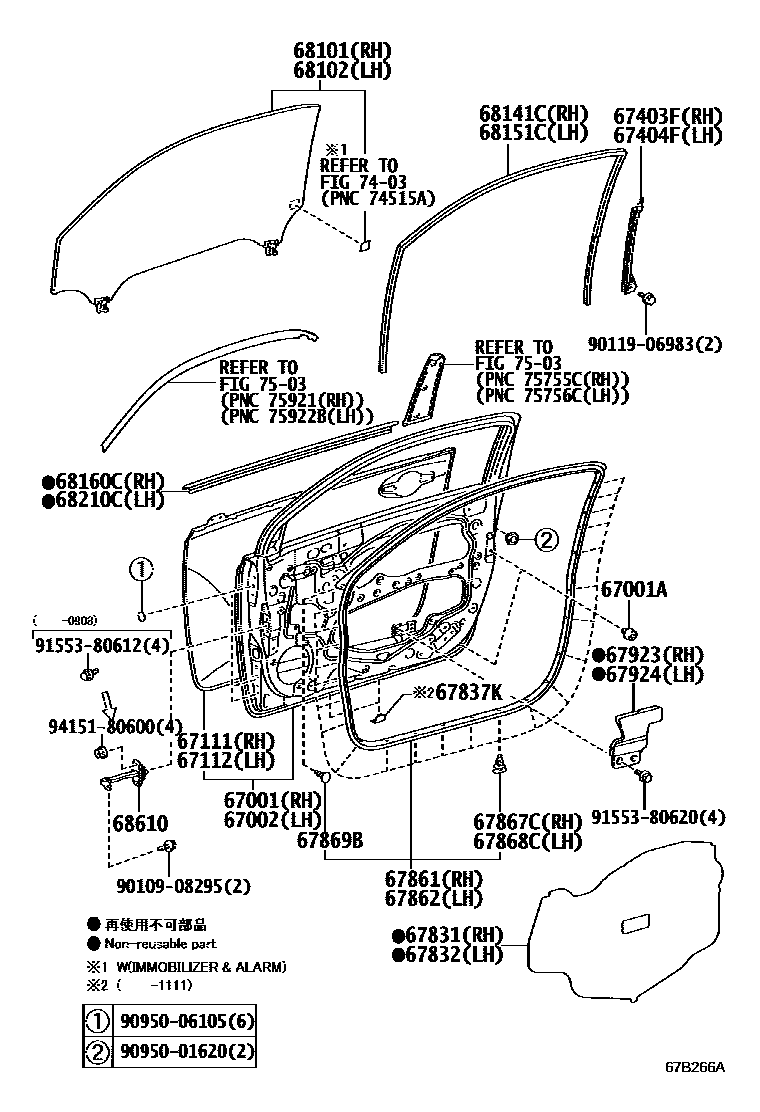

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-74010iKGJ10,NGJ10,NUJ10200811-201206

main67001-74050iKGJ10,NGJ10201206-201405

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iKGJ10,NGJ10,NUJ10200811-201405

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-74010iNGJ10..N;KGJ10,NUJ10200811-201206

main67002-74050iKGJ10,NGJ10201206-201405

67111PANEL, FRONT DOOR, OUTER RH

main67111-74010iKGJ10,NGJ10,NUJ10200811-201405

67112PANEL, FRONT DOOR, OUTER LH

main67112-74010iKGJ10,NGJ10,NUJ10200811-201405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-74010iKGJ10,NGJ10,NUJ10200811-201405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-74010iKGJ10,NGJ10,NUJ10200811-201405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-74010iKGJ10,NGJ10,NUJ10200811-201010

main67831-74020iKGJ10,NGJ10,NUJ10201011-201405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-74010iKGJ10,NGJ10,NUJ10200811-201010

main67832-74020iKGJ10,NGJ10,NUJ10201011-201405

67837KSEAL, FRONT DOOR VENT

main67837-74010iKGJ10,NGJ10,NUJ10200811-201111

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-74010iKGJ10,NGJ10,NUJ10200811-201405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-74010iKGJ10,NGJ10,NUJ10200811-201405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iKGJ10,NGJ10,NUJ10200811-201405

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iKGJ10,NGJ10,NUJ10200811-201405

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-24010iKGJ10,NGJ10,NUJ10200811-201405

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-74010iKGJ10,NGJ10,NUJ10200811-201004

main67923-74011iKGJ10,NGJ10,NUJ10201005-201405

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-74010iKGJ10,NGJ10,NUJ10200811-201004

main67924-74011iKGJ10,NGJ10,NUJ10201005-201405

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-74010iKGJ10,NGJ10,NUJ10200811-201008

*UVCT,T=3.1,GREEN

main68110-74011iKGJ10..RHD..R201009-201405

*UVCT,T=3.1,GREEN

main68110-74021iKGJ10..RHD..R201304-201405

*UVCT,T=3.1,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-74010iKGJ10,NGJ10,NUJ10200811-201008

*UVCT,T=3.1,GREEN

main68120-74011iKGJ10..RHD..R201009-201405

*UVCT,T=3.1,GREEN

main68120-74021iKGJ10..RHD..R201304-201405

*UVCT,T=3.1,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-74010iKGJ10,NGJ10,NUJ10200811-201012

main68141-74011iKGJ10,NGJ10,NUJ10201101-201208

main68141-74012iKGJ10,NGJ10201208-201405

68151CRUN, FRONT DOOR GLASS, LH

main68151-74010iKGJ10,NGJ10,NUJ10200811-201012

main68151-74011iKGJ10,NGJ10,NUJ10201101-201208

main68151-74012iKGJ10,NGJ10201208-201405

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-74010iKGJ10,NUJ10200811-200906

main68160-74030iKGJ10,NGJ10,NUJ10200906-201107

main68160-74031iKGJ10,NGJ10,NUJ10201108-201405

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-74010iKGJ10,NUJ10200811-200906

main68210-74030iKGJ10,NGJ10,NUJ10200906-201107

main68210-74031iKGJ10,NGJ10,NUJ10201108-201405

68610CHECK ASSY, FRONT DOOR

main68610-74010iKGJ10,NUJ10200811-200903

main68610-74011iKGJ10,NGJ10,NUJ10200904-200908

main68610-74030iKGJ10,NGJ10,NUJ10200908-201405

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

7503SIDE MOULDING

→ Go to FIG 75-03

9010908295

main90109-08295

9011906983

main90119-06983

9095001620

main90950-01620

9095006105

main90950-06105

9155380612

main91553-80612

9155380620

main91553-80620

9415180600

main94151-80600

33 parts on this diagram · 2 diagrams in section
