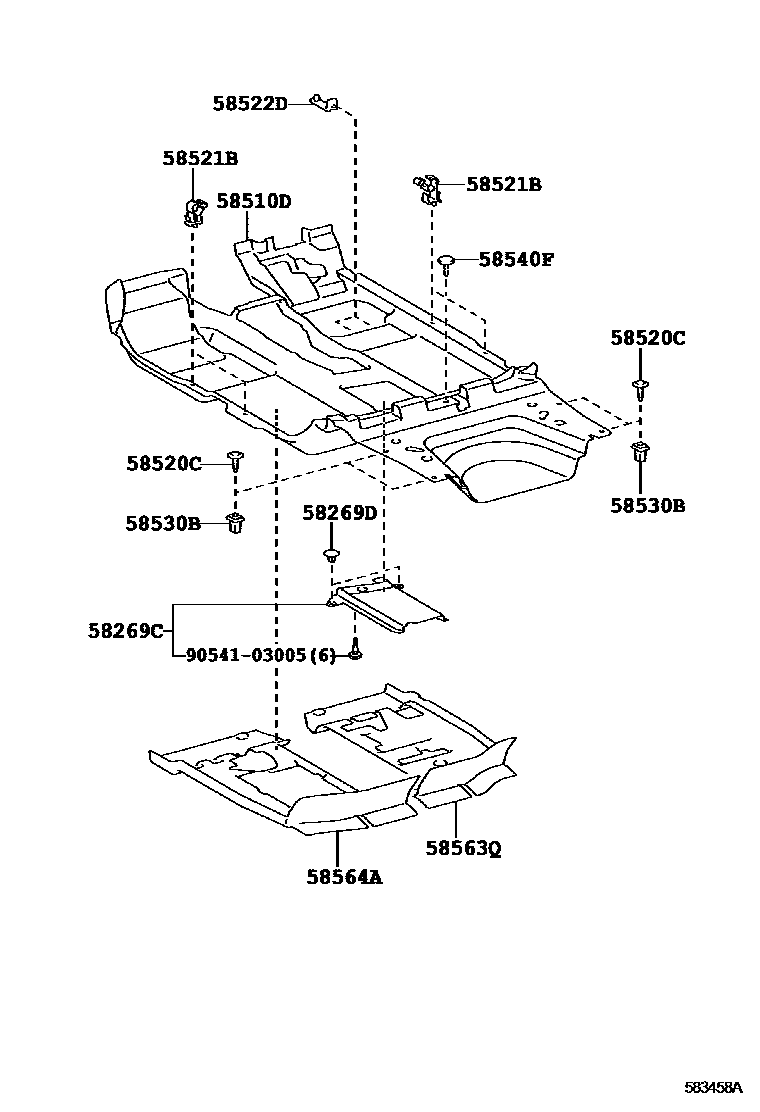

MAT & CARPET
58269CCOVER, PARKING BRAKE CABLE
58269DCLIP, PARKING BRAKE CABLE COVER
BLACK
58510DCARPET ASSY, FLOOR, FRONT
PLUM,TRIM4#,5#
PLUM,TRIM4#,5#
GRAY,TRIM1#,4#,5#,7#
BLACK,TRIM9#
PLUM,TRIM4#,5#
GRAY,TRIM1#,7#
GRAY,TRIM1#,4#,5#,7#
GRAY,TRIM7#
GRAY,TRIM1#,7#
PLUM,TRIM4#,5#
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT,PLUM,TRIM4#,5#
GRAY,TRIM1#,4#,5#,7#
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT,GRAY,TRIM1#,4#,5#,7#
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT,PLUM,TRIM4#,5#
PLUM,TRIM4#,5#
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT,GRAY,TRIM1#,4#,5#,7#
GRAY,TRIM1#,4#,5#,7#
GRAY,TRIM1#,7#
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT,GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
PLUM,TRIM4#,5#
PLUM,TRIM4#,5#
PLUM,TRIM4#,5#
GRAY,TRIM1#,4#,5#,7#
PLUM,TRIM4#,5#
GRAY,TRIM1#,4#,5#,7#
GRAY,TRIM1#,4#,5#,7#
BLACK,TRIM9#
PLUM,TRIM4#,5#
GRAY,TRIM1#,4#,5#,7#
GRAY,TRIM1#,7#
GRAY,TRIM7#
58520CCLIP(FOR FRONT FLOOR CARPET)
DK.GRAY,TRIM4#,5#
DK.GRAY,TRIM1#,4#,5#,7#,9#
DK.GRAY,TRIM1#,7#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
58540FCLIP(FOR REAR FLOOR CARPET)
DK.GRAY,TRIM4#,5#
DK.GRAY,TRIM1#,4#,5#,7#,9#
DK.GRAY,TRIM1#,7#
58563QSILENCER, FRONT FLOOR, NO.3
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
58564ASILENCER, FRONT FLOOR, NO.4
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT
9054103005
main90541-03005
11 parts on this diagram · 1 diagram in section
