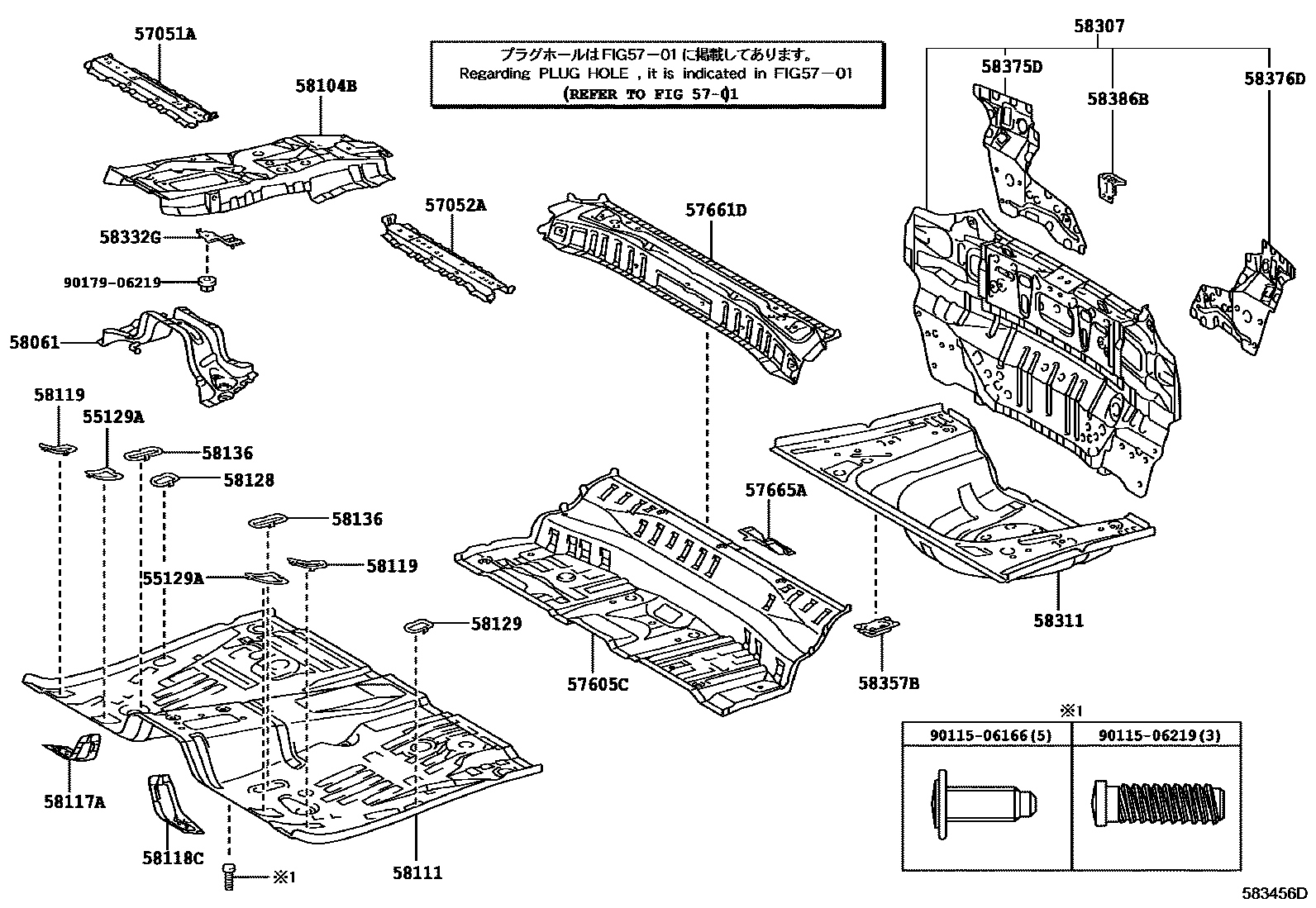

FLOOR PAN & LOWER BACK PANEL
55129ACOVER, FRONT FLOOR HOLE
RH
LH
5701HOLE PLUG
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57661DMEMBER, REAR FLOOR CROSS, FRONT
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
58061SUPPORT SUB-ASSY, FUEL TANK, FRONT
58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58119PLATE, FRONT FLOOR SIDE, FRONT
RH
LH
58128PLATE, FRONT FLOOR, NO.1
58129PLATE, FRONT FLOOR, NO.2
58136COVER, FRONT FLOOR HOLE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376DREINFORCEMENT, BODY LOWER BACK, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9011506166
main90115-06166
9011506219
main90115-06219
9017906219
main90179-06219
26 parts on this diagram · 1 diagram in section
