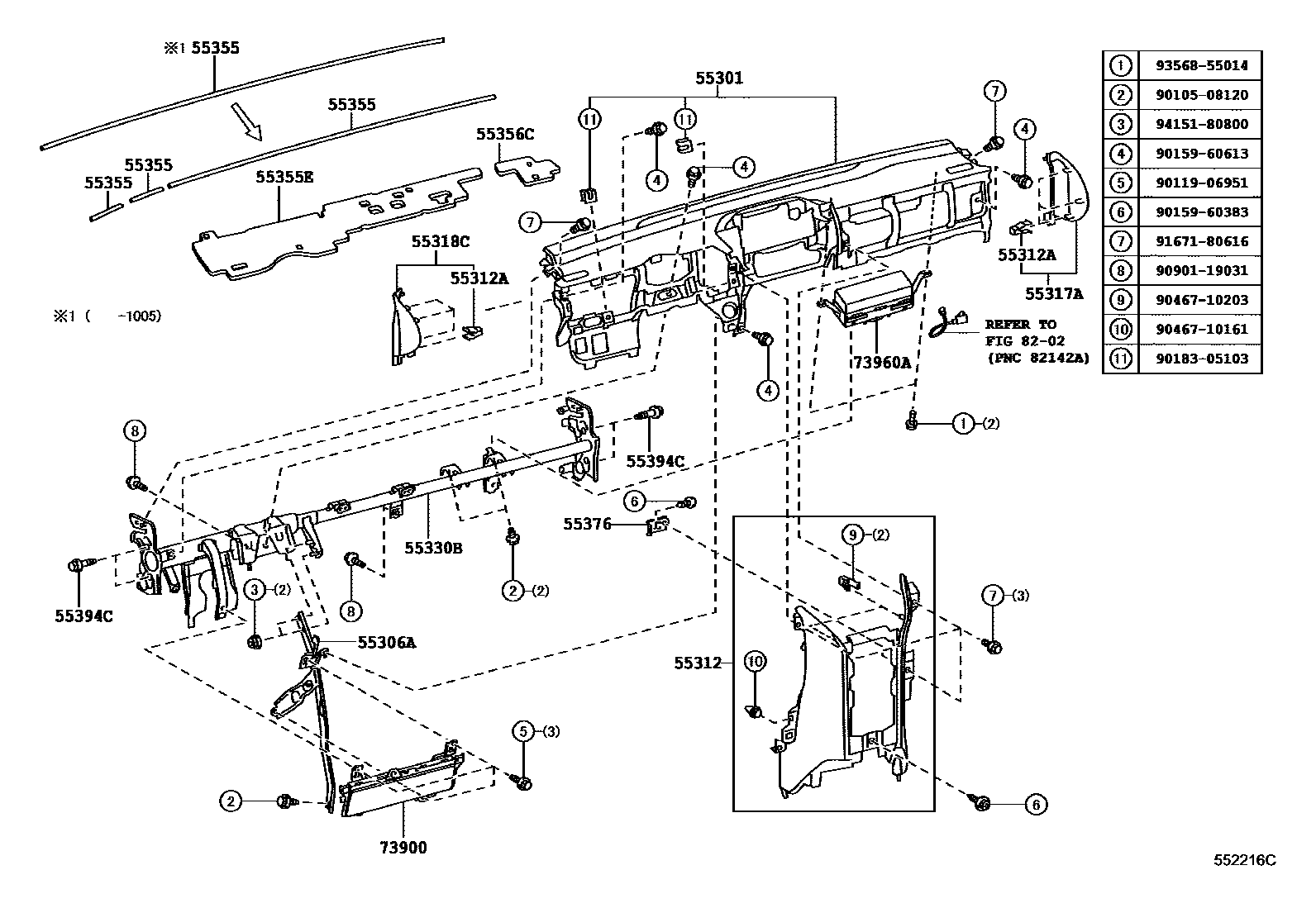

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-74010-C0iKGJ10,NGJ10,NUJ10..LHD..N; KGJ10..LHD..R200911-201005

BLACK,TRIM1#,43,44,53,54,57,58,7#; BLACK,TRIM1#,43,44,53,54,57,58,7#,9#

main55301-74010-E0iKGJ10,NGJ10,NUJ10..LHD200811-200911

PLUM,TRIM4#,5#

main55301-74011-C0iNGJ10..LHD..R201205-201405

BLACK,TRIM1#,7#,9#

main55301-74020-C0iNGJ10..RHD..R201205-201405

BLACK,TRIM1#,7#,9#

main55301-74020-E0iKGJ10,NGJ10,NUJ10..RHD200811-201005

PLUM,TRIM4#,5#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

main55306-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

55312PANEL, INSTRUMENT, LOWER

main55312-74010-B0iNGJ10..LHD..R201005-201405

LT.GRAY,TRIM1#,7#

main55312-74010-C0iNGJ10..LHD201005-201405

BLACK,TRIM9#

main55312-74010-E0iKGJ10,NGJ10,NUJ10..LHD201008-201205

PLUM,TRIM10,12,13,4#,5#

main55312-74020-B0iKGJ10,NGJ10..RHD..N; KGJ10..RHD..R201008-201205

LT.GRAY,TRIM14,15,7#; LT.GRAY,TRIM15,7#

main55312-74020-C0iNGJ10..RHD201008-201405

BLACK,TRIM9#

main55312-74020-E0iKGJ10,NGJ10..RHD201005-201205

PLUM,TRIM10,12,13,4#,5#

55312ACLIP, INSTRUMENT PANEL

main90467-10201×7iKGJ10,NGJ10,NUJ10200811-201405

55317APANEL, INSTRUMENT SIDE, RH

main55317-74010-C0iNGJ10..LHD..N;KGJ10,NUJ10..LHD200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

main55317-74020-C0iKGJ10..RHD;NGJ10..RHD..N200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-74010-C0iNGJ10..LHD..N;KGJ10,NUJ10..LHD200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

main55318-74020-C0iNUJ10..RHD200811-201003

BLACK,TRIM1#,4#,5#,7#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-74010iNGJ10..LHD..R;KGJ10,NUJ10..LHD;NGJ10..LHD..CVFC200811-201405

main55330-74020iNGJ10..RHD..R;KGJ10,NUJ10..RHD;NGJ10..RHD..CVFC200811-201405

main55330-74030iNGJ10..LHD..6F200905-201205

main55330-74040iNGJ10..RHD..6F200905-201205

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090iKGJ10,NGJ10,NUJ10..RHD200811-201405

main55355-74030iKGJ10,NGJ10,NUJ10..LHD201005-201405

L=1017

main55355-74040×2iKGJ10,NGJ10,NUJ10..LHD201005-201405

L=100

55355ECUSHION, INSTRUMENT PANEL

main55355-74010iKGJ10,NGJ10,NUJ10200811-201405

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-74010iKGJ10,NGJ10,NUJ10200811-201405

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-74010iKGJ10,NGJ10,NUJ10200811-201405

55394CBOLT, INSTRUMENT PANEL

main55394-74010×4iKGJ10,NGJ10,NUJ10200811-201405

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-74010-B0iKGJ10,NGJ10,NUJ10..LHD..N; KGJ10..LHD..R201005-201405

LT.GRAY,TRIM14,15,16,7#; LT.GRAY,TRIM15,16,7#

main73900-74010-C0iKGJ10,NGJ10..LHD..(5F,CVFC); NGJ10..LHD..R201205-201405

BLACK,TRIM10,12,13,4#,5#,9#; BLACK,TRIM9#

main73900-74010-E0iKGJ10,NGJ10,NUJ10..LHD200811-201005

PLUM,TRIM1#,4#,5#

main73900-74020-B0iKGJ10,NGJ10..RHD..N; KGJ10..RHD..R201005-201405

LT.GRAY,TRIM14,15,16,7#; LT.GRAY,TRIM15,16,7#

main73900-74020-C0iKGJ10,NGJ10..RHD201005-201205

BLACK,TRIM10,12,13,43,44,53,54,57,58,9#

main73900-74020-E0iKGJ10,NGJ10..RHD201005-201205

PLUM,TRIM1#,4#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-74010iKGJ10,NGJ10,NUJ10200811-201301

main73960-74011iKGJ10,NGJ10201302-201405

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9011906951

main90119-06951

9015960383

main90159-60383

9015960613

main90159-60613

9018305103

main90183-05103

9046710161

main90467-10161

9046710203

main90467-10203

9090119031

main90901-19031

9167180616

main91671-80616

9356855014

main93568-55014

9415180800

main94151-80800

26 parts on this diagram · 8 diagrams in section
