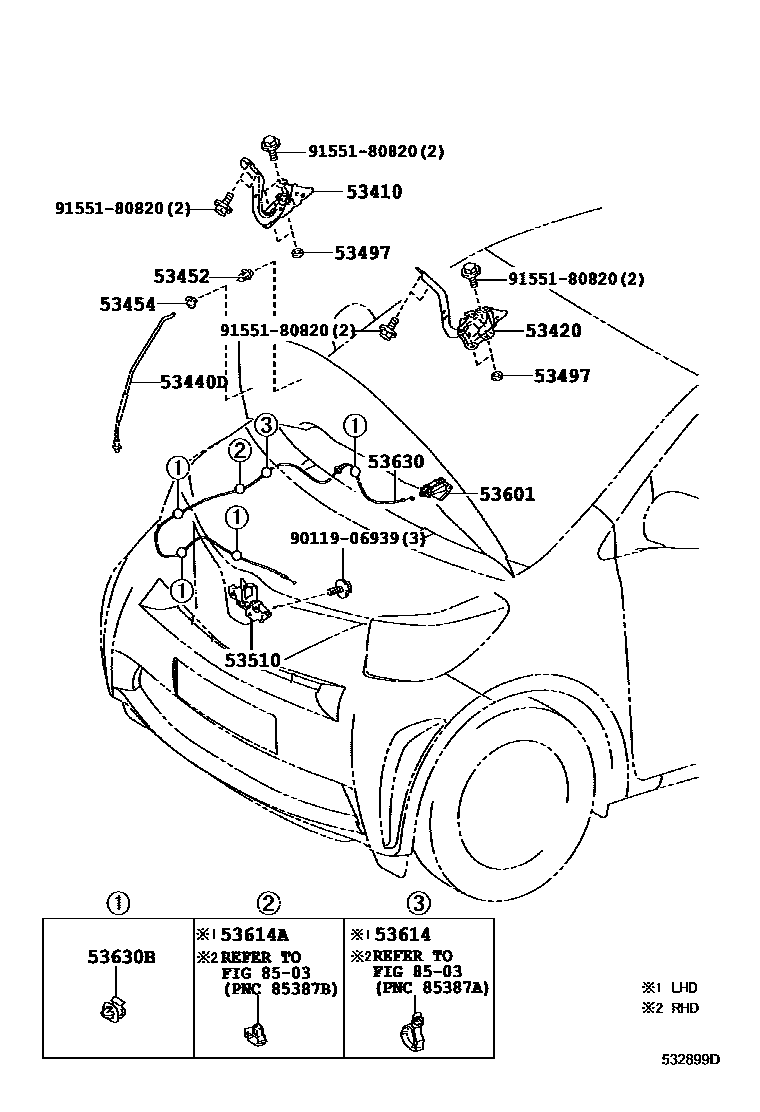

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-74020iKGJ10,NGJ10,NUJ10200811-201405

53420HINGE ASSY, HOOD, LH

main53420-74020iKGJ10,NGJ10,NUJ10200811-201405

53440DSUPPORT ASSY, HOOD

main53440-74010iKGJ10,NGJ10,NUJ10200811-201405

53452HOLDER, HOOD STAY

main53452-74010iKGJ10,NGJ10,NUJ10200811-201405

53454CLIP, HOOD SUPPORT ROD

main53454-74010iKGJ10,NGJ10,NUJ10200811-201405

53497PAD, HOOD HINGE, NO.1

main53497-42010×2iKGJ10,NGJ10,NUJ10200811-201405

T=0.5

53510LOCK ASSY, HOOD

main53510-74010iNUJ10;KGJ10,NGJ10..5F,CVFC200811-201202

main53510-74011iNGJ10..R;NGJ10..CVFC;KGJ10..LHD..R;KGJ10,NUJ10..N201203-201405

main53510-74020iNGJ10..6F200905-201203

main53510-74021iNGJ10..6F..N; NGJ10..RHD..R;KGJ10,NGJ10..RHD..(5F,CVFC)..N201204-201405

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iNUJ10..RHD200811-201003

BLACK,TRIM1#,4#,5#,7#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-12040iKGJ10,NGJ10,NUJ10..LHD200811-201405

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

main53630-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×4iKGJ10,NGJ10,NUJ10200811-201405

8503WINDSHIELD WASHER

→ Go to FIG 85-03

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
