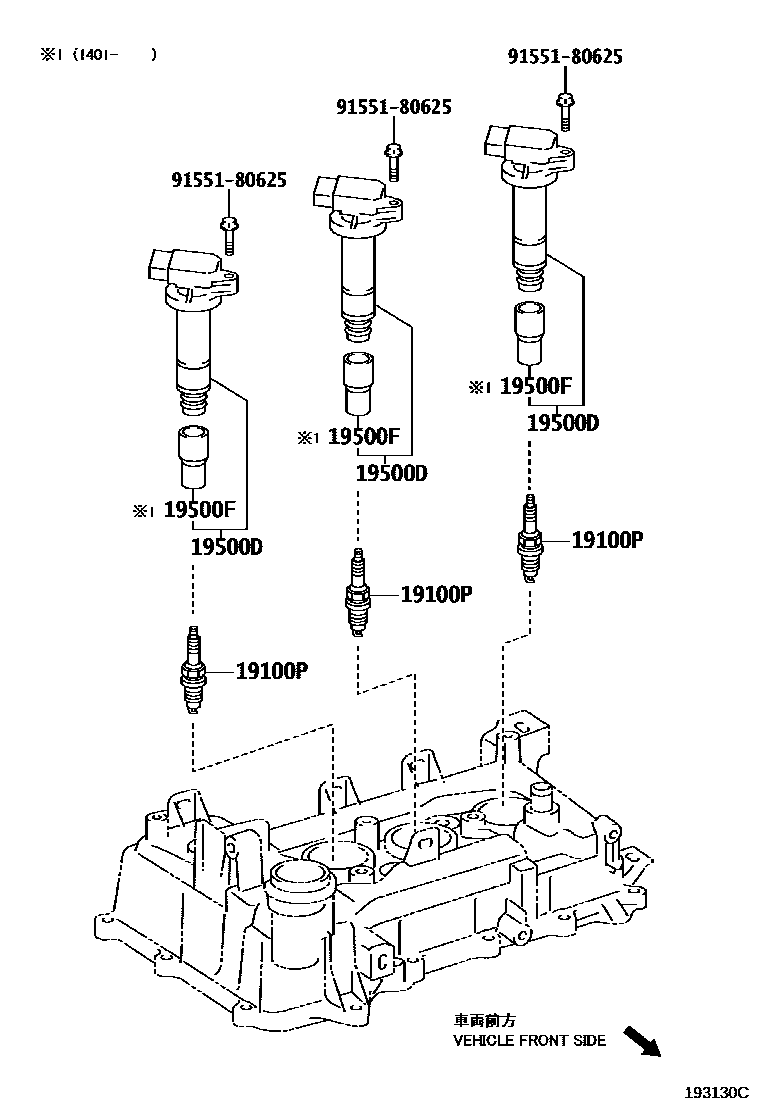

IGNITION COIL & SPARK PLUG / GLOW PLUG
IGNITION COIL & SPARK PLUG / GLOW PLUG
0001 1
0002 1
0003 1
19100P
PLUG, SPARK
main
90919-01233
×3
i
1KRFE..KGJ10
200811-201405
SK16HR11
main
90919-01253
×4
i
1NRFE..NGJ10
200905-201311
SC20HR11
main
90919-01275
×4
i
1NRFE..NGJ10
201311-201405
SC16HR11
19500D
COIL, IGNITION, NO.1
main
90919-02240
×3
i
1KRFE..KGJ10
200811-201102
main
90919-02257
×4
i
1NRFE..NGJ10
200905-201405
main
90919-02265
×3
i
1KRFE..KGJ10
201102-201405
19500F
CAP, PLUG
main
90919-11009
×3
i
1KRFE..KGJ10
201401-201405
9155180625
main
91551-80625
4 parts on this diagram · 3 diagrams in section
