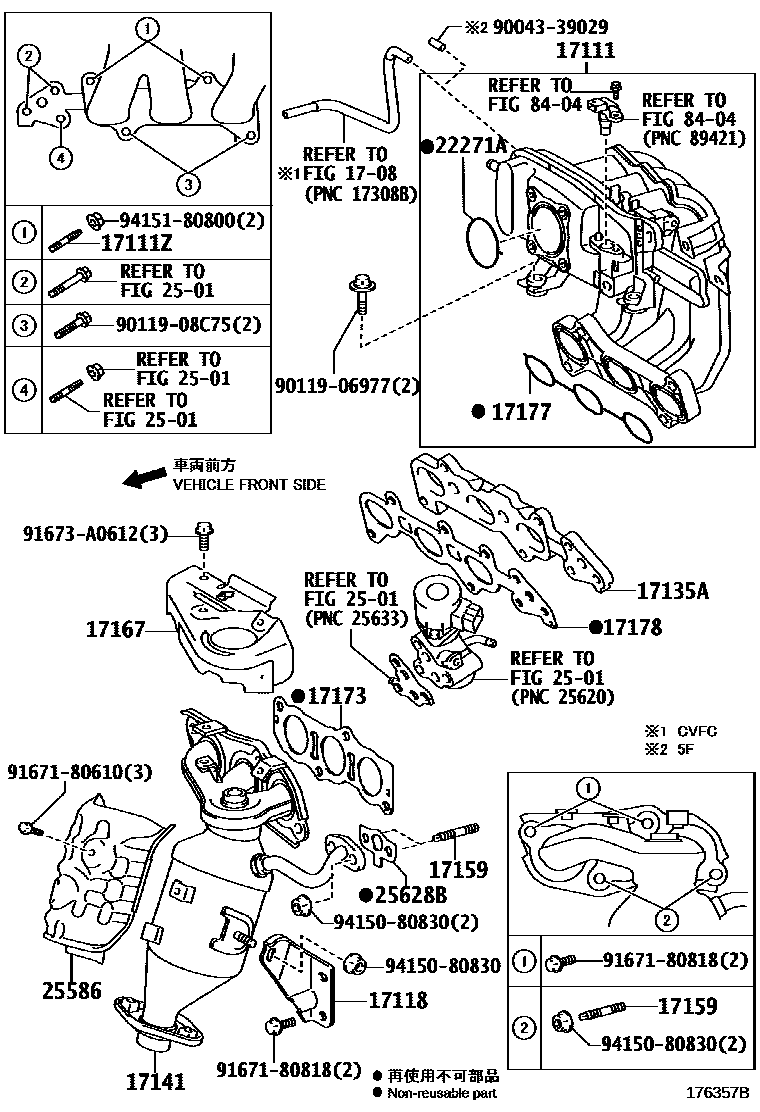

MANIFOLD
1708VACUUM PIPING
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17141MANIFOLD, EXHAUST
*114=TOYOTA/KR9/Y
*114=TOYOTA/KRB/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
2501EXHAUST GAS RECIRCULATION SYSTEM
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25628BGASKET, EGR INLET
8404ELECTRONIC FUEL INJECTION SYSTEM
9004339029
main90043-39029
9011906977
main90119-06977
9011908C75
main90119-08C75
9167180610
main91671-80610
9167180818
main91671-80818
91673A0612
main91673-A0612
9415080830
main94150-80830
9415180800
main94151-80800
24 parts on this diagram · 4 diagrams in section
