HEADLAMP

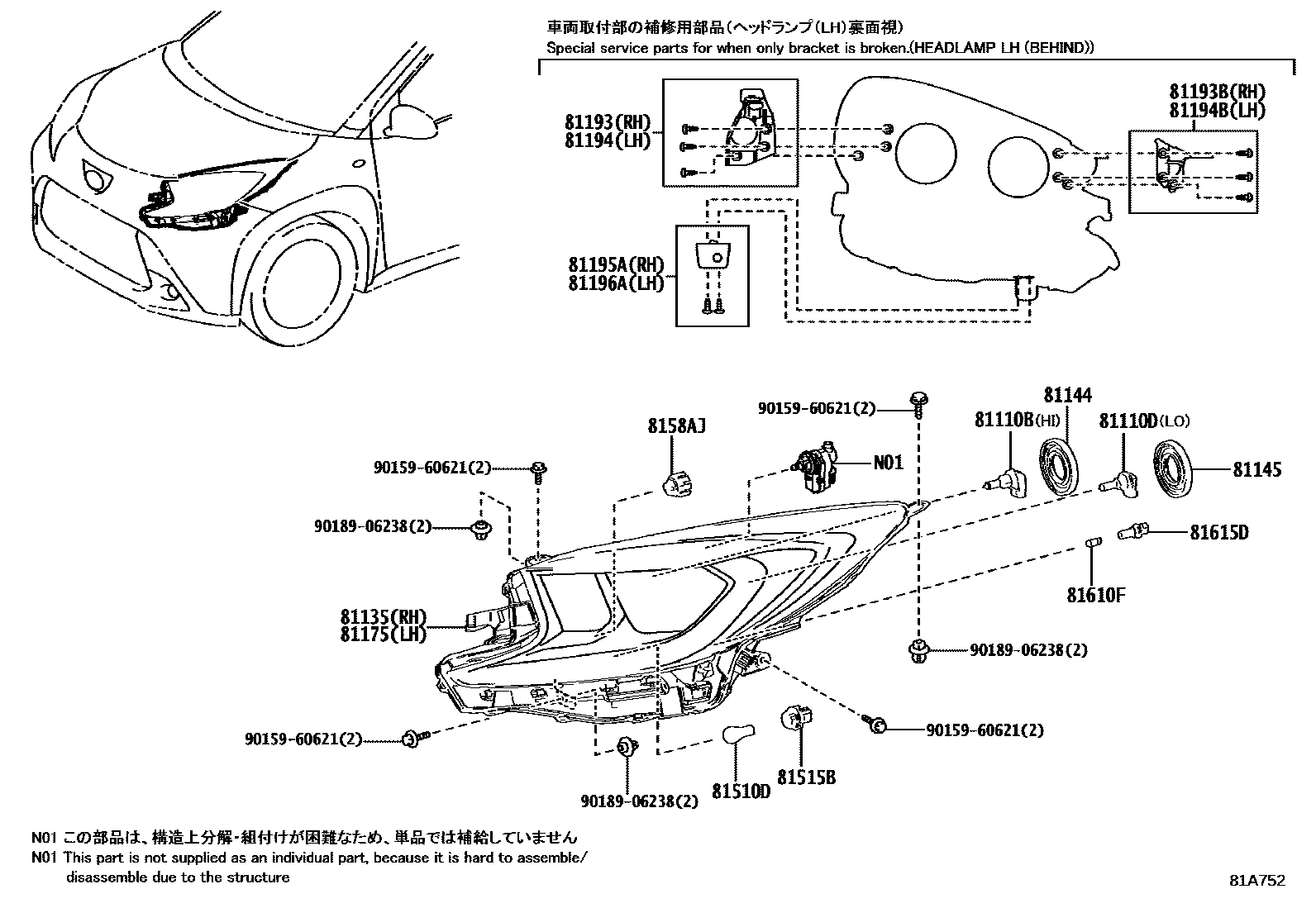

Parts diagram

81110HEADLAMP ASSY, RH

main81110-0H260i202203-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)

main81110-0H261i202312

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)

main81110-0H270i202203-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)

main81110-0H271i202312

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046i202203

12V65W(SAE),60W(ECE); 12V65W(SAE),60W(ECE),HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13085i202203-202401

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0H240i202203-202401

main81130-0H250i202203

81144COVER, HEADLAMP, NO.1

main90075-65006×2i202203-202401

81145COVER, HEADLAMP, NO.2

main90075-65006×2i202203-202401

81175UNIT ASSY, HEADLAMP, LH

main81170-0H240i202203-202401

main81170-0H250i202203

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0H070i202203-202401

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-0H080i202203-202401

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0H070i202203-202401

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-0H080i202203-202401

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-0H090i202203-202401

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-0H090i202203-202401

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15028i202203-202401

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60069×2i202203-202401

8158AJLED, DAYTIME RUNNING LAMP

main8158A-12260×2i202203-202401

TYPE A

main81965-02080×2i202412

TYPE B

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069i202203-202401

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089×2i202203-202401

9015960621

main90159-60621

9018906238

main90189-06238

20 parts on this diagram · 2 diagrams in section
