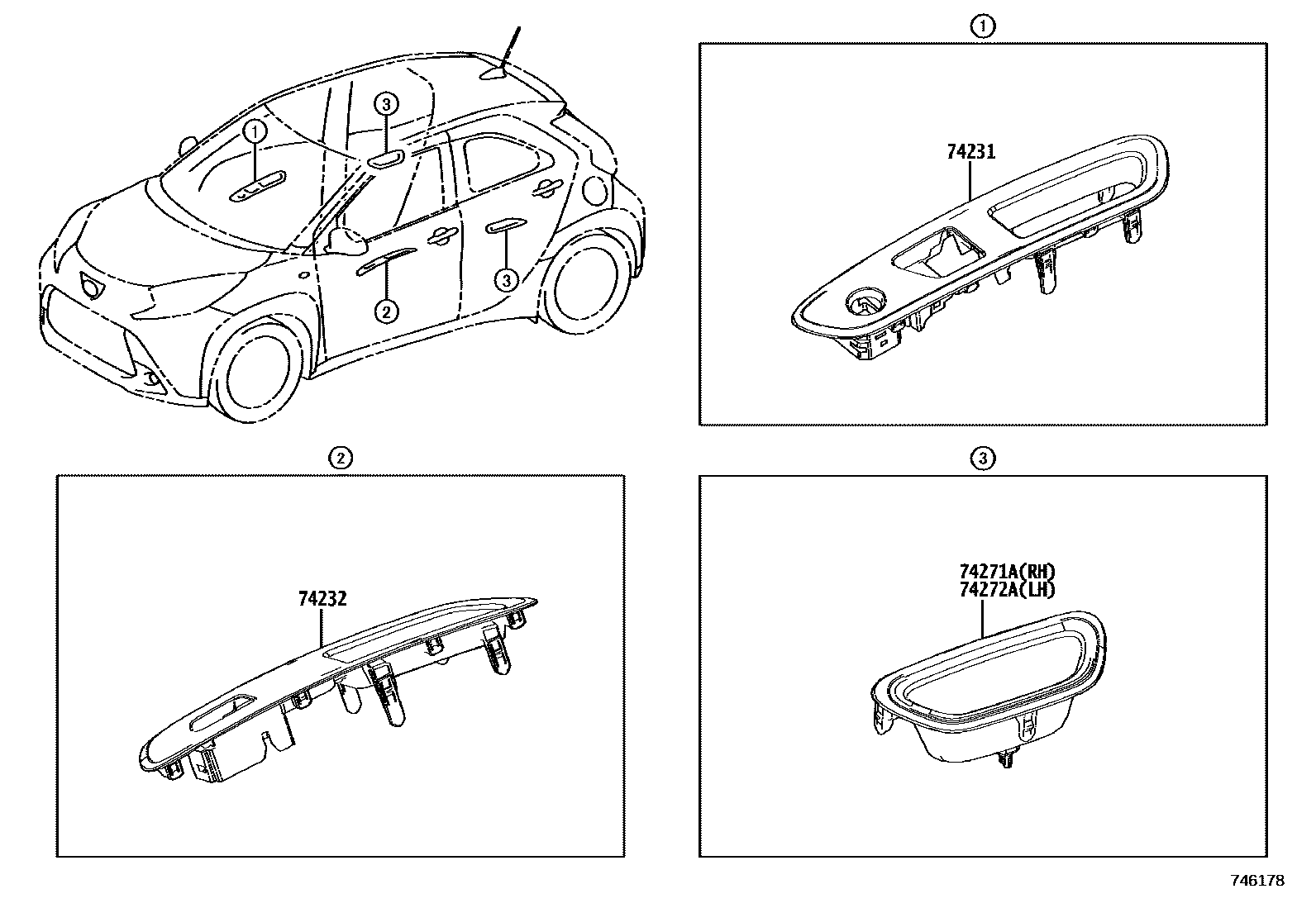

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0H040-C0iKGB70..LHD..N202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74231-0H040-C0iKGB70..LHD..K202203-202401

BLACK,TRIM2#

main74231-0H040-C0iKGB70..LHD..K202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main74231-0H050-C0iKGB70..RHD..(N,R)202203

BLACK,TRIM2#

main74231-0H050-C0iKGB70..RHD..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74231-0H050-C0iKGB70..RHD..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0H040-C0iKGB70..RHD..K202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74232-0H040-C0iKGB70..RHD..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main74232-0H040-C0iKGB70..RHD..G202203

BLACK,TRIM2#

main74232-0H050-C0iKGB70..LHD..R202203-202401

BLACK,TRIM2#

main74232-0H060-C0iKGB70..LHD..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74232-0H060-C0iKGB70..LHD..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main74232-0H060-C0iKGB70..LHD..G202203

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0H010-C0iKGB70..LHD..N;KGB70..RHD..(N,R)202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74271-0H010-C0iKGB70..LHD..R202203-202401

BLACK,TRIM2#

main74271-0H010-C0iKGB70..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0H010-C0iKGB70..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main74272-0H010-C0iKGB70..G202203-202401

BLACK,TRIM2#

main74272-0H010-C0iKGB70..K202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

4 parts on this diagram · 3 diagrams in section
