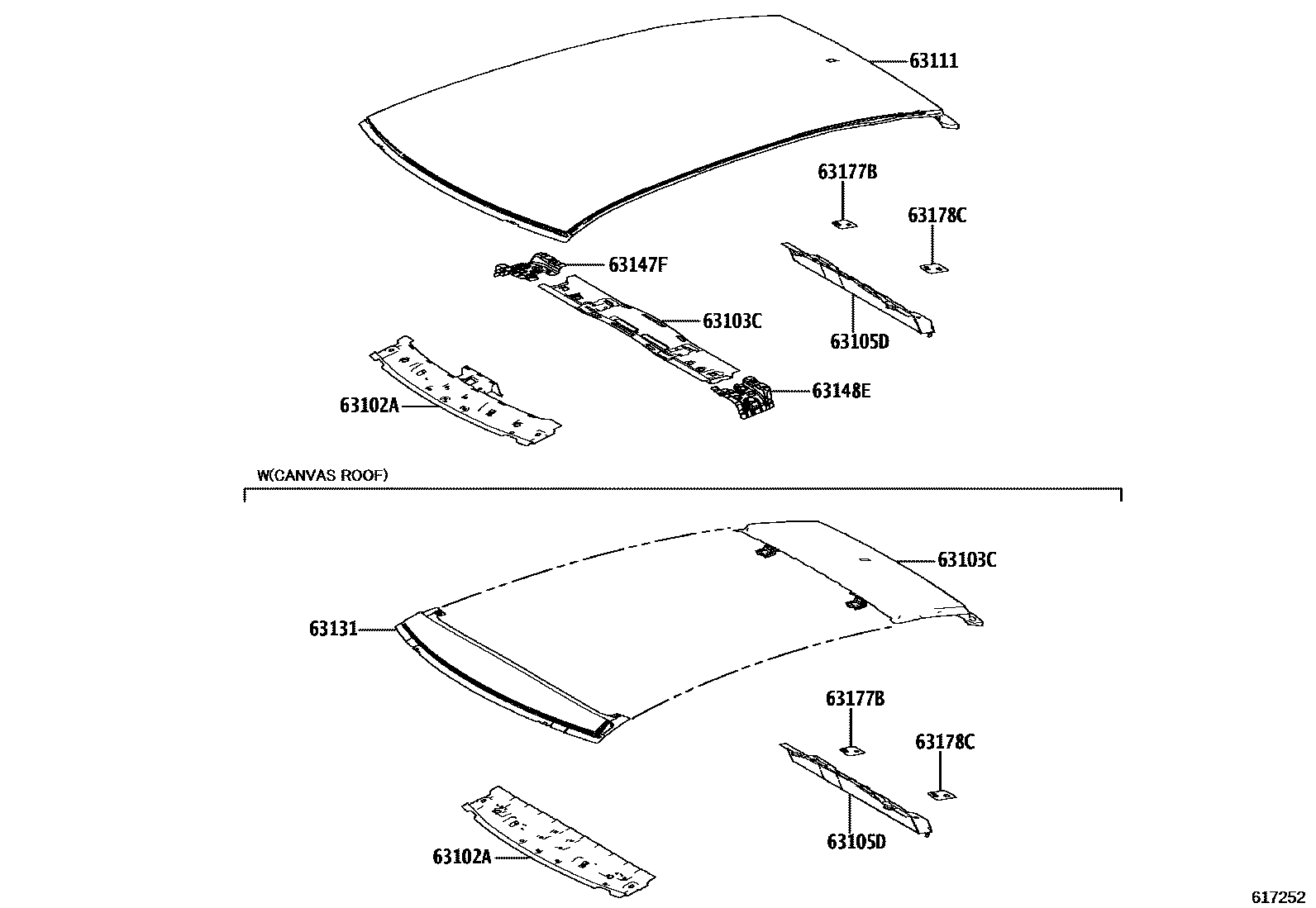

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1CANVAS ROOF HOUSING & DRAIN H0003 1CANVAS ROOF HOUSING & DRAIN H

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0H020iKGB70..LHD..R202203-202401

main63102-0H030iKGB70..G,K,N202203

MOON ROOF-WITH

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0H040iKGB70..RHD;KGB70..LHD..(G,K,N)202203

main63103-0H030iKGB70..G,K,N202203

MOON ROOF-WITH

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0H050iKGB70..LHD..R202203-202401

main63105-0H060iKGB70..G,K,N202203

MOON ROOF-WITH

63111PANEL, ROOF

main63111-0H050iKGB70..RHD;KGB70..LHD..(G,K,N)202203

63131PANEL, WINDSHIELD HEADER, OUTER

main63131-0H020iKGB70..G,K,N202203

MOON ROOF-WITH

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0H030iKGB70..LHD..R202203-202401

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63148-0H030iKGB70..LHD..R202203-202401

63177BRETAINER, BACK DOOR HINGE FEMALE, RH

main63177-K0010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

63178CRETAINER, BACK DOOR HINGE FEMALE, LH

main63178-K0010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

9 parts on this diagram · 3 diagrams in section
