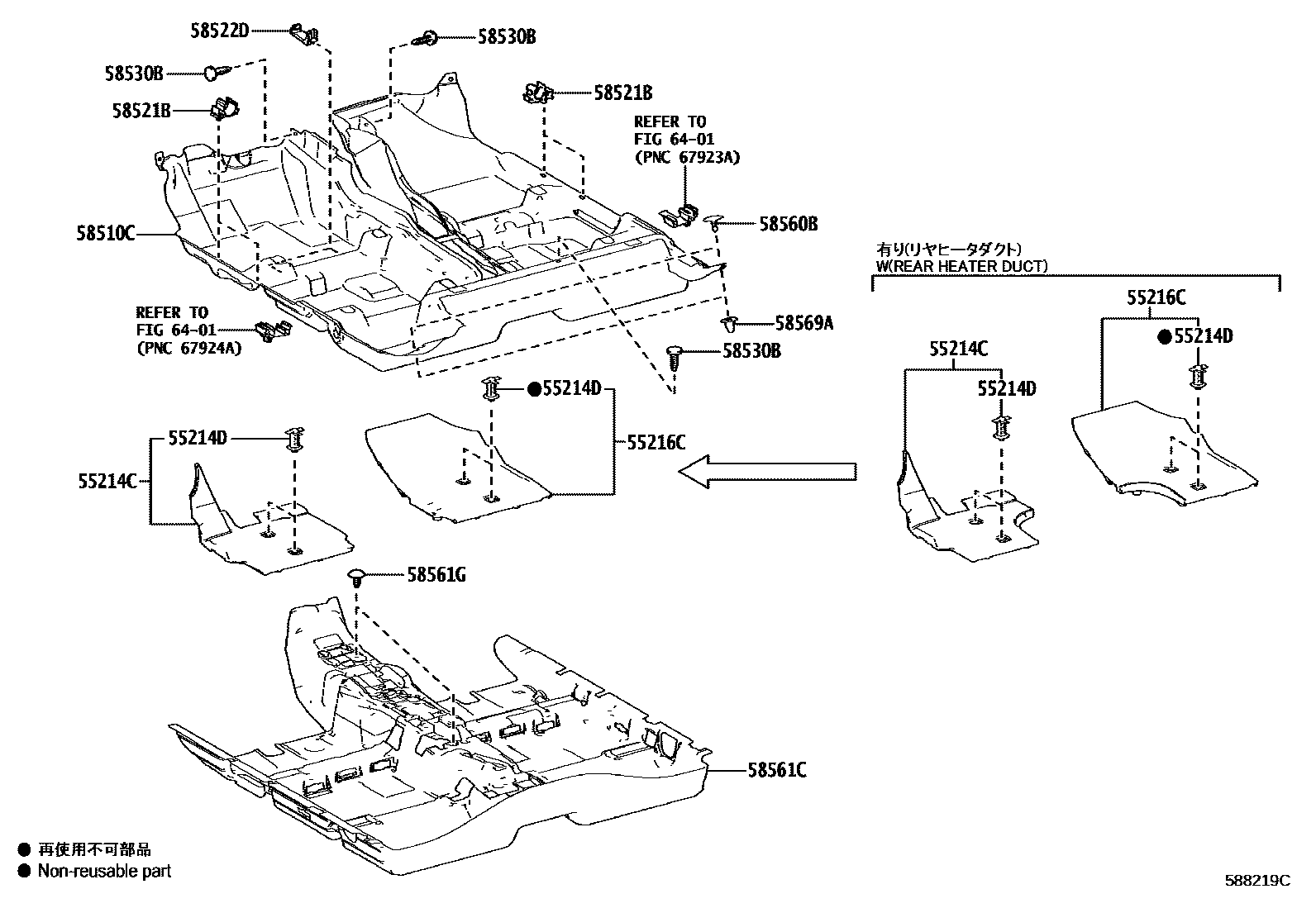

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55216CPAD, DASH PANEL INSULATOR, NO.4
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK MISTRAL,TRIM2#
BLACK MISTRAL,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK MISTRAL,TRIM0#,1#,3#,4#,5#,6#,8#
BLACK MISTRAL,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK MISTRAL,TRIM2#
BLACK MISTRAL,TRIM0#,1#,3#,4#,5#,6#,8#
BLACK MISTRAL,TRIM2#
BLACK MISTRAL,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK MISTRAL,TRIM0#,1#,3#,4#,5#,6#,8#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#
BLACK,TRIM3#,4#,6#,8#
58560BCLIP(FOR FLOOR CARPET, REAR)
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
BLACK
58569ASTOPPER, REAR FLOOR CARPET
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
12 parts on this diagram · 4 diagrams in section
