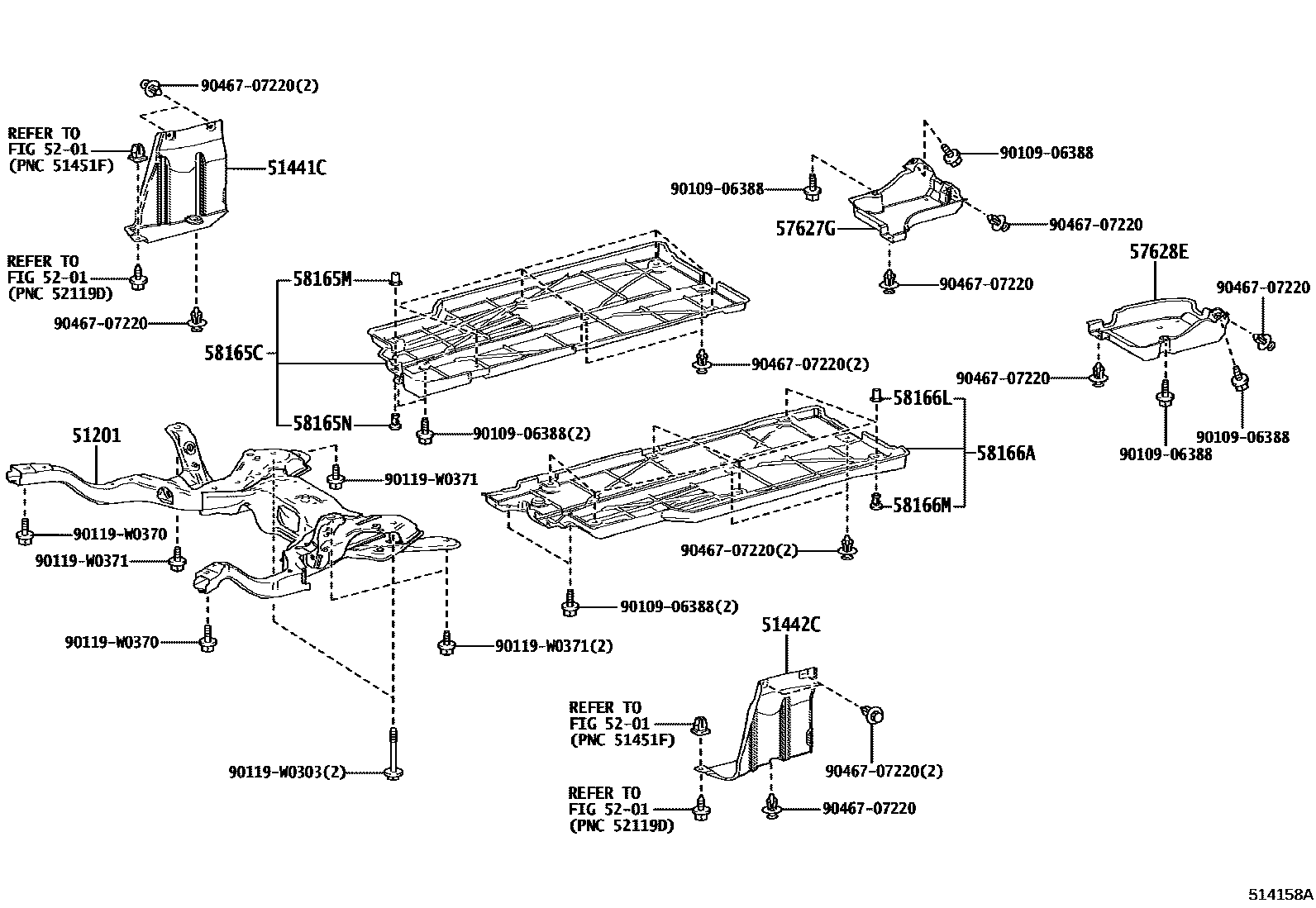

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D280iKGB70..LHD..R202203-202401

51441CCOVER, ENGINE UNDER, RH

main51441-0H020iKGB70..LHD..R202203-202401

51442CCOVER, ENGINE UNDER, LH

main51442-0H010iKGB70..LHD..R202203-202401

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

57627GCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-0H010iKGB70..LHD..R202203-202401

57628ECOVER, REAR FLOOR SIDE MEMBER, LH

main57628-0H010iKGB70..LHD..R202203-202401

58165CCOVER, FRONT FLOOR, RH

main58165-K0010iKGB70..LHD..R202203-202401

58165MCLIP, FRONT FLOOR COVER, NO.1

main90467-17026-A0×6iKGB70..LHD..R202203-202401

SUPER WHITE 2

58165NCLIP, FRONT FLOOR COVER, NO.2

main90467-17027-C0×6iKGB70..LHD..R202203-202401

BLACK

58166ACOVER, FRONT FLOOR, LH

main58166-K0010iKGB70..LHD..R202203-202401

58166LCLIP, FRONT FLOOR COVER, NO.1

main90467-17026-A0×6iKGB70..LHD..R202203-202401

SUPER WHITE 2

58166MCLIP, FRONT FLOOR COVER, NO.2

main90467-17027-C0×6iKGB70..LHD..R202203-202401

BLACK

9010906388

main90109-06388

90119W0303

main90119-W0303

90119W0370

main90119-W0370

90119W0371

main90119-W0371

9046707220

main90467-07220

17 parts on this diagram · 1 diagram in section
