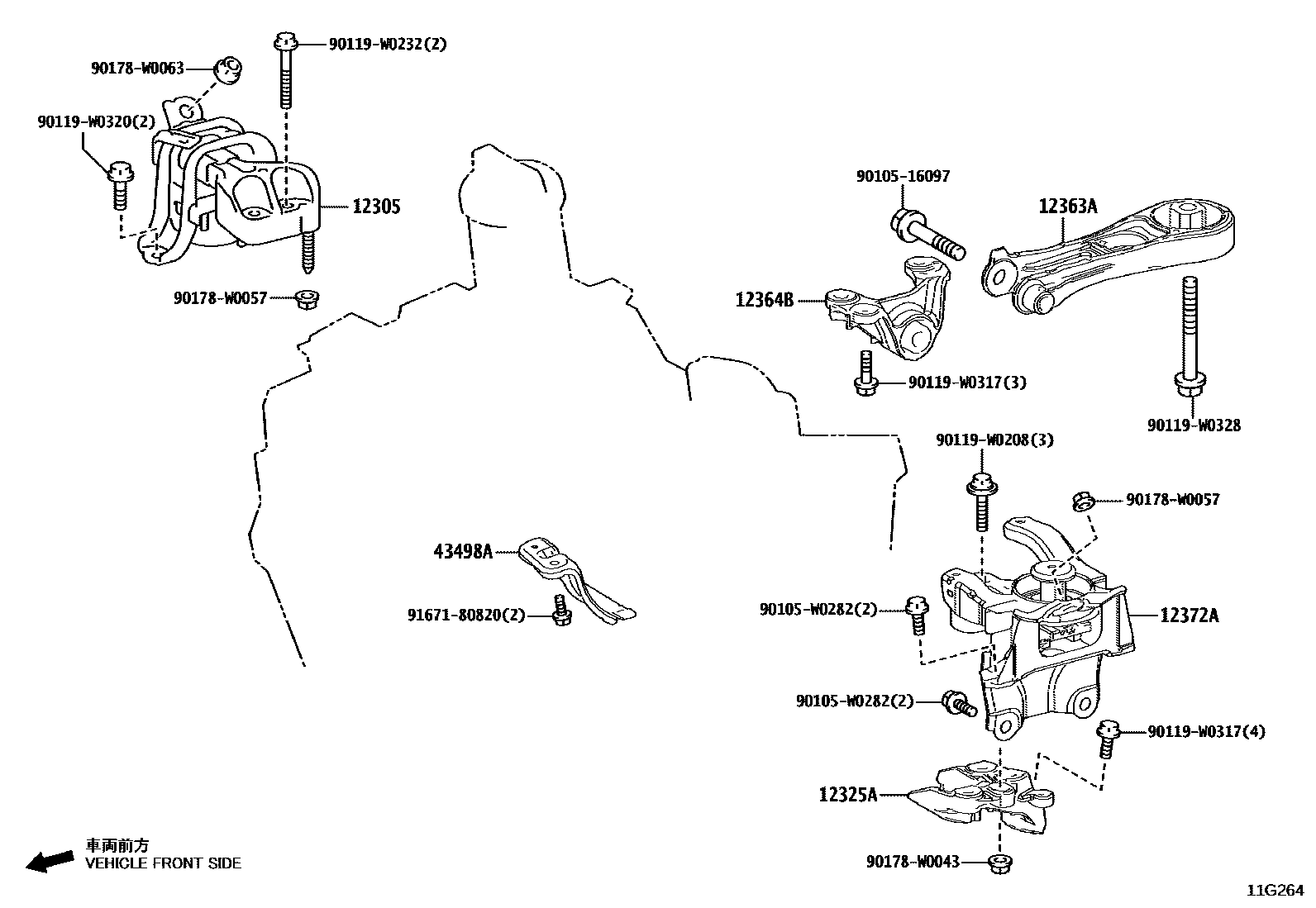

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Q070i1KRFE..KGB70..RHD..5F;1KRFE..KGB70..LHD..5F..(G,K,N)202203

main12305-0Q080i1KRFE..KGB70..CVT202203

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-K0030i1KRFE..KGB70..RHD..5F;1KRFE..KGB70..LHD..5F..(G,K,N)202203

12363AROD, ENGINE MOVING CONTROL

main12363-0Q070i1KRFE..KGB70..CVT202203

main12363-K0070i1KRFE..KGB70..LHD..R202203-202401

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0Q020i1KRFE..KGB70..CVT202203

main12364-K0090i1KRFE..KGB70..LHD..R202203-202401

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Q060i1KRFE..KGB70..LHD..R202203-202401

main12372-0Q070i1KRFE..KGB70..CVT202203

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-K0050iKGB70..LHD..R202203-202401

9010516097

main90105-16097

90105W0282

main90105-W0282

90119W0208

main90119-W0208

90119W0232

main90119-W0232

90119W0317

main90119-W0317

90119W0320

main90119-W0320

90119W0328

main90119-W0328

90178W0043

main90178-W0043

90178W0057

main90178-W0057

90178W0063

main90178-W0063

9167180820

main91671-80820

17 parts on this diagram · 2 diagrams in section
