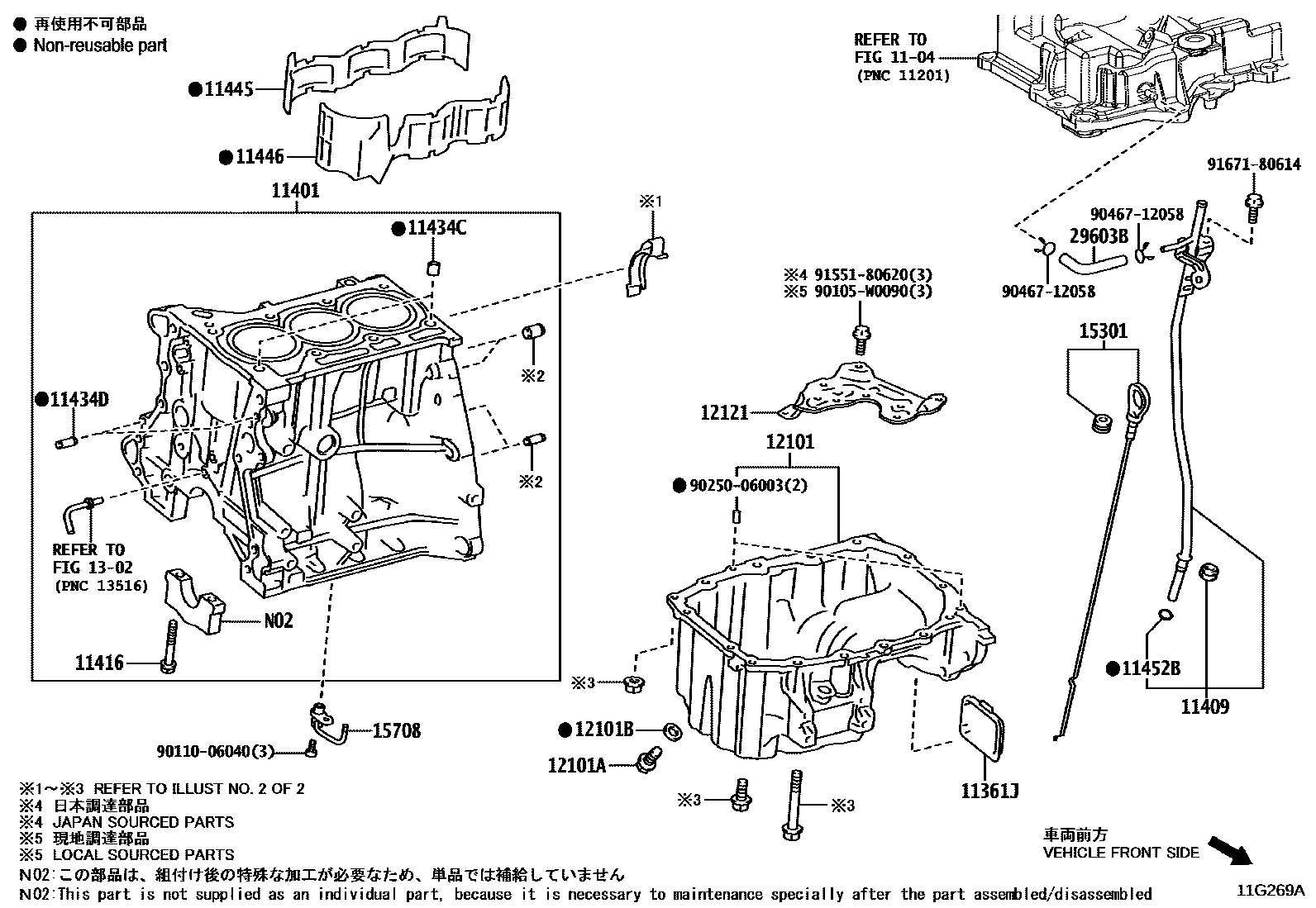

CYLINDER BLOCK

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-23020i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203

11401BLOCK SUB-ASSY, CYLINDER

main11401-0Q040i1KRFE..KGB70..LHD..R202203-202401

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0Q020i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531×8i1KRFE..KGB70..LHD..R202203-202401

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-12002×2i1KRFE..KGB70..LHD..R202203-202401

L=12,OD=12

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×4i1KRFE..KGB70..LHD..R202203-202401

L=14,OD=6

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-40030i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-40010i1KRFE..KGB70..LHD..R202203-202401

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KGB70..LHD..R202203-202401

12101PAN SUB-ASSY, OIL

main12101-0Q050i1KRFE..KGB70..LHD..R202203-202401

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i1KRFE..KGB70..LHD..R202203-202401

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43037i1KRFE..KGB70..LHD..R202203-202401

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Q040i1KRFE..KGB70..LHD..R202203-202401

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Q050i1KRFE..KGB70..LHD..R202203-202401

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-40010×3i1KRFE..KGB70..LHD..R202203-202401

29603BHOSE, OIL(FOR OIL LEVEL GAUGE GUIDE)

main29603-40010i1KRFE..KGB70..LHD..R202203-202401

90105W0090

main90105-W0090

9011006040

main90110-06040

9025006003

main90250-06003

9046712058

main90467-12058

9155180620

main91551-80620

9167180614

main91671-80614

24 parts on this diagram · 2 diagrams in section
