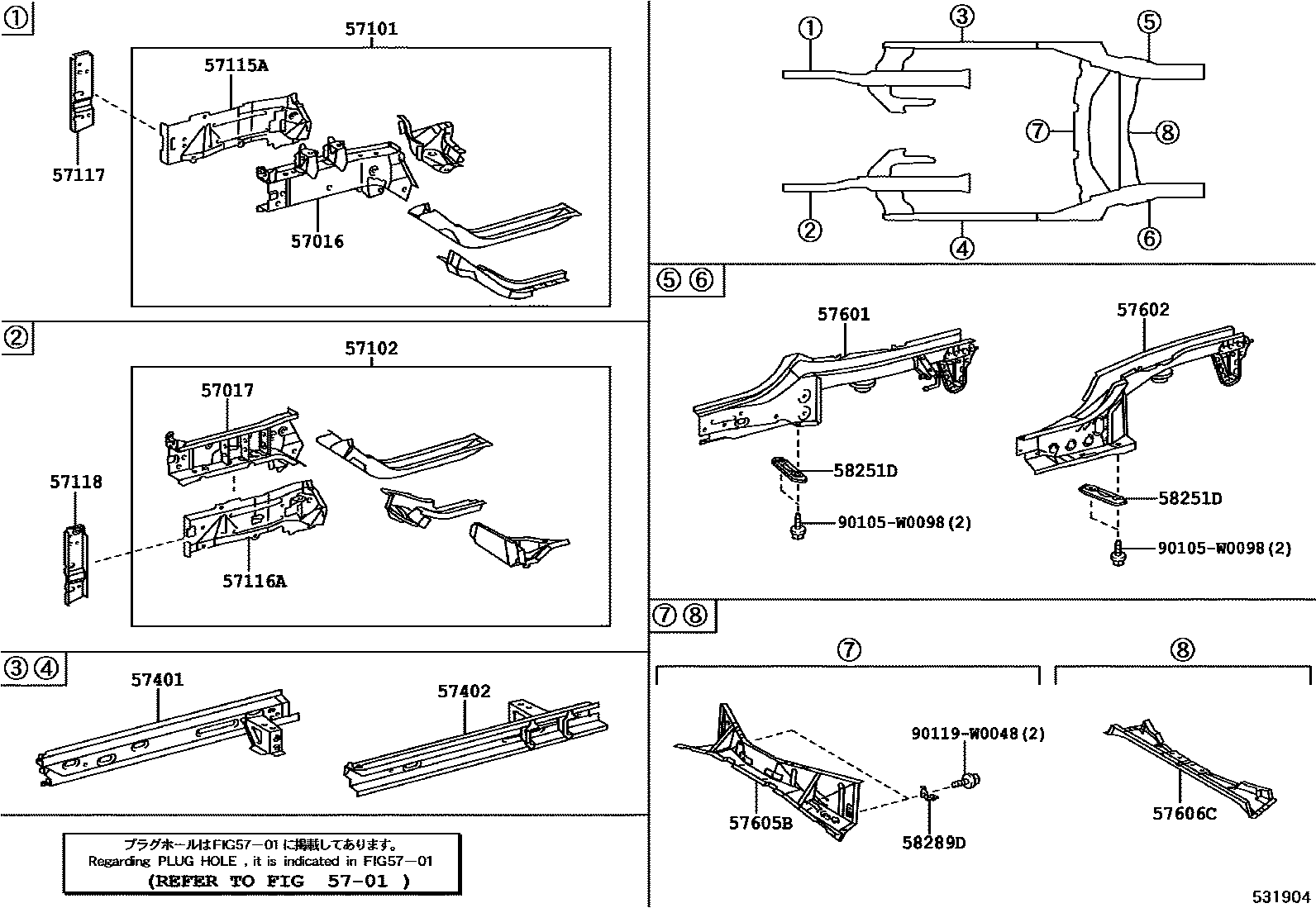

FLOOR SIDE MEMBER

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0H010iKGB10,WNB10200502-201202

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0H010iKGB10,WNB10200502-200608

main57017-0H011iKGB10,WNB10200609-201202

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0H010iKGB10,WNB10200502-201406

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0H010iKGB10,WNB10200502-200608

main57102-0H011iKGB10,WNB10200609-201406

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-0H010iKGB10,WNB10200502-201202

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-0H010iKGB10,WNB10200502-201202

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-0H010iKGB10,WNB10200502-201406

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-0H010iKGB10,WNB10200502-201406

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-0H010iKGB10,WNB10200502-201105

main57401-0H011iKGB10201110-201406

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-0H010iKGB10,WNB10200502-201105

main57402-0H011iKGB10201110-201406

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0H010iKGB10,WNB10200502-201202

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0H010iKGB10,WNB10200502-200908

main57602-0H020iWNB10200908-201202

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0H010iKGB10,WNB10200502-201202

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0H010iKGB10,WNB10200502-201202

58251DBRACE, FLOOR PANEL, FRONT

main58251-0H010iKGB10,WNB10200502-201202

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0H010iKGB10,WNB10200502-201202

90105W0098

main90105-W0098

90119W0048

main90119-W0048

19 parts on this diagram · 1 diagram in section
